Brand: Blue Sea Systems

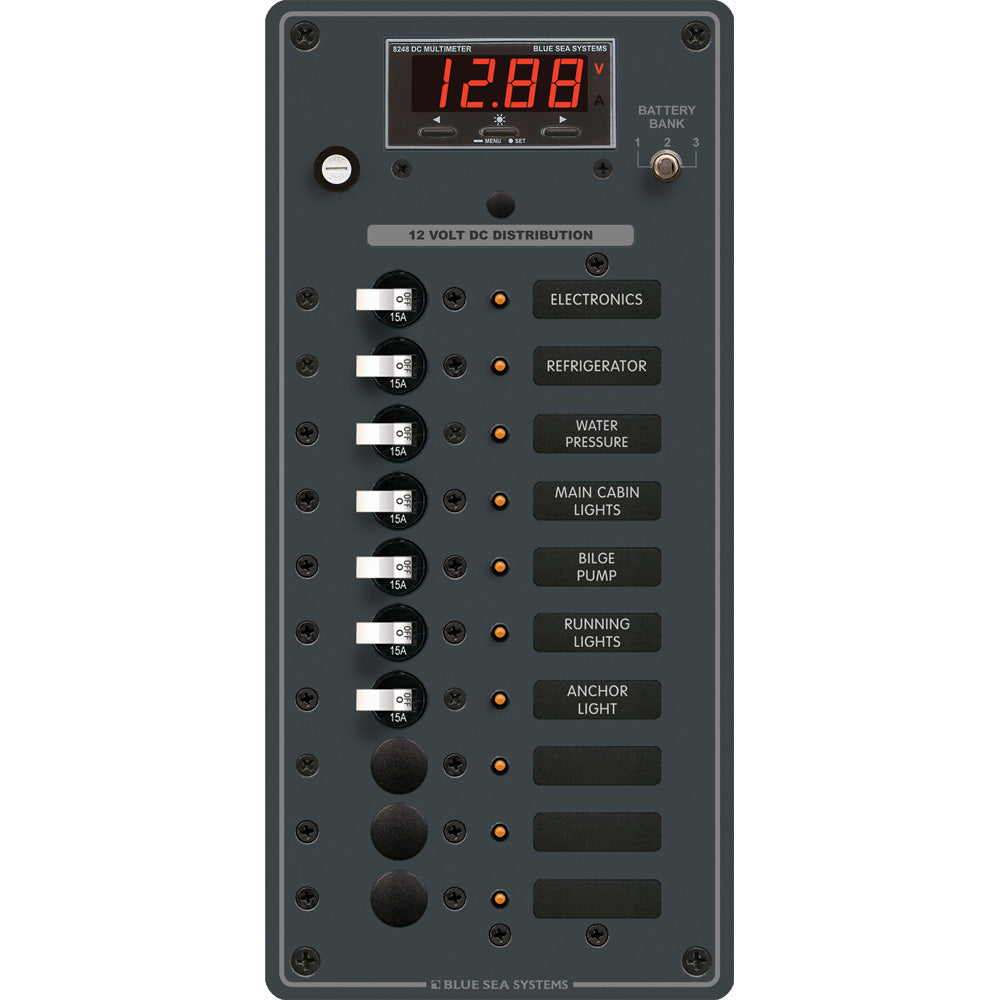

Blue Sea Systems 8402 10-Position DC Electrical Panel with Multi-Function Meter
Blue Sea Systems 8402 10-Position DC Electrical Panel with Multi-Function Meter
Sold out
The Blue Sea Systems 8402 is a 10-position DC electrical panel designed for 12V or 24V marine and vehicle systems. This fully pre-wired panel features integrated positive, negative, and grounding buses for simplified installation.
- Voltage: 12V DC or 24V DC
- Amperage: 100A
- Metering: Multi-function meter with toggle switch for monitoring up to 3 battery banks
- Construction: 1/8" 5052 aluminum alloy with a slate gray, two-part polyurethane finish and MIL-C-5541C immersion undercoating for corrosion resistance
- Circuit Features: Backlit label positions and "ON" indicating LEDs for every position
- Included: Set of 30 common large-format panel labels, installation instructions, and a cutout template
- Design: Countersunk mounting holes with industry-standard dimensions
- Regulatory note: This product contains di(2-ethylhexyl)phthalate (DEHP), a chemical known to the State of California to cause cancer, birth defects, or other reproductive harm.
Analog meters on this panel are owner-upgradable to 24V using Blue Sea 8240 or 8243 meters.
Product facts
- CT SKU
- CT-100617
- Model / MPN
- 8402
- UPC / GTIN
- 632085084028
- Package dimensions
- 6" X 10" X 12"
- Package weight
- 4.0 lb
- Specifications
- Voltage = 12/24v\nMax Breaker Quantity = 10\nAC/DC = DC
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
