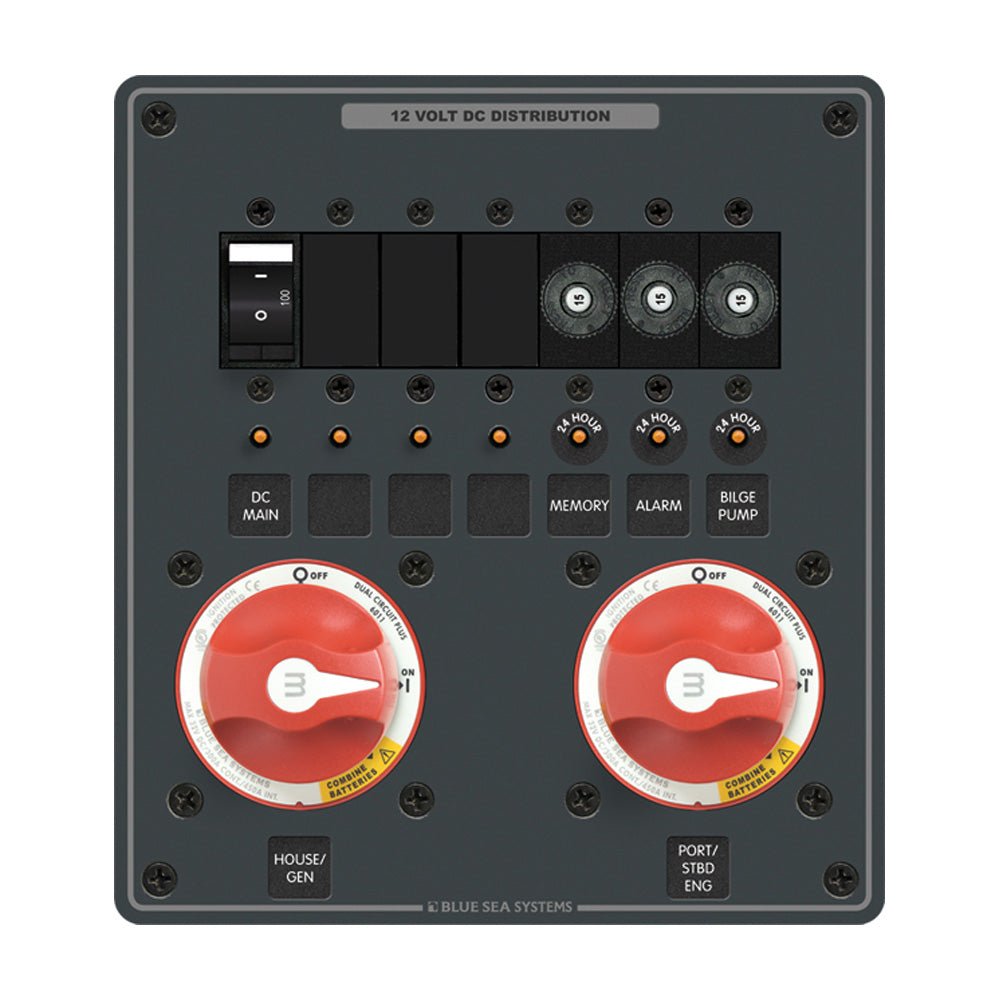

Blue Sea Systems 8689 Triple Battery Management Panel, 300A, Ignition Protected

Master your marine power system with the Blue Sea Systems 8689 Triple Battery Bank Management Panel. Engineered for superior reliability and control, this comprehensive panel simplifies battery management for complex twin-engine and house bank configurations. It provides robust circuit protection and intelligent isolation, ensuring your essential systems remain powered and protected. Upgrade to Blue Sea Systems for peace of mind on the water.

In the Box:

• (2) Blue Sea Systems m-Series Mini Dual Circuit Plus™ Battery Switches (PN 6011)
• (3) Blue Sea Systems Push Button Reset Only Quick Connect Circuit Breakers - 15A (PN 7056)
• (1) Blue Sea Systems C-Series Flat Rocker Circuit Breaker - Single Pole 100A (PN 7549)
• (1) Blue Sea Systems 4218 Square Format Labels
• (1) Blue Sea Systems 4140 24 Hour Round Labels

Key Features & Benefits:

• Triple Battery Bank Management: Efficiently manages up to three battery banks, ideal for twin-engine vessels and comprehensive house systems.
• Isolated Circuitry: Isolates engine and house circuits to prevent accidental discharge of your starting batteries and protect sensitive electronics.
• Emergency Cross-Connect: Allows for emergency parallel combining of battery banks, providing critical power when you need it most.
• 24-Hour Circuit Protection: Ensures continuous protection for essential systems, enhancing safety and reliability on board.
• Voltage Spike Protection: Safeguards electronics from damaging voltage sags and spikes during engine cranking.
• Ignition Protected Design: Certified safe for installation aboard gasoline-powered boats, meeting UL 1500 and SAE J1171 standards.
• High Continuous Rating: Delivers a 300A continuous rating, suitable for demanding marine applications.
• Robust Construction: Features tin-plated copper studs for maximum conductivity and corrosion resistance, ensuring long-term durability in harsh marine environments.

Specifications:

• Nominal Voltage: 12V DC / 24V DC
• Maximum Voltage: 32V DC
• Continuous Rating: 300A
• Intermittent Rating (5 min): 450A
• Cranking Rating (10 sec): 1000A
• Cranking Rating (30 sec - per 6011 switch): 675A
• Regulatory Compliance: UL 1500, SAE J1171, CE Marked, ISO 8846, ABYC Compliant, IP66 (switches)
• Panel Dimensions (H x W x D): 7.25" x 7.25" x 3.25" (184.15 mm x 184.15 mm x 82.55 mm)
