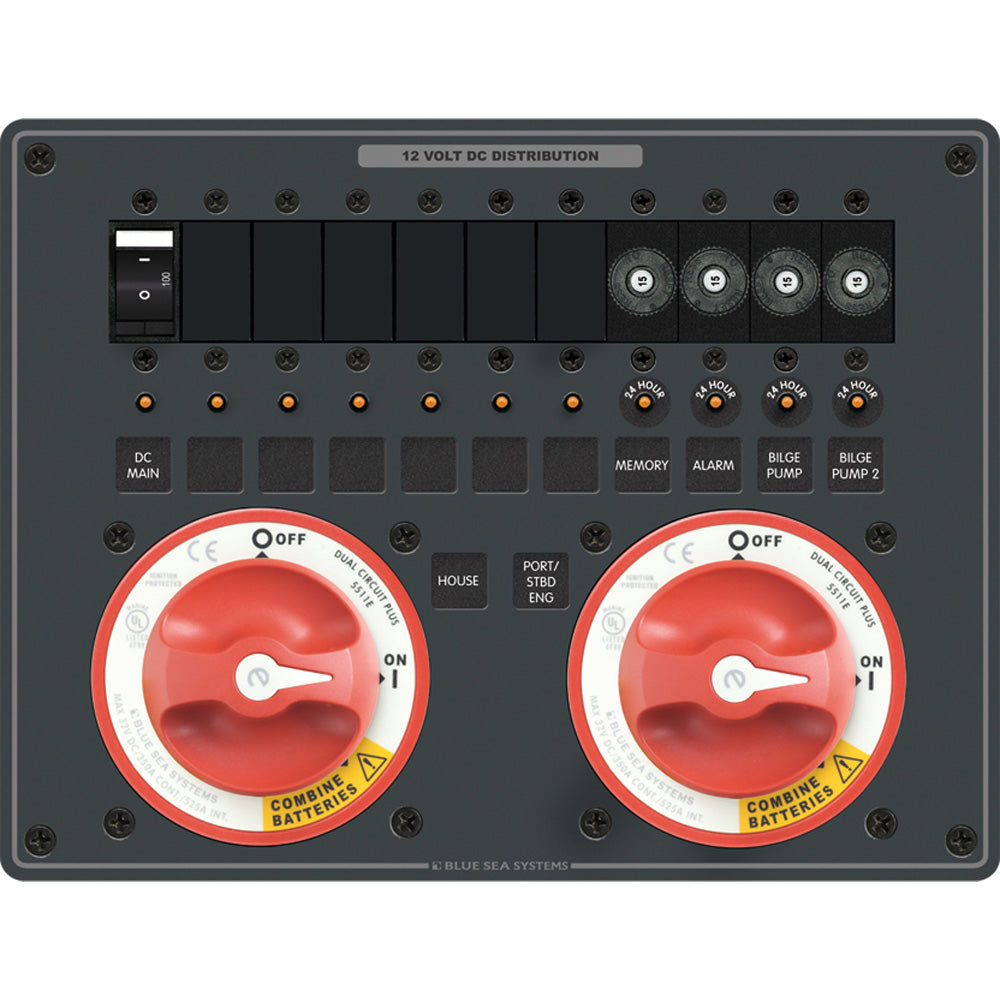

Blue Sea Systems 8693 Triple Battery Bank Management Panel, 350A

Gain complete command over your vessel's power distribution with the Blue Sea Systems 8693 Triple Battery Bank Management Panel. Engineered for twin-engine configurations, this comprehensive panel integrates an e-Series Dual Circuit Plus Battery Switch with essential circuit breakers to isolate engine and house circuits, protect sensitive electronics from cranking events, and provide critical 24-hour circuit protection. Seamlessly manage your battery banks and ensure reliable power for all your marine systems. Upgrade your vessel's electrical intelligence today.

In the Box:

• Blue Sea Systems 8693 Management Panel
• (1) 100A C-Series Flat Rocker Circuit Breaker
• (4) 15A Push Button Thermal Circuit Breakers
• Square Format Labels (4218)
• 24 Hour Round Labels (4140)

Key Benefits & Specifications:

• Robust Power Handling: Features a 350A continuous rating per circuit for sustained, high-power demands and 700A (30 sec) cranking rating to ensure reliable engine starts.
• Advanced Circuit Protection: Includes one 100A C-Series Flat Rocker Circuit Breaker and four 15A Push Button Thermal Circuit Breakers to safeguard all your critical systems.
• Dual Circuit Plus™ Functionality: Isolates engine and house circuits, allowing for independent battery discharge while protecting electronics from voltage sags and spikes during engine cranking.
• Emergency Cross-Connect: Enables emergency combining of isolated battery banks for reliable starting in critical situations.
• Ignition Protected: Certified safe for installation aboard gasoline-powered boats, minimizing the risk of fire.
• Marine-Grade Durability: Constructed with tin-plated copper studs for maximum conductivity and corrosion resistance, and rated IP66 for protection against dust and heavy seas.
• Industry Compliance: Meets UL 1500, SAE J1171, ABYC, CE, ISO 8846, and UL 1107 electric power switch requirements, ensuring top-tier safety and performance.
• Flexible Mounting: Case design supports both surface or rear panel mounting for versatile installation options.

Recommended Pairings: Automate your battery charging by integrating this panel with a Blue Sea Systems Automatic Charging Relay.
