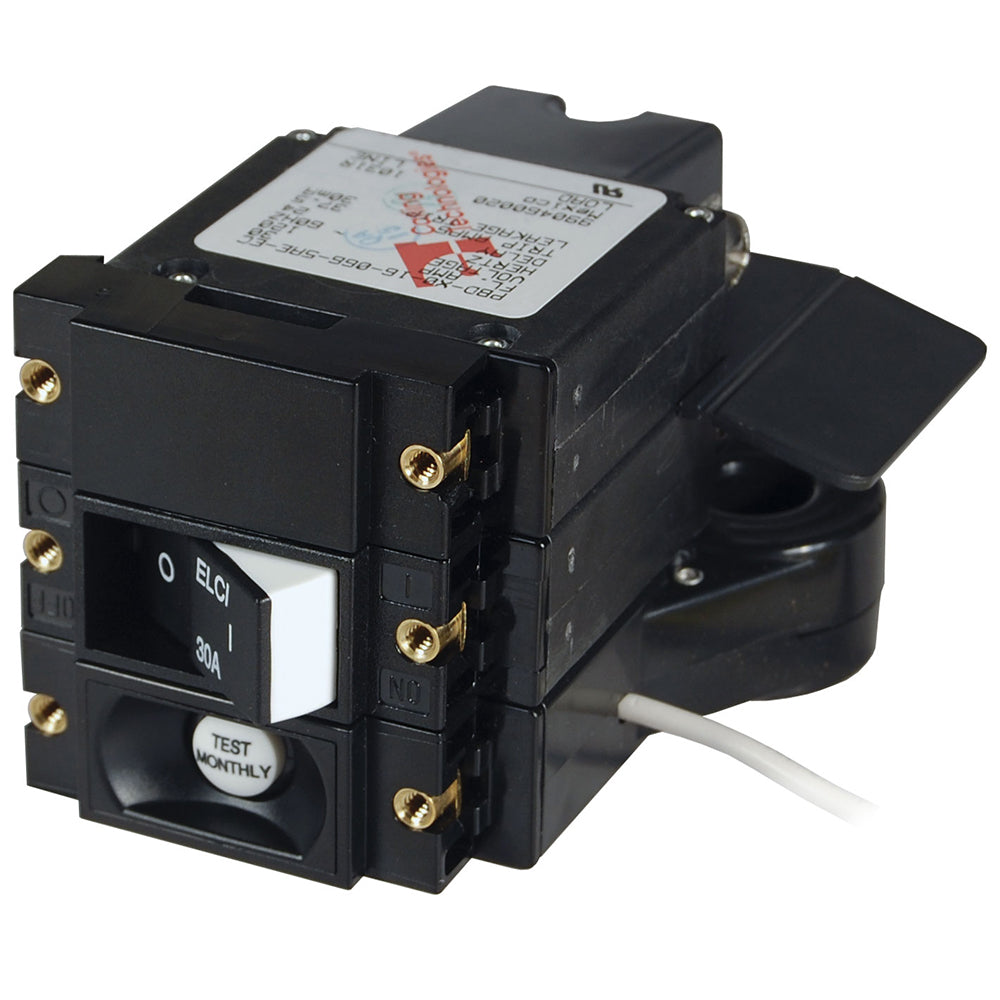

Blue Sea Systems A-Series ELCI Main Circuit Breaker, 120V AC 30A

Ensure critical protection and compliance for your marine electrical system with the Blue Sea Systems A-Series ELCI Main Circuit Breaker. Engineered to provide comprehensive overcurrent and leakage protection, this breaker meets ABYC E-11 for whole boat shore power, safeguarding both your vessel and its occupants. Its robust design also satisfies UL 1500 external ignition protection requirements, making it ideal for demanding marine environments. Upgrade your electrical safety with this essential component today.

Key Benefits & Specifications:

• ABYC E-11 Compliant: Provides crucial overcurrent and leakage protection for whole boat shore power, enhancing safety onboard.
• UL 1500 Ignition Protected: Meets external ignition protection requirements, ensuring safe operation in engine compartments and other sensitive areas.
• 30 Amp Double Pole: Delivers robust power management and protection for 120V AC electrical systems.
• 30mA Leakage Trip: Rapidly detects and isolates dangerous ground faults (equipment leakage current), significantly reducing the risk of electric shock for swimmers and passengers.
• 5000A Interrupt Capacity: Offers high-level protection against severe short circuits, preventing damage to your electrical system.
• Magnetic Hydraulic, Trip-Free Mechanism: Guarantees reliable tripping on short circuit, overload, or leakage to ground, and prevents the breaker from being held in the ON position during a fault.
• Wide Operating Temperature: Performs reliably in extreme conditions, with a minimum operating temperature of -35°C and a maximum of 66°C.
• Front Panel Mount: Designed for easy integration and installation within power distribution panels.

Recommended Pairings:

• Compatible with Blue Sea Systems 360 panels for integrated power distribution.
• Also suitable for use with Blue Sea Systems SMS enclosures.
