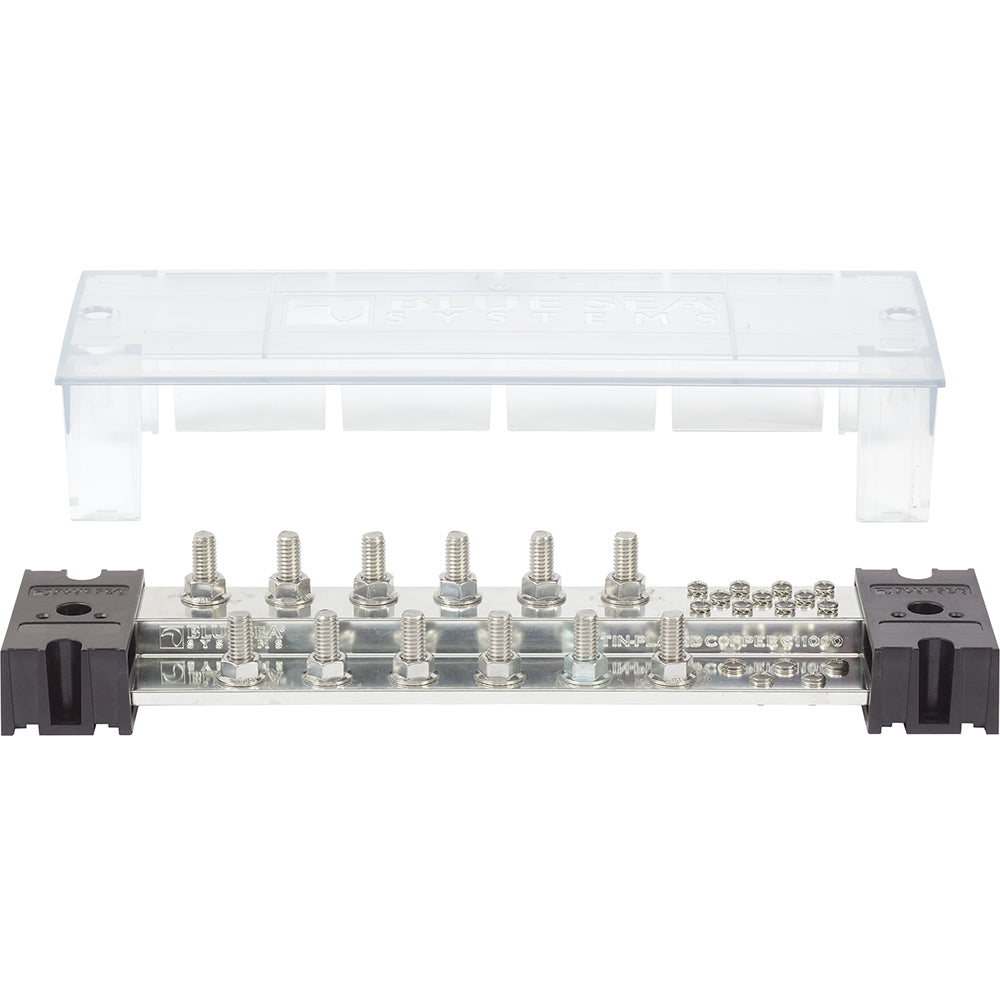

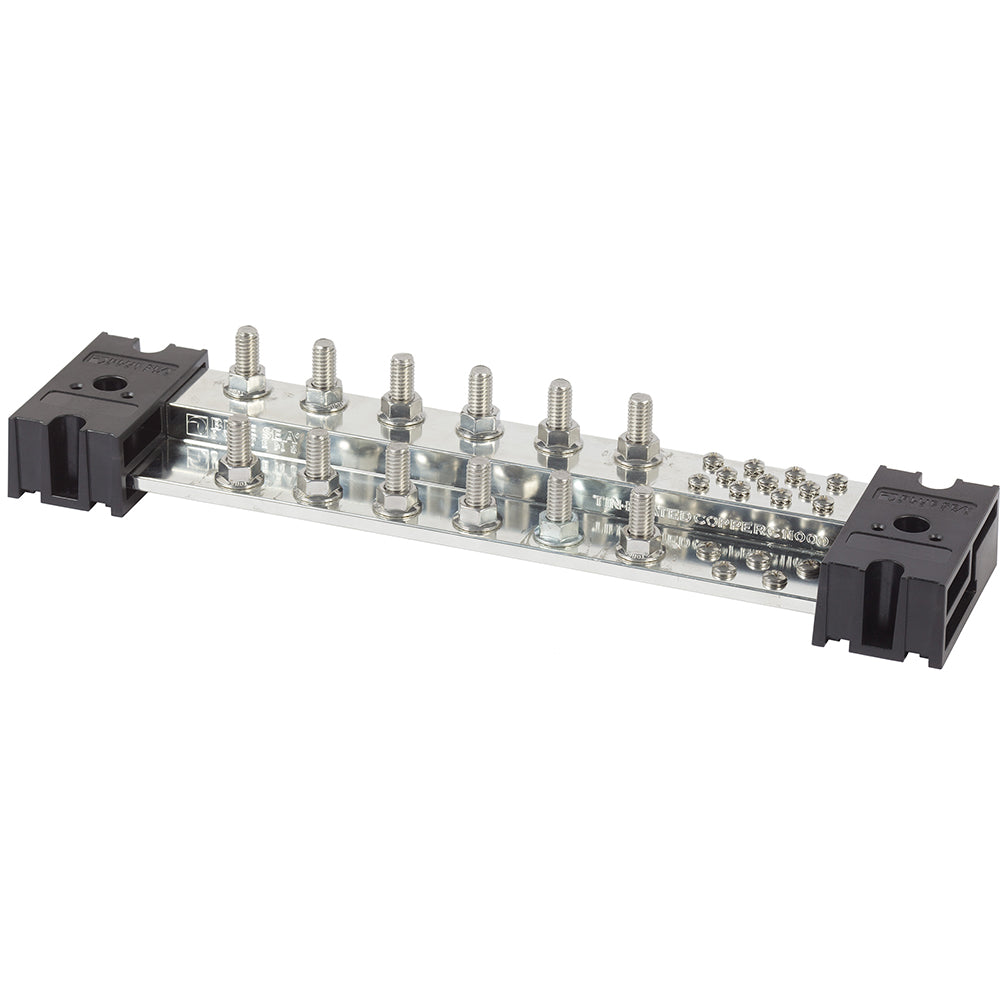

Blue Sea Systems PowerBar 1000, 12 x 3/8" Terminal Studs with Cover

Consolidate complex wiring systems efficiently and safely with the Blue Sea Systems PowerBar 1000. Engineered for demanding electrical applications, this robust busbar offers a high-amperage, single point for connecting both large and small conductors, simplifying your setup. Its innovative design and superior materials ensure maximum conductivity and long-term reliability in marine and mobile environments. Upgrade your power distribution with confidence today.

In the Box:

• Blue Sea Systems PowerBar 1000 Busbar
• 12 x 3/8"-16 Stainless Steel Swedged Terminal Studs with One-Piece Serrated Flange Nuts
• 11 x #8-32 Stainless Steel Screws with Captive Lock Washers
• 5 x #10-24 Stainless Steel Screws with Captive Lock Washers
• Snap-on Insulating Cover

Key Features & Benefits:

• High 1000A Continuous Rating: Safely handles power for large, complex wiring systems and high-capacity battery banks.
• Optimal Conductivity: Features a tin-plated pure electrical copper busbar (C11000) for maximum current flow and superior corrosion resistance.
• Advanced Stepped Bus Design: Offers two elevations for conductors, effectively doubling wire loom density and simplifying wire management compared to traditional busbars.
• Integrated Fuse Block Alignment: Busbar and fuse block elevations are matched, allowing for direct attachment of common fuse blocks without requiring additional connecting cables.
• Secure Terminal Connections: Equipped with one-piece serrated flange nuts for 3/8" studs and captive lock washers on #8-32 and #10-24 screws, ensuring correct, secure connections for all wire gauges.
• ABYC and USCG Compliant Cover: Includes a snap-on insulating cover that protects terminal studs from accidental contact and cross-current shorts, meeting stringent safety standards and featuring a label recess for clear identification.
• Versatile Design: Bi-directional end caps allow for ganging multiple PowerBar units or cutting the busbar to a shorter length for constricted spaces.
• High Operating Voltage: Supports a maximum operating voltage of 150V AC/DC.
• Durable Construction: Base made from UL 94-V0 Rated, Glass Reinforced Thermoplastics for exceptional resilience.

Recommended Applications:

• Ideal for centralizing DC grounds or positive conductors on larger boats.
• Excellent for paralleling large lithium battery banks, ensuring efficient power distribution.
