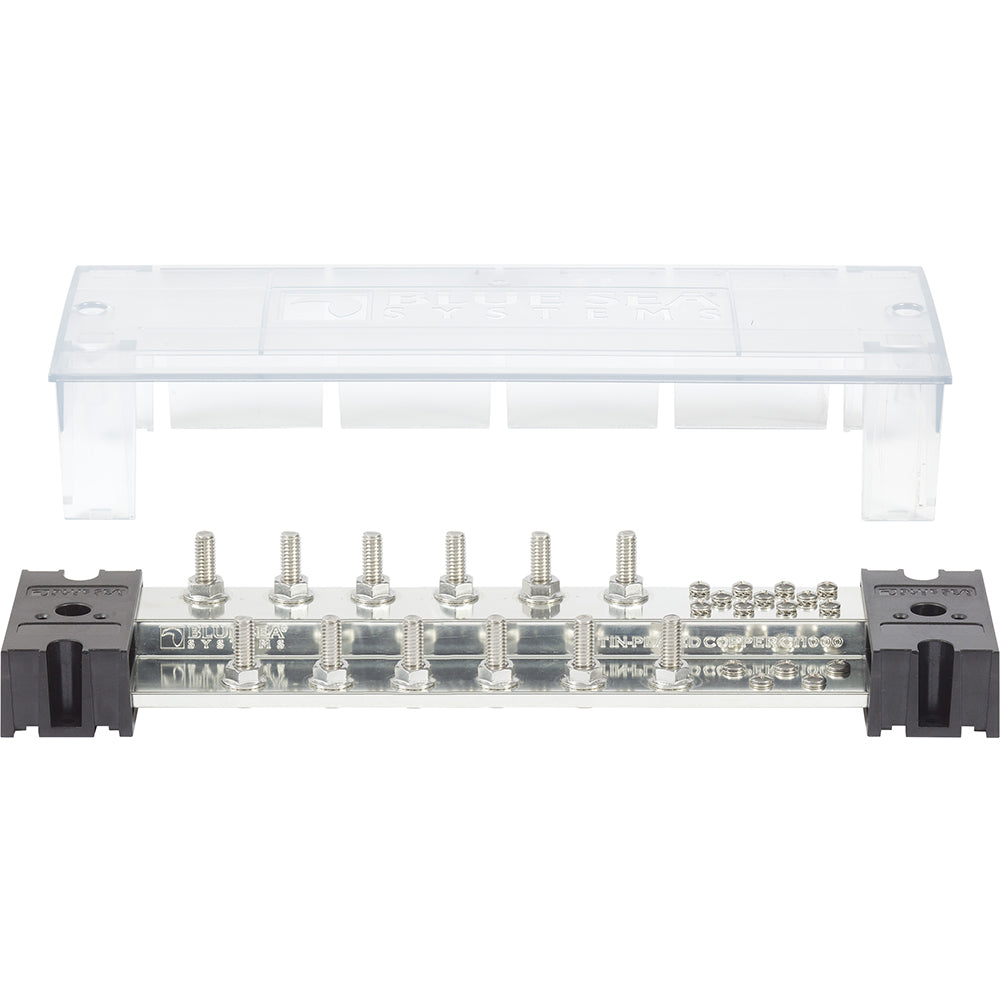

Blue Sea Systems PowerBar 1000, 12 x 5/16" Studs, 1000A, ABYC & USCG Compliant

Consolidate and organize complex wiring systems with the Blue Sea Systems PowerBar 1000. Engineered for high-amperage applications, this busbar is an ideal solution for centralizing DC grounds or positive conductors on larger boats and in various electrical setups. Its innovative design combines large and small conductors, simplifying installation and optimizing your electrical footprint. Trust in Blue Sea Systems' commitment to quality and safety, backed by ABYC and USCG compliance. Streamline your electrical setup today!

In the Box:

• Blue Sea Systems PowerBar 1000 Busbar with 12 x 5/16" Terminal Studs
• Snap-on Insulating Cover
• One-piece Serrated Flange Nuts
• Stainless Steel 8-32 Screws with Captive Lock Washers

Key Benefits & Features:

• High-Current Capacity: Features a robust 1,000 Amp continuous rating, handling the most demanding high-amperage applications with exceptional reliability.
• Versatile Connectivity: Equipped with 12 terminal studs, each 5/16" in size, to accommodate multiple large conductors for comprehensive power distribution.
• Superior Conductivity: Constructed from tin-plated copper C11000 bus material, ensuring maximum electrical conductivity and superior corrosion resistance in harsh marine environments.
• Optimized Wiring Density: Innovative stepped bus design offers two elevations for conductors, effectively doubling wiring density compared to traditional busbars, and matching common fuse block elevations for direct attachment.
• Enhanced Safety: Includes a snap-on insulating cover that provides critical protection against accidental contact and meets rigorous ABYC and USCG safety standards.
• Wide Voltage Compatibility: Supports a maximum operating voltage of 150V AC/DC, making it suitable for a broad range of marine and automotive electrical systems.
• Secure Installation: Features mounting holes that accept #10 (M5) screws, facilitating secure and straightforward installation.
• Reliable Connections: One-piece serrated flange nuts ensure correct and secure connections, simplifying the installation process.
• Small Wire Management: Includes stainless steel 8-32 screws with captive lock washers for reliably securing smaller gauge wires.
• Expandable Design: Bi-directional busbar end caps allow for the ganging of additional PowerBars to seamlessly expand your electrical system.
• Customizable Length: The busbar may be cut to a shorter length, offering flexibility for installation in constricted spaces.

Recommended Pairings:

• Ideal for use with Blue Sea Systems fuse blocks for integrated circuit protection.
• Combine with other PowerBar models using bi-directional end caps for scalable power distribution.
