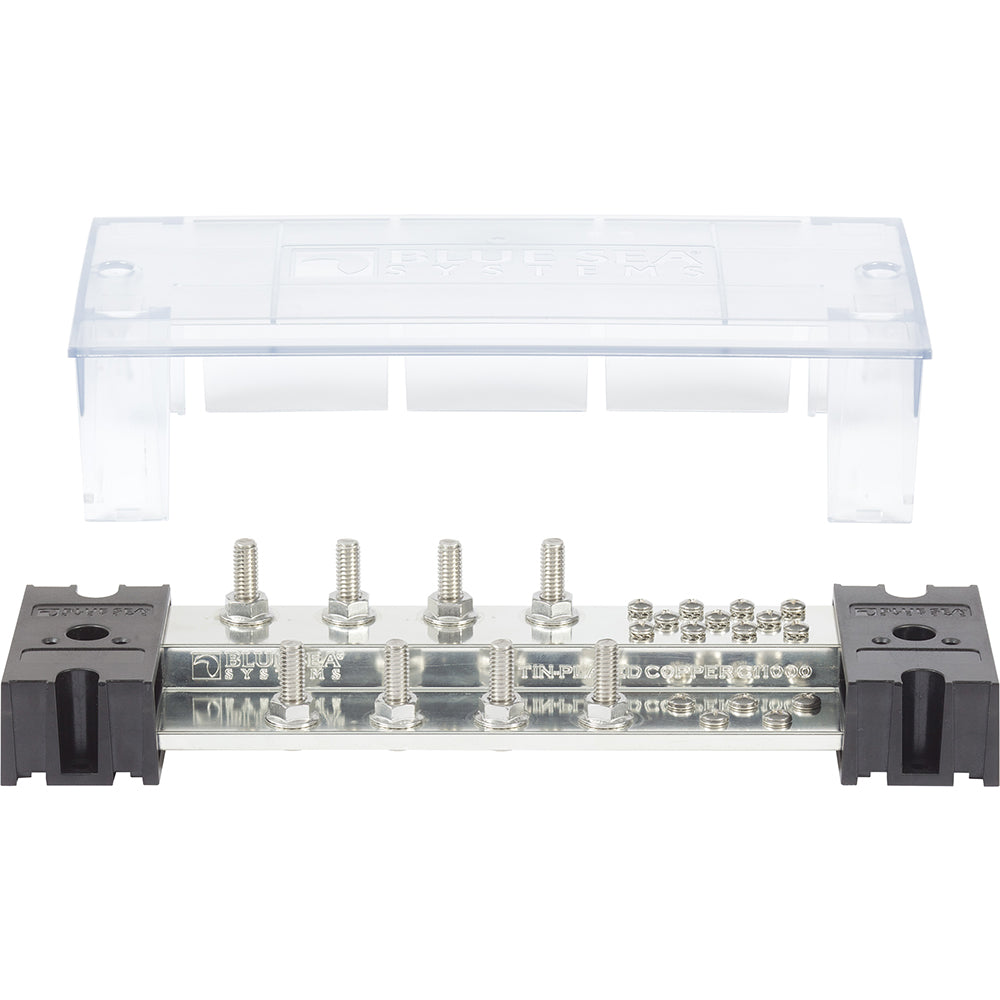

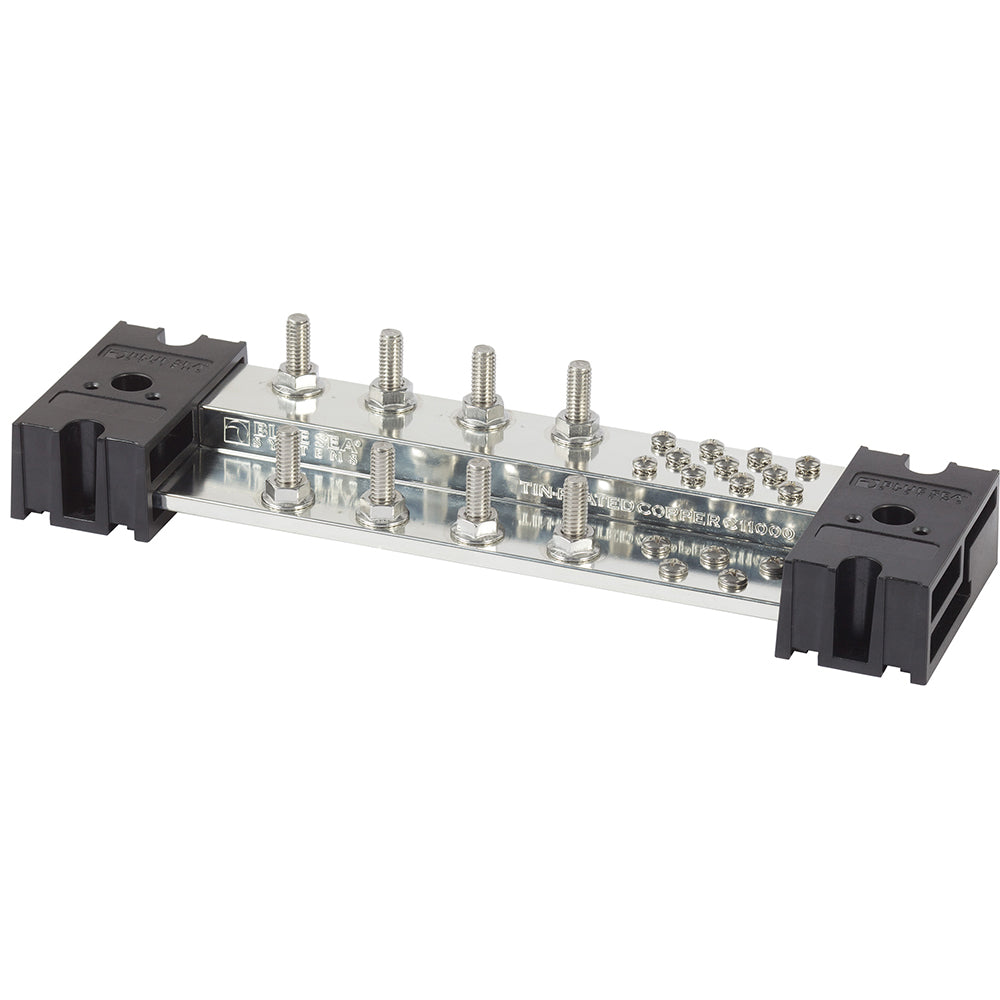

Blue Sea Systems PowerBar 1000, 8x 5/16" Studs, 1000A – ABYC/USCG Compliant

Consolidate and organize complex wiring systems with the Blue Sea Systems PowerBar 1000. This high-amperage busbar provides a robust, single point of connection for both large and small conductors, making it ideal for centralizing DC grounds or positive distribution in demanding marine, RV, and industrial applications. Engineered with a continuous 1000A rating and tin-plated copper for maximum conductivity, it ensures reliable power distribution and superior corrosion resistance in harsh environments. The innovative design meets ABYC and USCG requirements for safety and offers a scalable solution for your electrical needs. Upgrade your electrical system for enhanced safety and performance today.

• High-Current Capacity: Features a 1000A continuous rating to support large, complex wiring systems and demanding applications like battery mains and inverter feeds.
• Versatile Connection Points: Equipped with 8 terminal studs, each 5/16" in size, allowing for multiple secure connections of a wide range of cable sizes.
• Superior Conductivity & Durability: Constructed with tin-plated C11000 copper for maximum electrical conductivity and exceptional corrosion resistance in marine and outdoor settings.
• Optimized Wiring Density: Stepped bus design provides two elevations for conductors, effectively doubling the wiring density compared to traditional bus bars and enabling organized cable routing.
• Enhanced Safety: Includes a snap-on insulating cover that meets ABYC and USCG requirements, protecting terminals from accidental contact and ensuring compliance.
• Secure Connections: One-piece serrated flange nuts ensure correct, secure, and vibration-resistant connections with a single fastener.
• Small Wire Management: Features stainless steel 8-32 screws with captive lock washers for securely fastening smaller gauge wires.
• Customizable Fit: The busbar can be cut to a shorter length to accommodate installations in constricted spaces.
• Expandable System: Bi-directional end caps allow for the ganging of additional PowerBars for expanded capacity or to create electrically isolated sections.
• Direct Fuse Block Attachment: Busbar elevations match common fuse blocks, allowing for direct attachment without the need for additional connecting cables, reducing voltage drop and potential failure points.
• Robust Mounting: Accepts #10 (M5) screws for secure and versatile mounting.
• Wide Voltage Range: Max operating voltage of 150V AC/DC is suitable for diverse electrical system requirements.

Pair with Blue Sea Systems Class T or ANL fuse blocks for direct mounting and seamless integration into your power distribution system.
