Brand: Blue Sea Systems

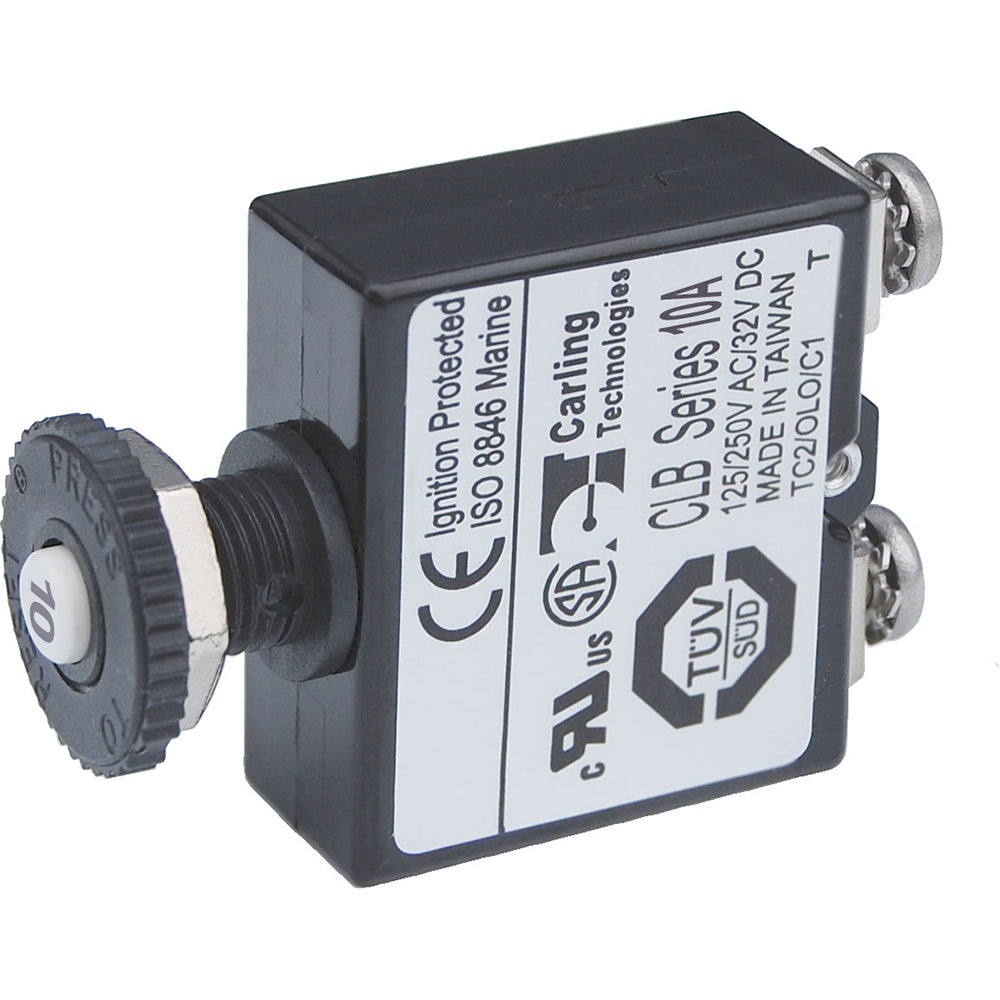

Blue Sea Systems 10A Push-Button Reset Thermal Circuit Breaker, Screw Terminal, 32V DC, MPN 2132
Blue Sea Systems 10A Push-Button Reset Thermal Circuit Breaker, Screw Terminal, 32V DC, MPN 2132
10+ available
About this product
Blue Sea Systems 2132 is a 10A thermal circuit breaker with manual push-button reset and screw terminals for panel-mounted circuit protection in marine and other 12V or 24V DC electrical systems.
- Branch circuit protection with push-to-reset operation
- Trip-free design cannot be held on during a fault-current condition
- Maximum voltage: 32V DC
- Mounting: panel mount, 3/8-27 UNS
- Terminal type: #8 screw; recommended screw-terminal torque: 6 in-lb (0.68 Nm)
- Interrupt capacity: 3000A at 14.7V and 2500A at 28V
- Operating temperature range: -10 deg C to 60 deg C
- Weight: 0.09 lb (0.04 kg)
- Ignition protected for installation aboard gasoline-powered boats
- Optional push-button waterproof boot is available separately for wet environments
- Regulatory note: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. See P65Warnings.ca.gov for more information.
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-105017
- Model / MPN
- 2132
- UPC / GTIN
- 632085021320
- Package dimensions (H × W × L)
- 1" X 3" X 5"
- Package weight
- 0.08 lb
- Country of origin
- MEXICO
Specifications
- Amperage
- 10a
