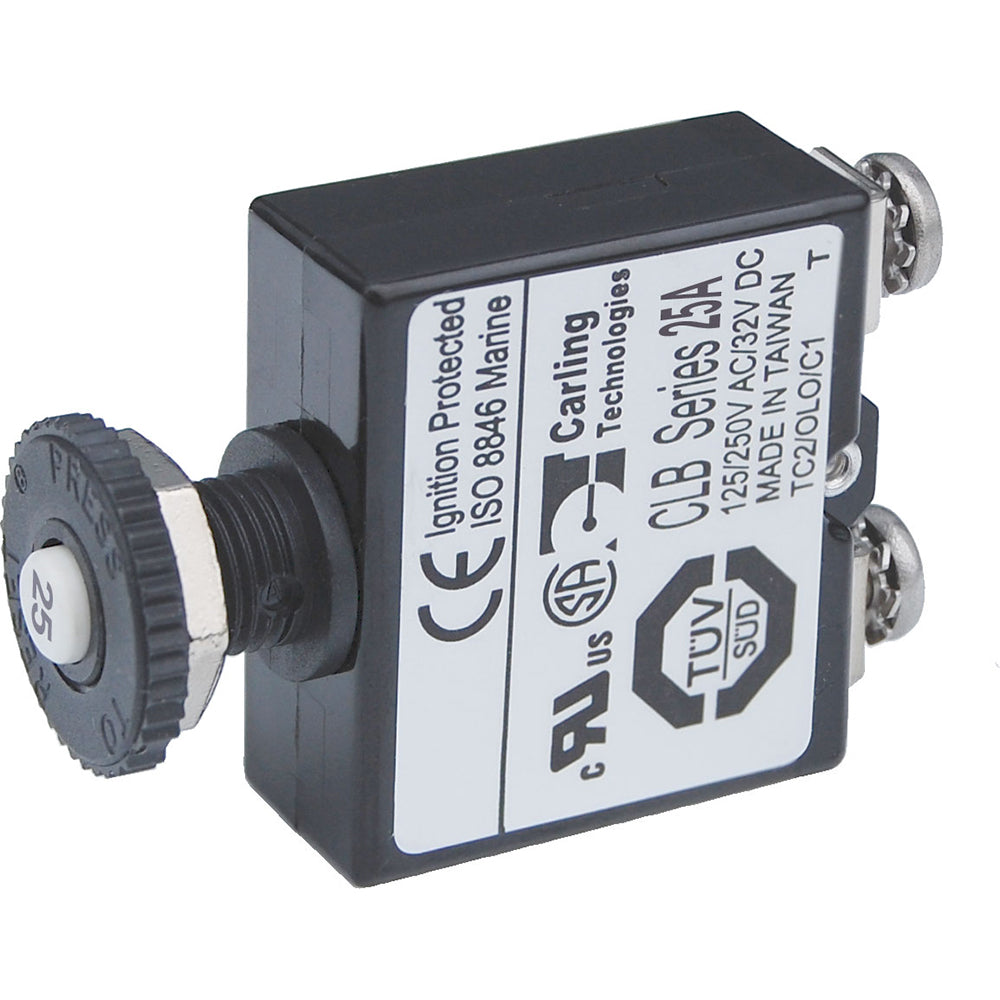

Blue Sea Systems 25A Push Button Reset-Only Circuit Breaker
Blue Sea Systems 25A Push Button Reset-Only Circuit Breaker
10+ available
About this product
The Blue Sea Systems 25A Push Button Reset-Only Circuit Breaker provides reliable circuit protection for marine and automotive applications. Its compact design allows for high-density configurations, while the trip-free mechanism ensures the device cannot be held in the ON position during a fault current condition.
Key Features- Push-to-reset operation
- Ignition protected, making it safe for installation on gasoline-powered boats
- Thermal trip, manual reset-only design
- Terminal Type: #8 screw
- Mounting: 3/8-27 UNS panel mount
- Compatible with Blue Sea Systems WeatherDeck, Dual Battery Bank, and 360 Distribution Panels
- Optional waterproof boot available (not included)
- Amperage: 25A
- Maximum Voltage: 32V DC
- Interrupt Capacity: 3000A at 14.7V DC / 2500A at 28V DC
- Operating Temperature: -10°C to 60°C
- Terminal Torque: 6 in-lb (0.68 Nm)
- Weight: 0.09 lb
- Part Number: 2135
Regulatory Note: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-105102
- Model / MPN
- 2135
- UPC / GTIN
- 632085021351
- Package dimensions (H × W × L)
- 1" X 3" X 5"
- Package weight
- 0.1 lb
- Country of origin
- MEXICO
Specifications
- Amperage
- 25a
