Brand: Blue Sea Systems

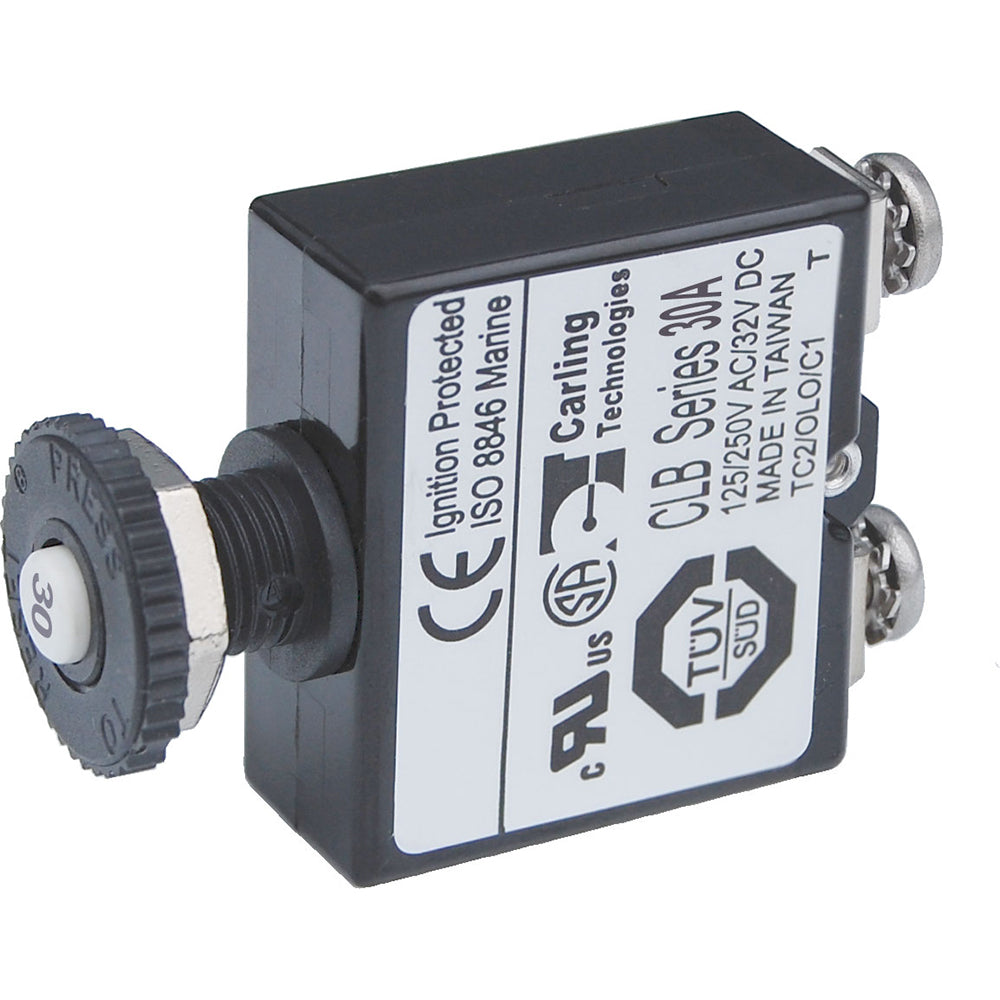

Blue Sea Systems 2136 30A Push-Button Reset Circuit Breaker with Screw Terminal
Blue Sea Systems 2136 30A Push-Button Reset Circuit Breaker with Screw Terminal
10+ available
About this product
Blue Sea Systems 2136 is a 30A thermal circuit breaker with push-button reset operation and a screw terminal connection for marine electrical installations.
- Branch circuit protection for circuits up to 30A, including 24-hour circuit protection applications
- Maximum voltage: 32V DC
- Panel mount: 3/8-27 UNS
- Circuit breaker type: Thermal trip with manual push-button reset only
- Terminal type: #8 screw
- Interrupt capacity: 3,000A at 14.7V and 2,500A at 28V
- Operating temperature: -10 deg C to 60 deg C
- Screw terminal torque: 6 in-lb (0.68 Nm)
- Weight: 0.09 lb (0.04 kg)
- Trip-free design prevents the breaker from being held on during a fault-current condition
- Ignition protected for installation aboard gasoline-powered boats
- Optional push-button waterproof boot available to protect the breaker in wet environments
- Regulatory note: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. See P65Warnings.ca.gov for more information.
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-105103
- Model / MPN
- 2136
- UPC / GTIN
- 632085021368
- Package dimensions (H × W × L)
- 1" X 3" X 5"
- Package weight
- 0.1 lb
- Country of origin
- MEXICO
Specifications
- Amperage
- 30a
