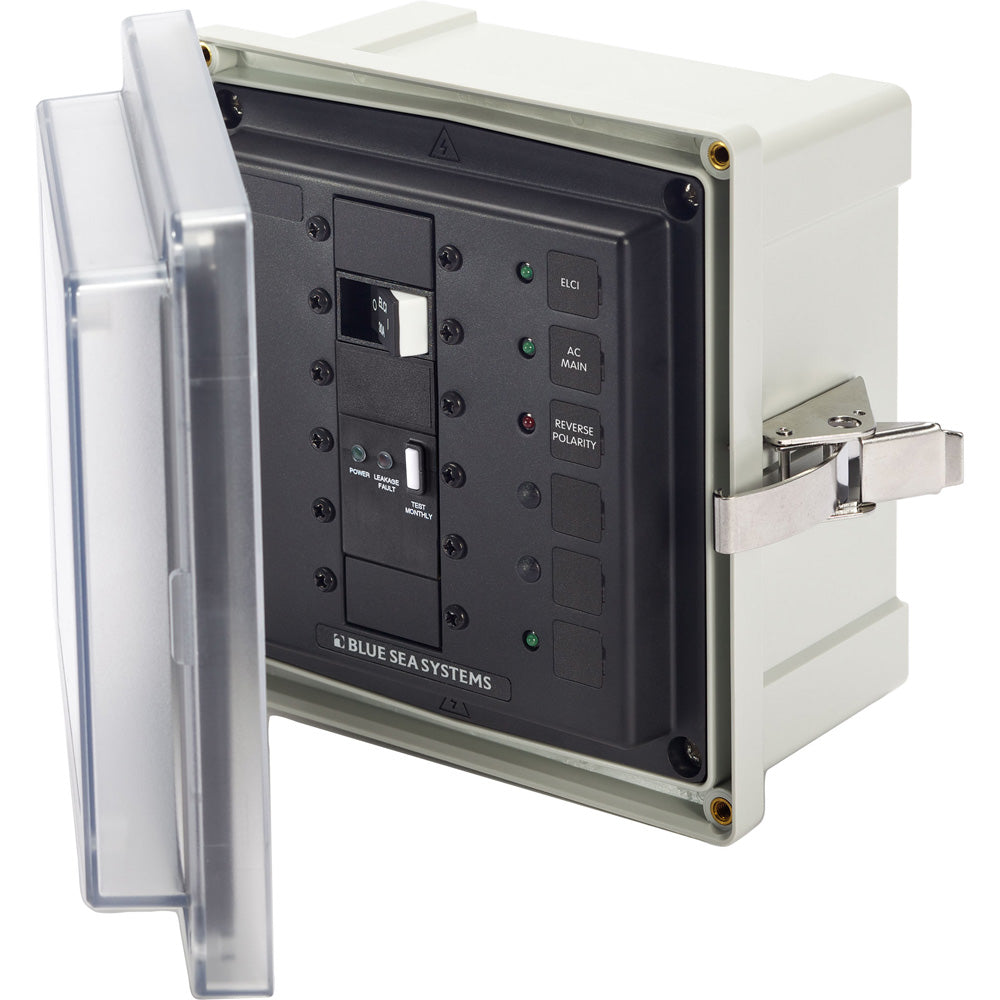

Blue Sea Systems 3119 SMS Surface Mount System Panel Enclosure, 120/240V 50A ELCI Main

The Blue Sea Systems 3119 SMS Surface Mount System Panel Enclosure is designed for housing ELCI main circuit breakers and other large frame devices. This enclosure meets ABYC E-11 standards when used with an ELCI main circuit breaker and mounted within 10 feet of the shore power inlet. It features a durable glass-filled polycarbonate construction with a clear cover for easy status viewing and an oversized seamless PUR gasket for added protection.

Key Features:

• Includes one 120/240V AC 50A ELCI main and one blank circuit position
• Blank apertures accommodate Carling Technologies A- and C-Series flat rocker and ELCI main circuit breakers
• Clear cover and overlapping design for strength and gasket protection
• Stainless steel hinge pin and latch system
• LED indicators for backlighting and ON status
• Includes waterproof glands, mounting hardware, and labels
• Regulatory note: This product contains di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer and reproductive harm.

Technical Specifications:

• Operating temperature range: -35°C to 66°C
• Enclosure dimensions: 6.0 in. x 6.0 in. x 4.0 in.
• Overall exterior dimensions: 7.6 in. x 7.4 in. x 4.7 in.
• Weight: 7.00 lbs.
• Mounting hardware: Uses 1/4 in. diameter, #12 (6 mm) fasteners
