Brand: Bluewater

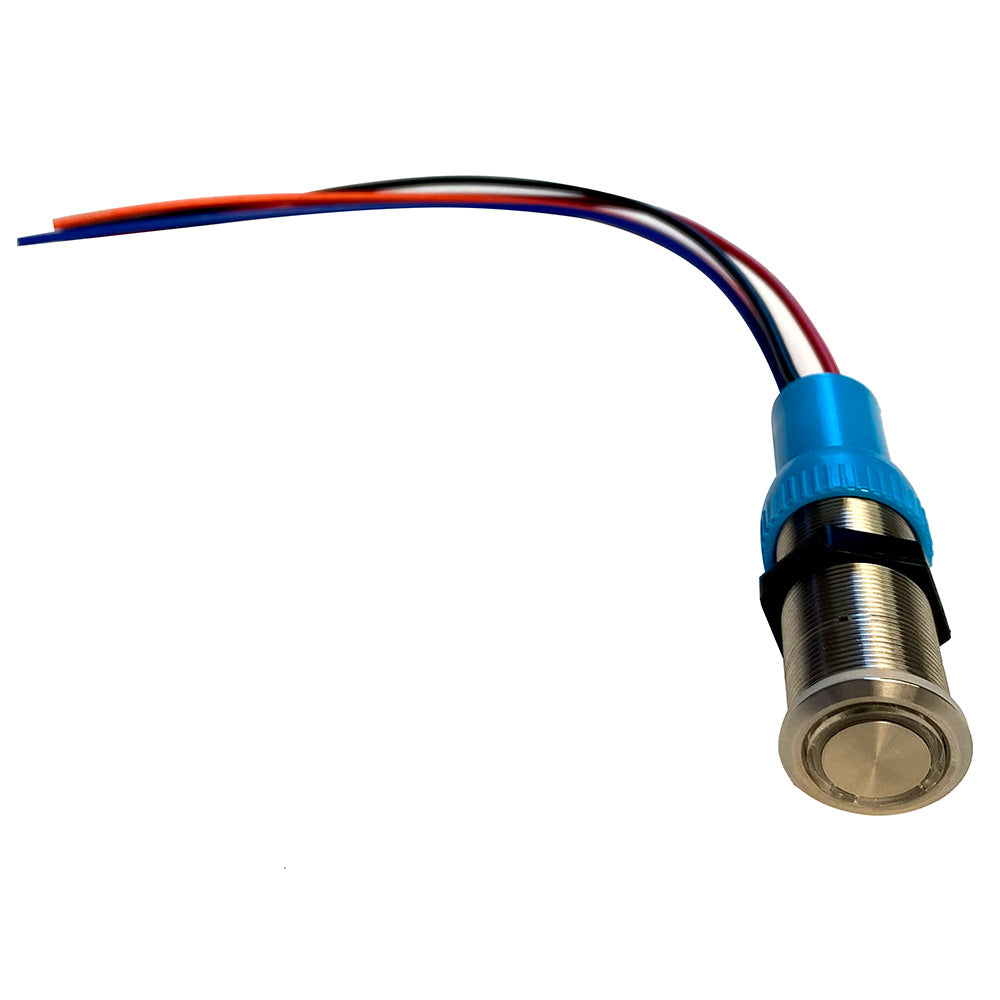

Bluewater 19mm Push Button Switch, Off-(On)-(On) Double Momentary, Blue/Green/Red LED
Bluewater 19mm Push Button Switch, Off-(On)-(On) Double Momentary, Blue/Green/Red LED
10+ available
About this product
This Bluewater 19mm push button switch features a stainless-steel plated construction, providing a durable and modern interface for your dashboard or control panel. Designed with an Off-(On)-(On) double momentary contact function, the switch includes an integrated LED backlight for clear status indication: blue/green when in the off or initial on position, and red to signify the second active function.
- Function: Off-(On)-(On) double momentary contact
- LED Illumination: Blue/Green (Off/On), Red (2nd On)
- Waterproof Rating: IP69K (includes mounting gasket)
- Switch Rating: 15A at 12–24VDC
- Material: Stainless steel
- Mechanical Life: 50,000 cycles
- Electrical Life: 10,000 cycles
- Included: 1 ft. wire lead
- Compatibility: Suitable for mounting in materials up to 6mm thick with a 19mm diameter hole

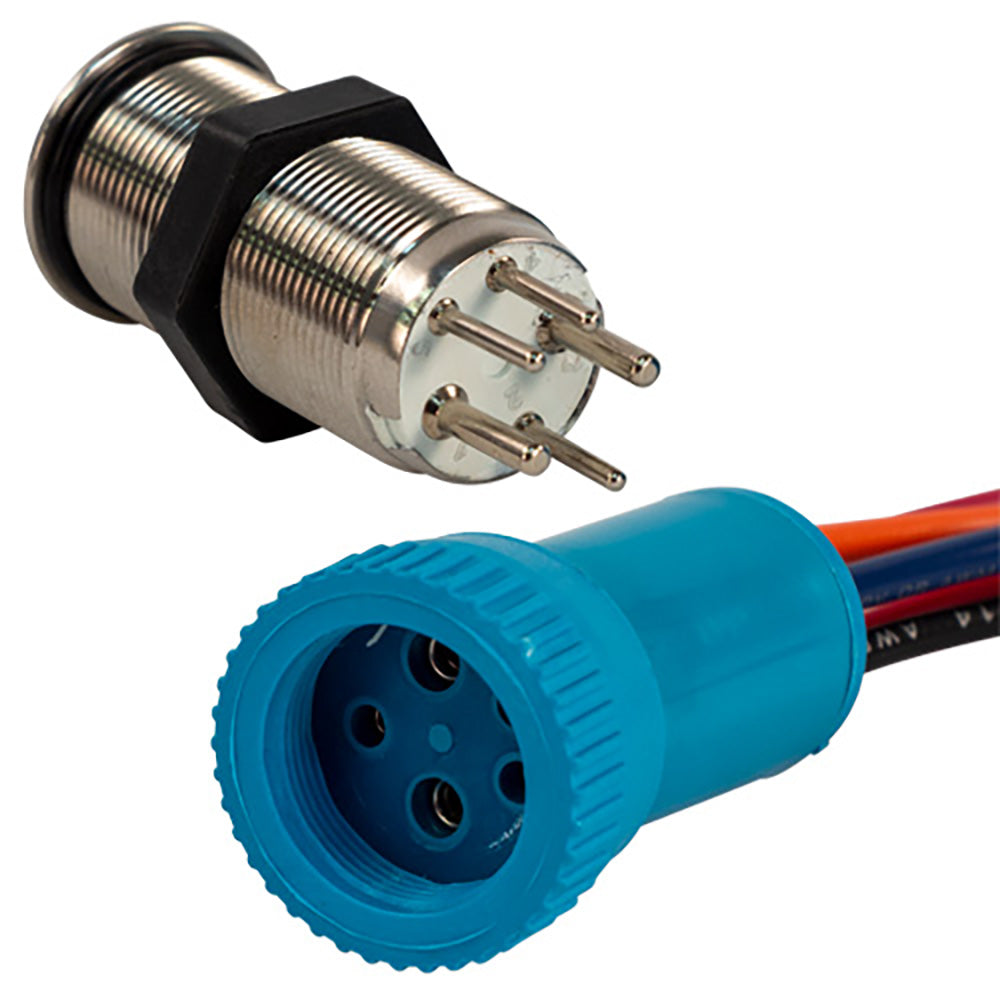

The switch features three color-coded button contacts and two separate LED contacts for straightforward installation.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-113516
- Model / MPN
- 9057-2123-1
- Package dimensions (H × W × L)
- 1" X 4" X 8"
- Package weight
- 0.61 lb
Specifications
- Action
- (ON)-(ON)-OFF
- Color
- Blue/Green/Red
