Brand: Bluewater

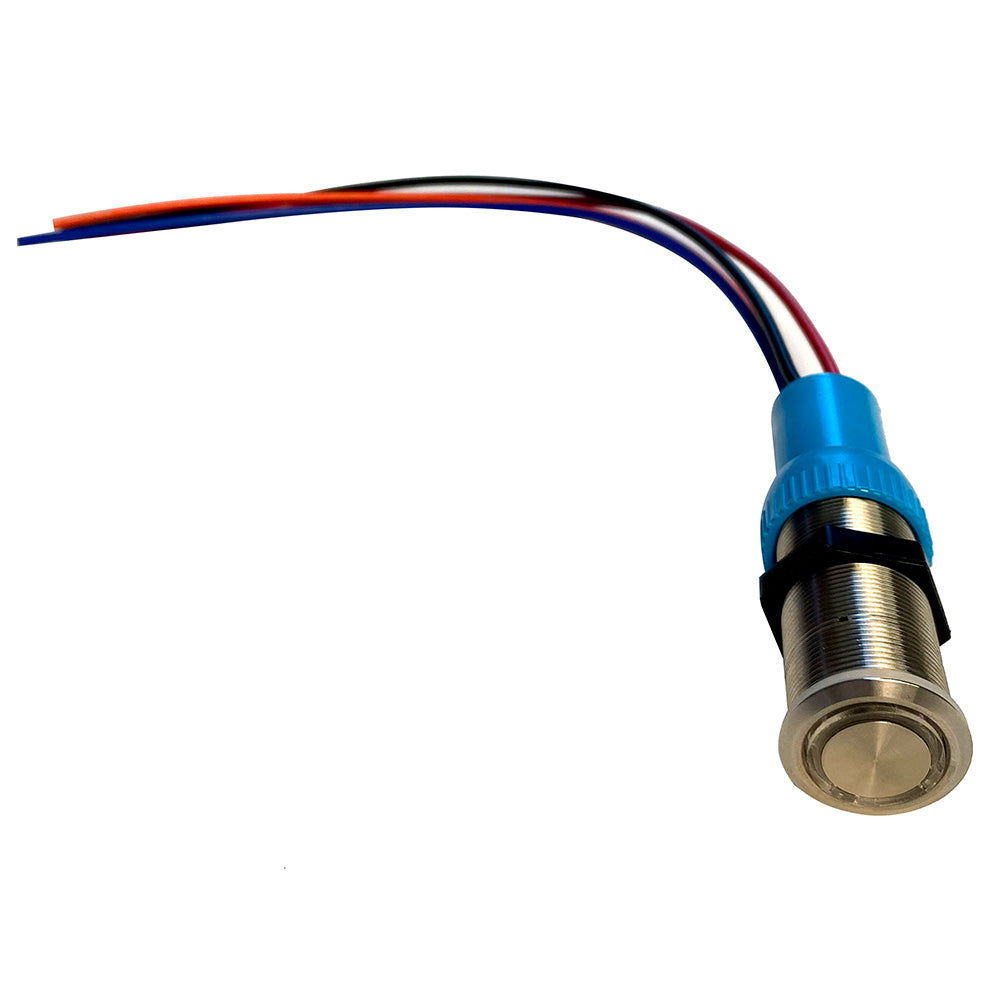

Bluewater 19mm Nav/Anc Push Button Switch, Blue/Green/Red LED, 1 ft. Lead
Bluewater 19mm Nav/Anc Push Button Switch, Blue/Green/Red LED, 1 ft. Lead
10+ available
About this product
The Bluewater 19mm push button switch provides Nav/Anc operation with color-changing LED illumination and a 1 ft. lead.
- Switch action: OFF/ON/ON
- LED colors: blue and green for Off/1st On; red for 2nd On
- Switch rating: 7.5 A maximum per channel for two-channel operation, 12–24 VDC
- Stainless steel material with included gasket; rated IP69K for water ingress protection
- White dot on the rear marking panel
- Mechanical life: 50,000 cycles; electrical life: 10,000 cycles

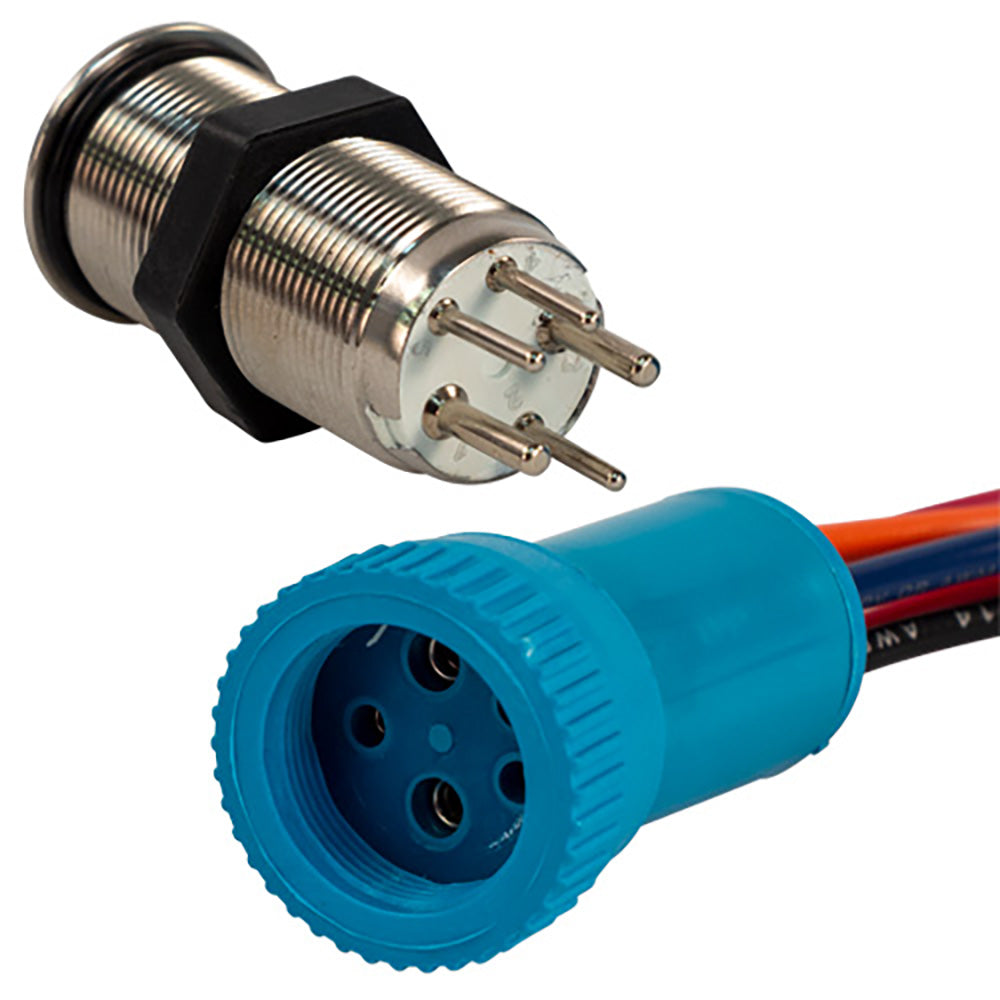

- Installation requires a 19 mm hole in material up to 6 mm thick. The button uses three contacts, and the LED uses two contacts.
- Manufacturer part number: 9057-3114-1
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-113500
- Model / MPN
- 9057-3114-1
- Package dimensions (H × W × L)
- 1" X 4" X 8"
- Package weight
- 1.61 lb
Specifications
- Action
- ON-ON-OFF
- Color
- Blue/Green/Red
- Switch Rating
- 7.5 A maximum per channel for two-channel operation, 12–24 VDC
