Brand: Bluewater

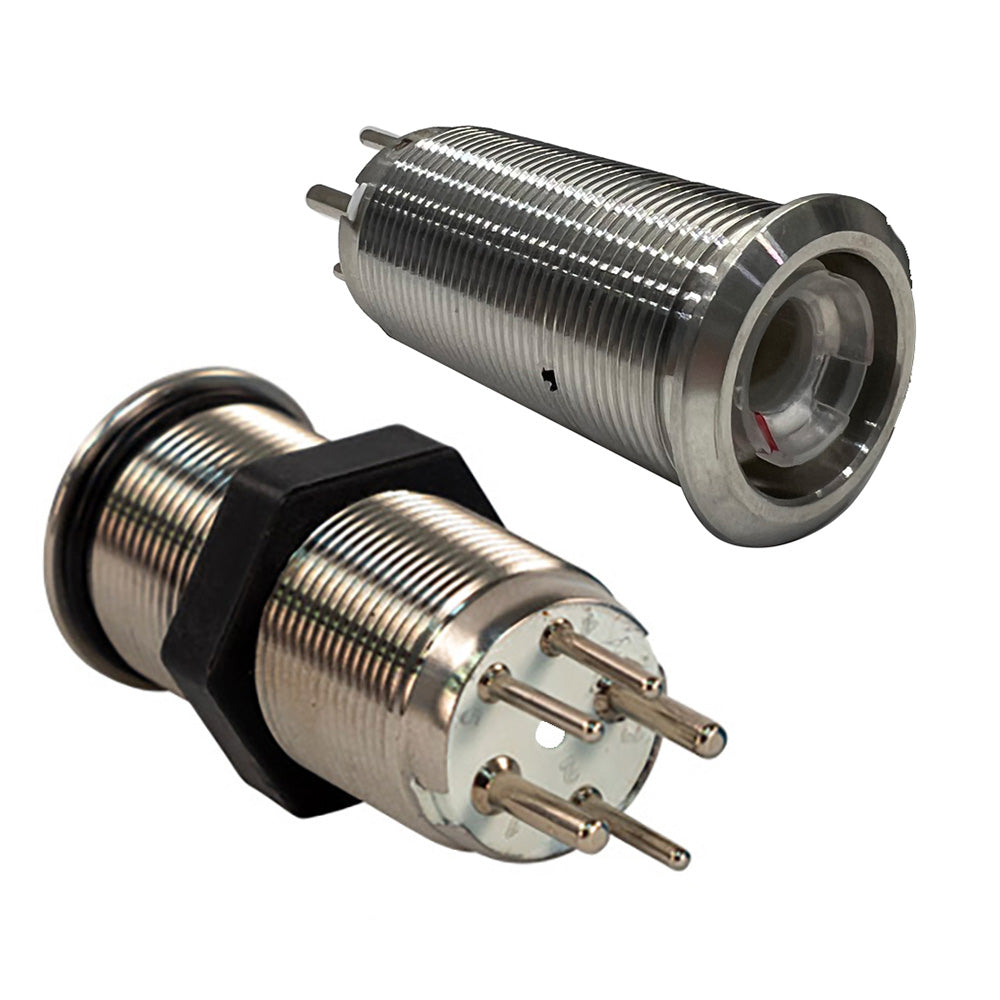

Bluewater 19mm Inrush Push Button Switch - Nav/Anchor - Blue/Green/Red LED
Bluewater 19mm Inrush Push Button Switch - Nav/Anchor - Blue/Green/Red LED
10+ available
About this product
The Bluewater 9057 Series 19mm push button switch provides a compact, marine-grade control solution designed for high-current applications. Featuring an IP69K waterproof rating and corrosion-resistant construction, this switch is suitable for environments exposed to salt spray and washdowns.
- Function: Nav/Anchor (Off/On/On)
- LED Indicators: Blue (backlight), Green/Red (active status)
- Electrical Rating: 15A at 12-24VDC (single channel) or 7.5A per channel (dual channel)
- Construction: Stainless steel and nickel-plated brass body
- Switch Contacts: 1 NO/1 NC or 2 NO/2 NC configurations
- Durability: 50,000 mechanical cycles and 10,000 electrical cycles
- Installation: Fits 19mm hole; max panel thickness of 6mm
- Connector Type: Proprietary Deutsch-style connectors
- Model Number: 9057-3114
This switch body features a detachable, customizable actuator and provides clear visual feedback via integrated backlighting. It is designed for simple installation in limited panel spaces.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-116061
- Model / MPN
- 9057-3114
- UPC / GTIN
- 810196330818
- Package dimensions (H × W × L)
- 1" X 1" X 2"
- Package weight
- 0.1 lb
Specifications
- Action
- ON-ON-OFF
- Color
- Blue/Green/Red
