Brand: Bluewater

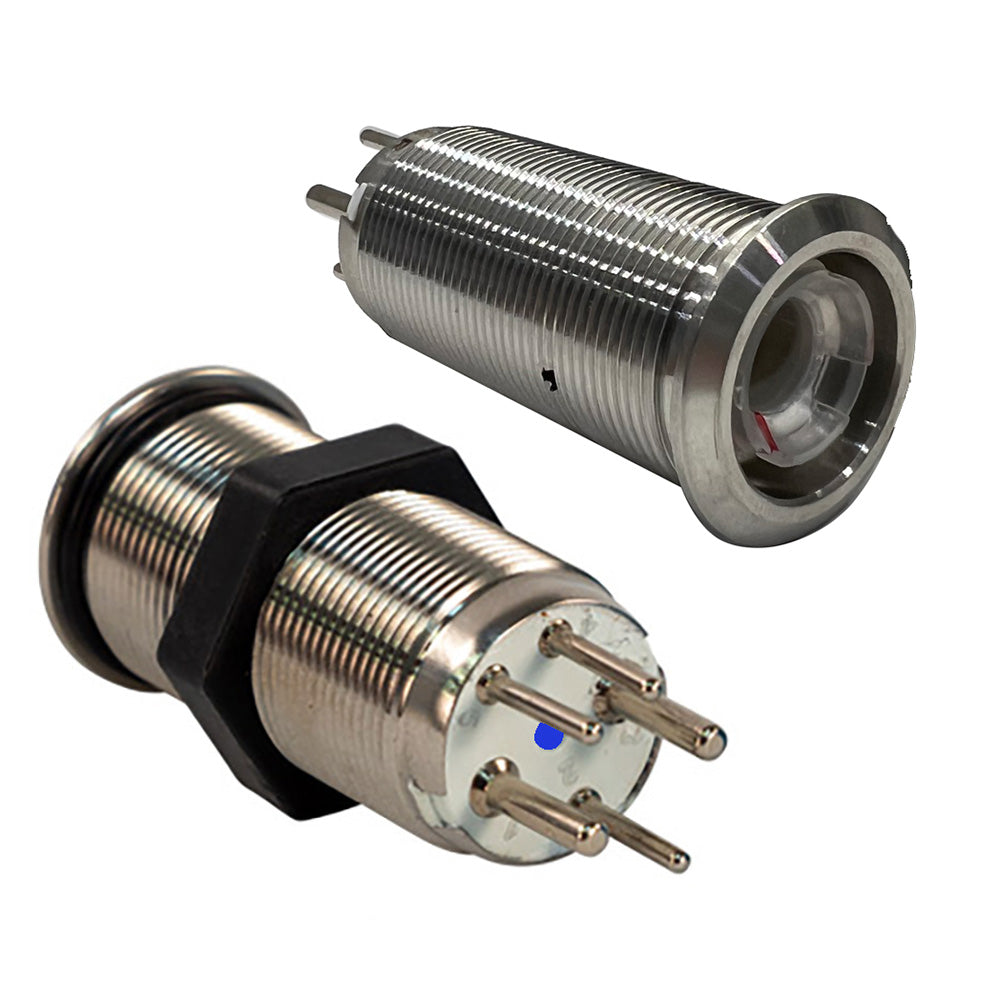

Bluewater 9057 Series 19mm Inrush Push Button Switch, Off/On/On, Blue/Green/Red LED
Bluewater 9057 Series 19mm Inrush Push Button Switch, Off/On/On, Blue/Green/Red LED
10+ available
About this product
The Bluewater 9057 Series 19mm inrush push button switch provides three-state electronic control for marine and outdoor electrical panels. Its SS316 stainless steel body and blue, green, and red LED indications support clear operation in compact installations.
- Manufacturer part number: 9057-3113
- Switch states: Off; Load 1 on with Load 2 off; Load 2 on with Load 1 off
- Rating: 12–24VDC; 15A maximum in single-channel use or 7.5A maximum per channel in dual-channel use
- LED operation: Blue backlighting in the Off position when enabled; green for Load 1 on; red for Load 2 on
- Mechanical life: 50,000 cycles; electrical life: 10,000 cycles
- Installation: requires a 19mm panel hole in material up to 6mm thick. The description specifies three button contacts and two LED contacts.
Switch body only; connectors and other accessories are not specified as included.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-116064
- Model / MPN
- 9057-3113
- UPC / GTIN
- 810196330801
- Package dimensions (H × W × L)
- 1" X 2" X 4"
- Package weight
- 0.08 lb
Specifications
- Action
- ON-ON-OFF
- Color
- Blue/Green/Red
- Body Material
- SS316 stainless steel
- Switch Contacts
- Electronic switching: Off; Load 1 on with Load 2 off; Load 2 on with Load 1 off
- Switch Rating
- 12–24VDC; 15A maximum single-channel or 7.5A maximum per channel dual-channel
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
