Brand: Bluewater

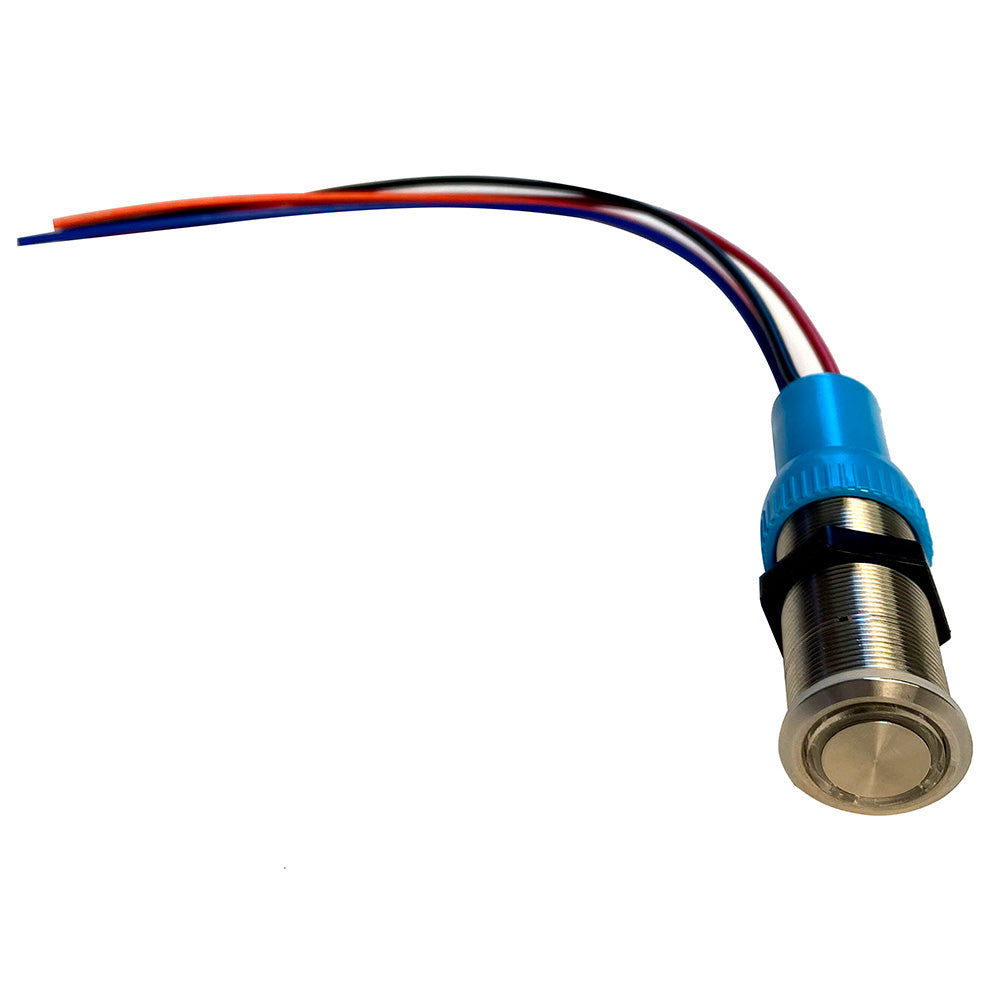

Bluewater 19mm Double-Momentary Push Button Switch, Blue/Green/Red LED, 4 ft. Lead
Bluewater 19mm Double-Momentary Push Button Switch, Blue/Green/Red LED, 4 ft. Lead
10+ available
About this product
The Bluewater 19mm push button switch features double-momentary Off/(On)/(On) operation and a tri-color LED indicator for marine and other electrical control panels.
- Switch rating: 12–24 VDC; 15A maximum for single-channel use and 7.5A maximum per channel for dual-channel use
- LED colors: blue for off, green for the first on position, and red for the second on position
- 4 ft. lead
- Stainless steel construction
- Mechanical life: 50,000 cycles; electrical life: 10,000 cycles

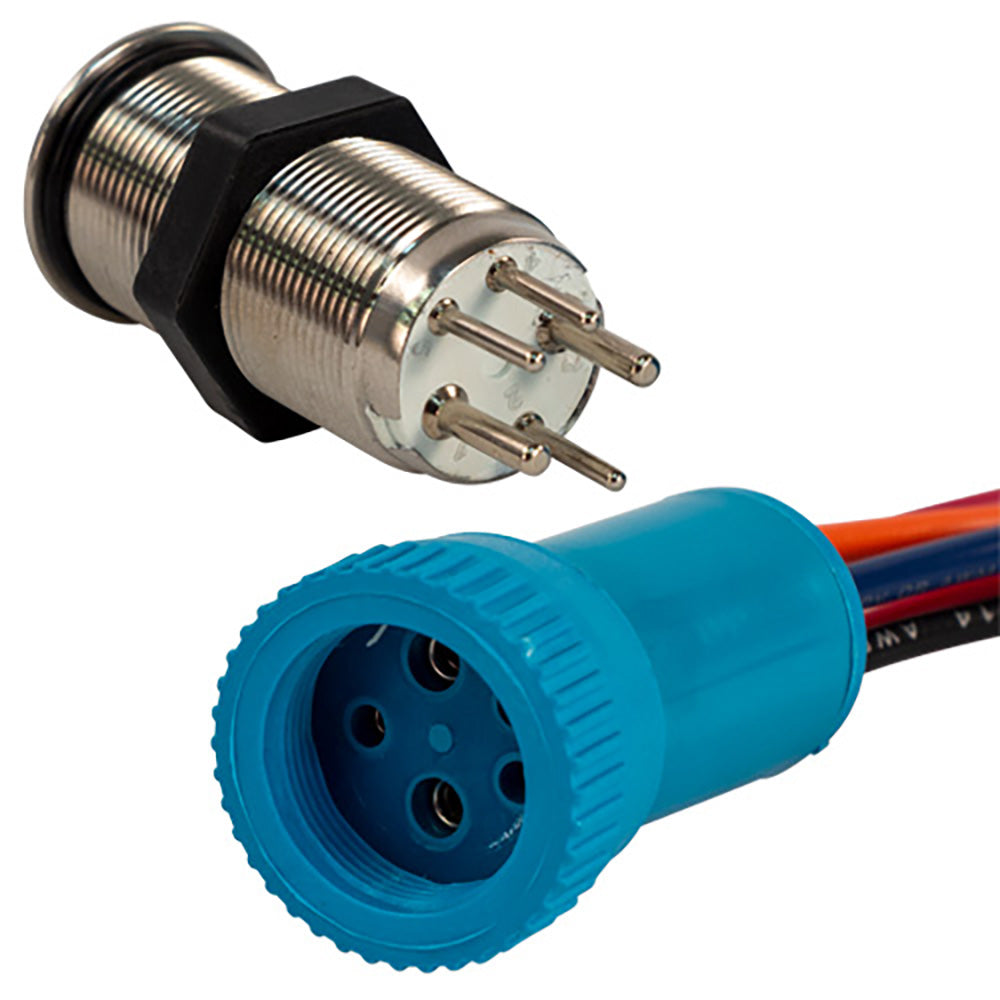

- IP69K waterproof rating requires the specified Bluewater Deutsch-style connector
- Installation requires a 19mm hole in material up to 6mm thick; connect three switch contacts and two LED contacts
- Rear marking: green dot with a line
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-114199
- Model / MPN
- 9057-2123-4
- Package dimensions (H × W × L)
- 2" X 5" X 6"
- Package weight
- 0.46 lb
Specifications
- Action
- (ON)-(ON)-OFF
- Color
- Blue/Green/Red
- Switch Rating
- 12–24 VDC; 15A maximum single-channel; 7.5A maximum per channel dual-channel
