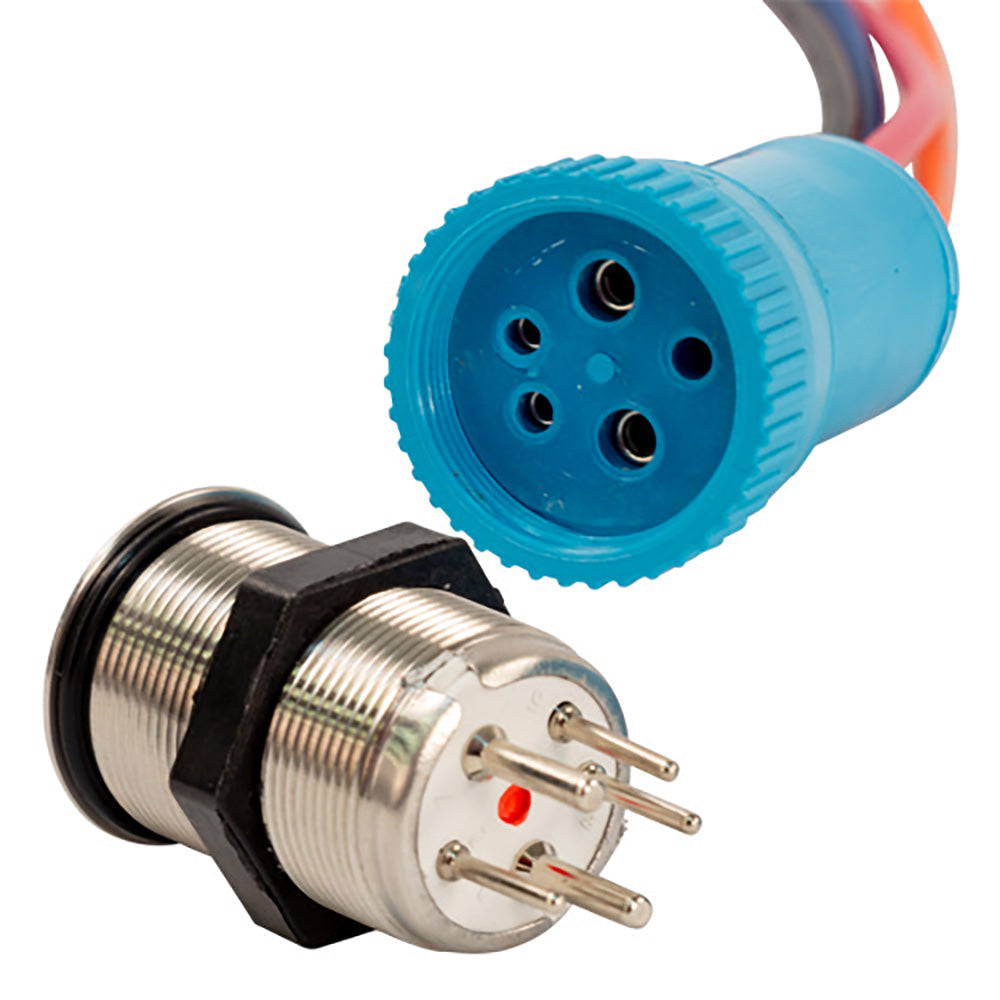

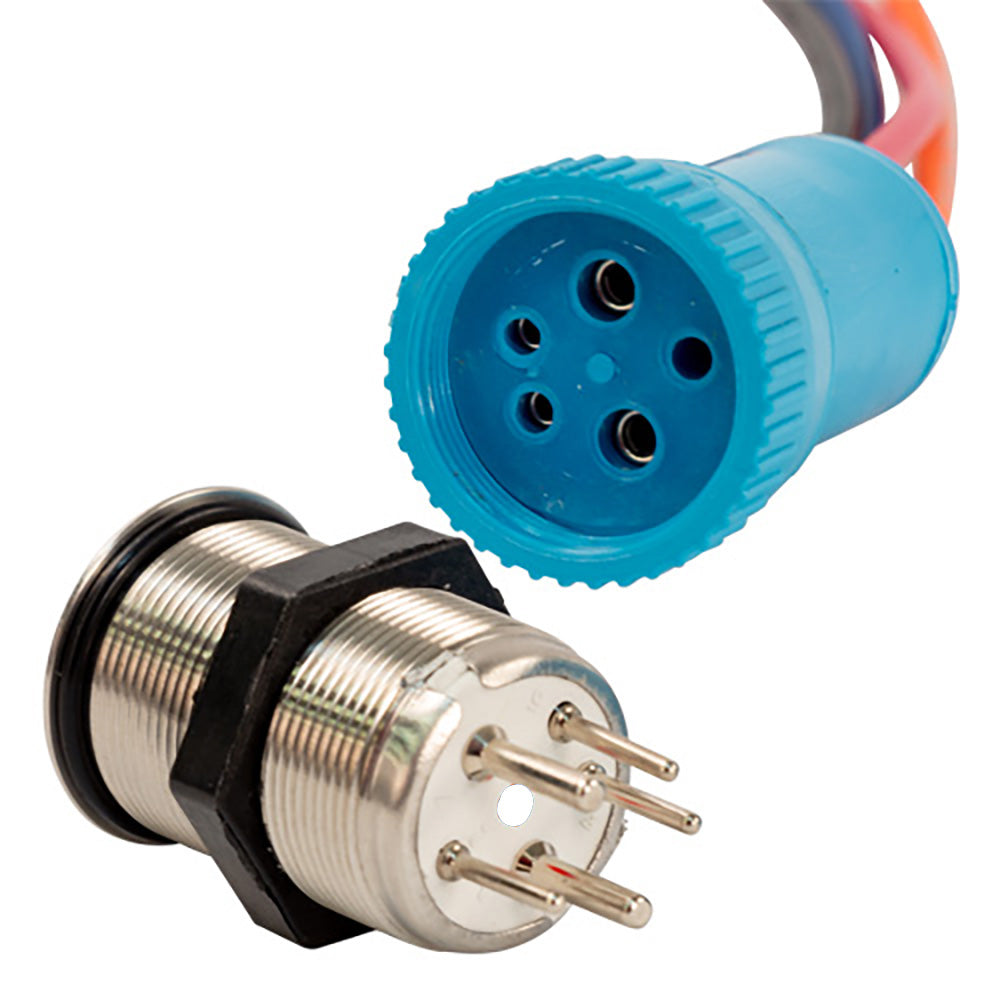

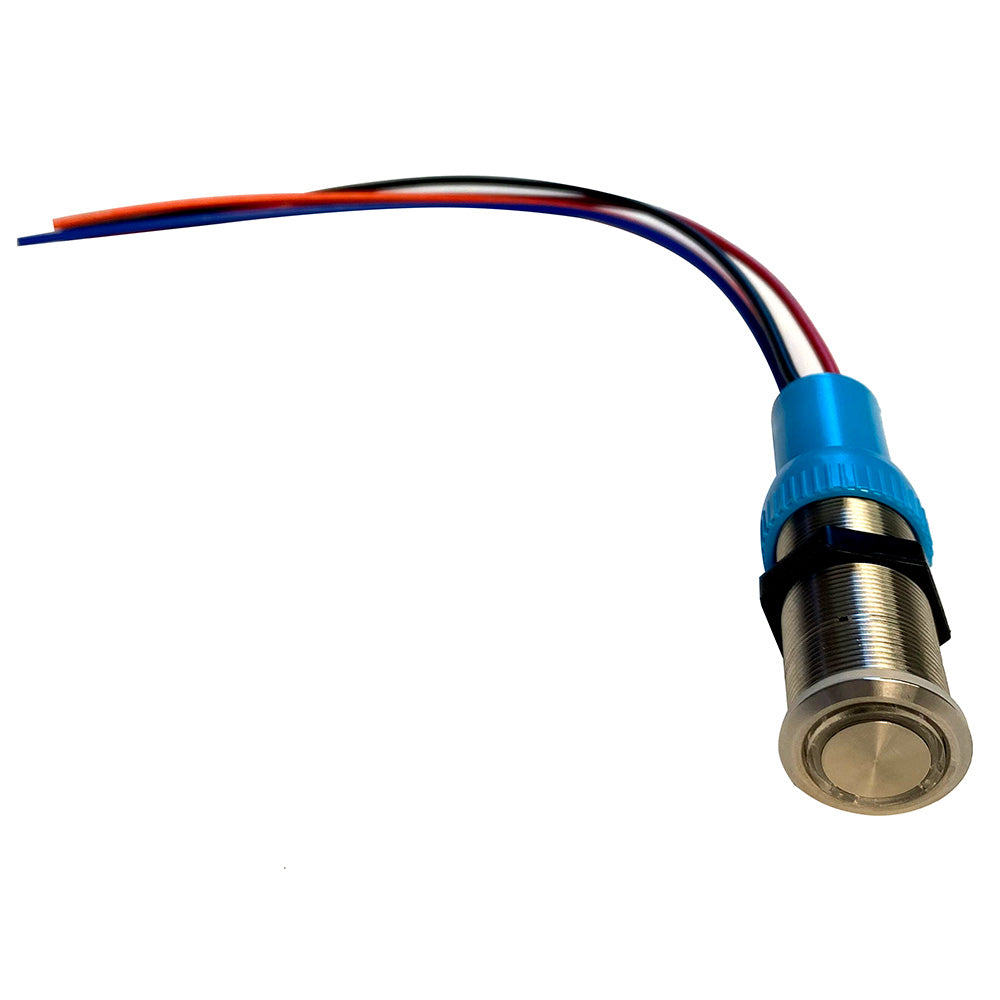

Bluewater 22mm Nav/Anc Push Button Switch, Blue/Green/Red LED, 1 ft. Lead
Bluewater 22mm Nav/Anc Push Button Switch, Blue/Green/Red LED, 1 ft. Lead
10+ available
About this product
The Bluewater 22mm push button switch controls navigation and anchor functions, with blue, green, and red LED indication and a 1 ft. lead.
- ON-ON-OFF action with Nav/Anc function
- Off/first-on illumination: blue/green; second-on illumination: red
- Rear mark: white dot
- 10A maximum per output channel at 12–24 VDC
- Stainless steel construction
- Mechanical life: 50,000 cycles; electrical life: 10,000 cycles
- Requires a 22mm mounting hole in material up to 6mm thick
- IP69K rating when installed with Bluewater DT connectors, correctly sized wires, and dummy plugs in unused connector positions
- Connect power input, navigation output, anchor output, blue LED input, and ground according to the manufacturer's 9059-3114 wiring diagram
- Manufacturer part number: 9059-3114-1
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-113514
- Model / MPN
- 9059-3114-1
- Package dimensions (H × W × L)
- 1" X 1" X 13"
- Package weight
- 0.21 lb
- Country of origin
- UNITED STATES
Specifications
- Action
- ON-ON-OFF
- Color
- Blue/Green/Red
- Switch Rating
- 10A maximum per output channel at 12–24 VDC
- Waterproof Rating
- IP69K when installed with Bluewater DT connectors, correctly sized wires, and dummy plugs in unused connector positions
