Brand: Bluewater

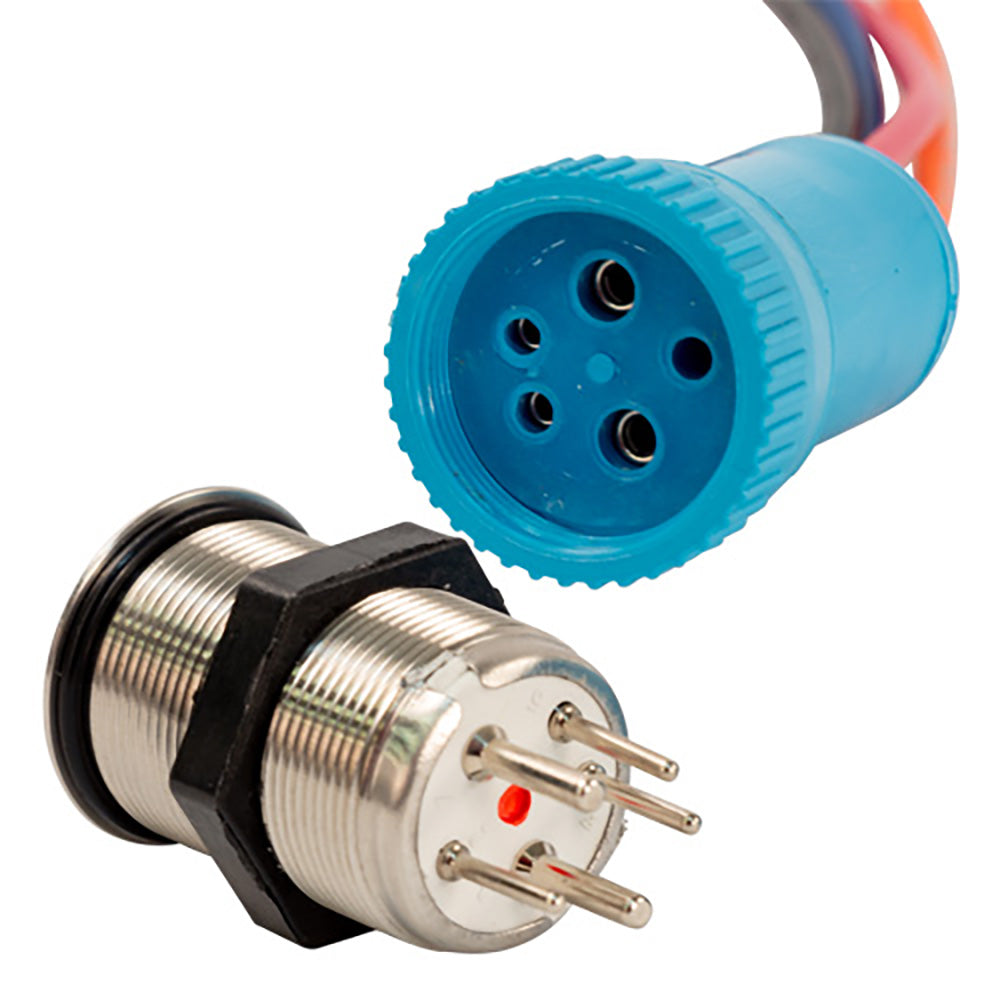

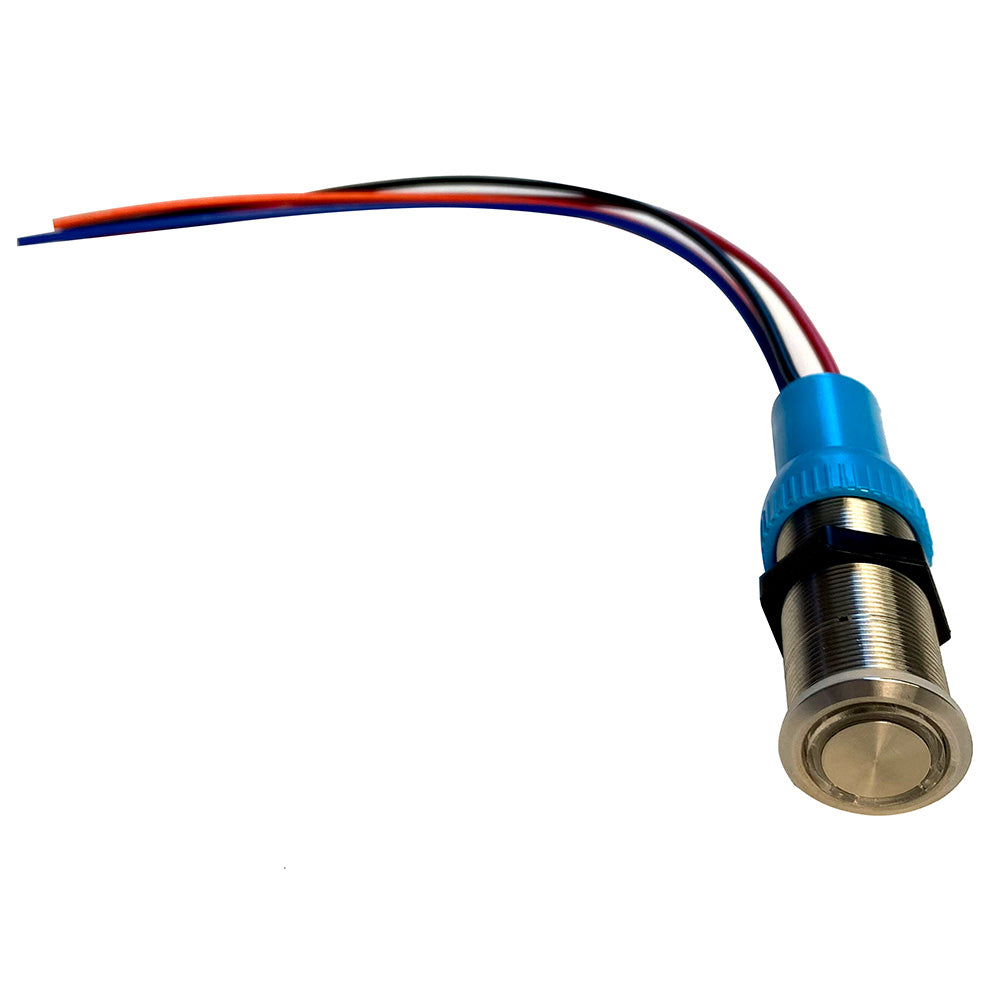

Bluewater 22mm Push Button Switch, Off-On-On, Blue/Green/Red LED, 1 ft. Lead, Part 9059-3113-1
Bluewater 22mm Push Button Switch, Off-On-On, Blue/Green/Red LED, 1 ft. Lead, Part 9059-3113-1
10+ available
About this product
This Bluewater 22mm push button switch features an Off-On-On contact arrangement, blue, green, and red LED illumination, and a 1 ft. lead for electrical control applications.
- Function: Off-On-On standard contact
- LED indication: Blue/green at Off or first On position; red at the second On position
- Switch rating: 20A at 12–24VDC
- Construction: Stainless steel with included gasket
- Ingress protection: IP69K waterproof rating
- Rear marking: Blue dot
- Mechanical life: 50,000 cycles
- Electrical life: 10,000 cycles
- Installation: Requires a 22mm hole in material up to 6mm thick; includes color-coded contacts for the button and separate contacts for the LED
- Manufacturer part number: 9059-3113-1
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-113467
- Model / MPN
- 9059-3113-1
- Package dimensions (H × W × L)
- 1" X 1" X 13"
- Package weight
- 0.21 lb
Specifications
- Action
- ON-ON-OFF
- Color
- Blue/Green/Red
