Brand: Bluewater

Bluewater 22mm Inrush Protection Momentary Push Button Switch - Blue/Red LED

Bluewater 22mm Inrush Protection Momentary Push Button Switch - Blue/Red LED

$55.00
$55.00
Sale Sold out
Shipping calculated at checkout.

10+ available

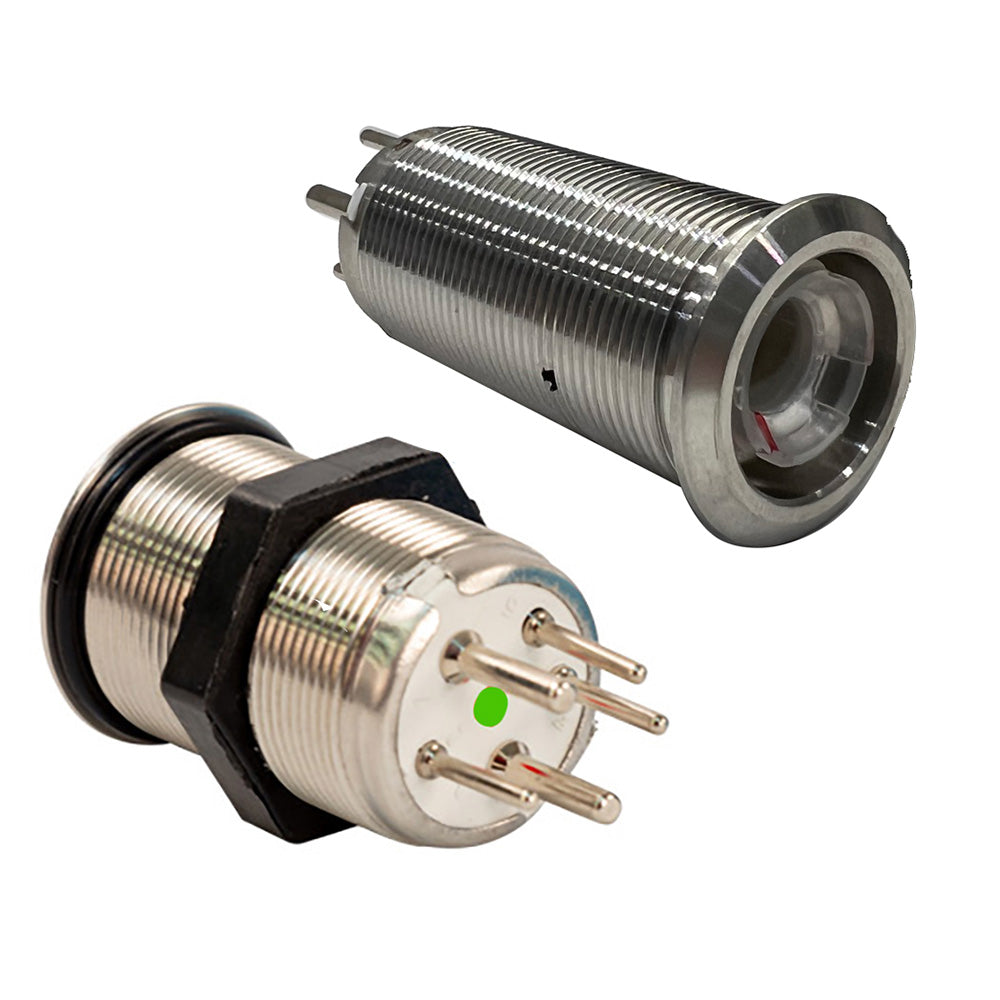

This Bluewater 22mm momentary push button switch is engineered for demanding marine environments, featuring built-in inrush protection to safely manage high surge currents from pumps, motors, and other onboard equipment. The switch body is constructed from durable SS316 stainless steel and nickel-plated brass, rated IP69K waterproof to withstand salt spray, vibration, and shock.

  • LED Indicators: Blue backlighting for nighttime visibility shifts to bright red when the device is active.
  • Power Handling: Rated for 20A on a single channel or 10A per channel in dual-channel configurations.
  • Specifications: Compatible with 12-24VDC systems with 1 NO/1 NC or 2 NO/2 NC contact configurations.
  • Durability: Mechanical life rated for 50,000 cycles and electrical life for 10,000 cycles.
  • Installation: Designed for a 22mm mounting hole in materials up to 6mm thick.

Each unit features a detachable actuator and uses proprietary Deutsch-style connectors. Note: This item includes the switch body only.

Product facts

CT SKU
CT-116055
UPC / GTIN
810196330863
Package weight
0.1 lb
