• Bluewater 22mm Inrush Push Button Switch, Off/On/On, Blue/Green/Red LED
1 1

Brand: Bluewater

Bluewater 22mm Inrush Push Button Switch, Off/On/On, Blue/Green/Red LED

Bluewater 22mm Inrush Push Button Switch, Off/On/On, Blue/Green/Red LED

$55.00
$55.00
Sale Sold out
Shipping calculated at checkout.

10+ available

About this product

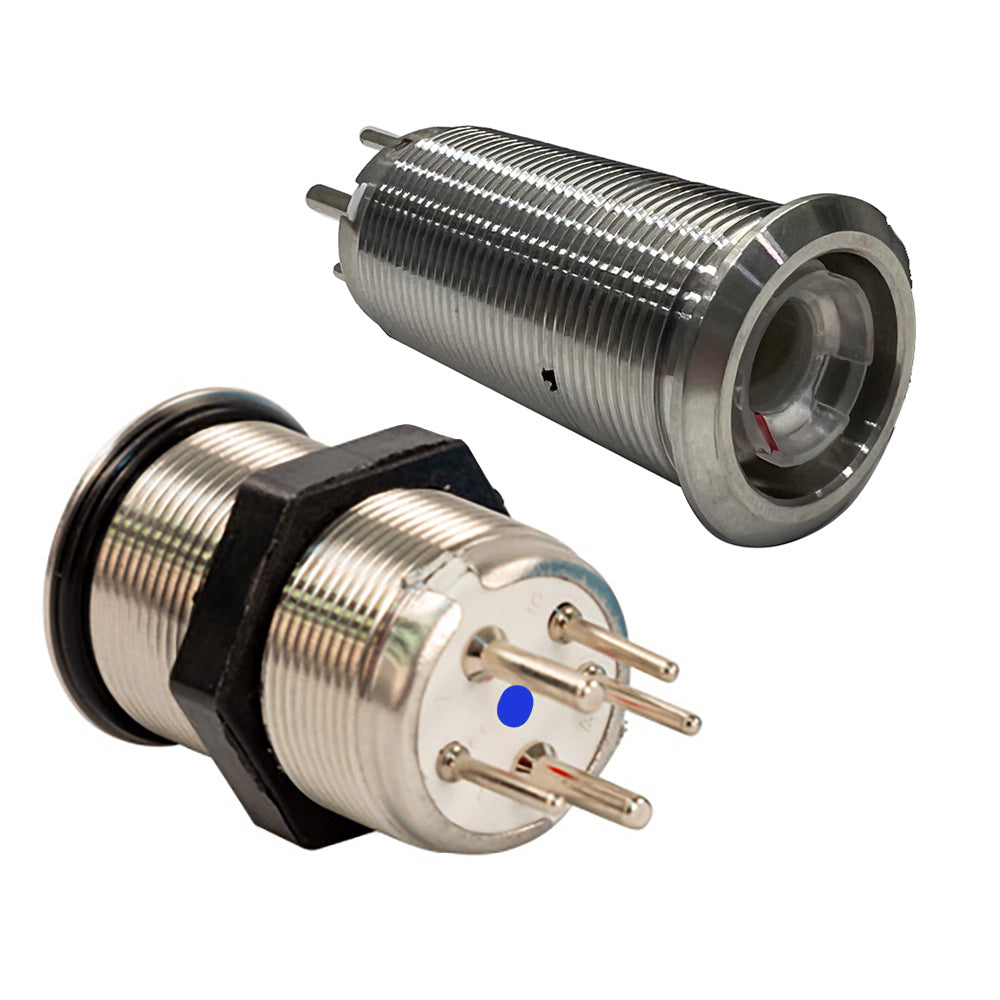

The Bluewater 22mm Inrush Push Button Switch (Model 9059-3113) provides reliable control for marine electrical systems, featuring built-in inrush protection designed for pumps, motors, and other high-surge equipment. This switch body is built for harsh environments, encased in corrosion-resistant stainless steel with an IP69K waterproof rating.

Key Features:

  • Marine-Grade Durability: Constructed from nickel-plated brass and stainless steel to resist salt spray, heat, vibration, and shock.
  • Visual Status Indicators: Features blue LED backlighting for visibility, shifting to red when active to provide instant status confirmation.
  • Power Specifications: Rated for 20A on a single channel or 10A per channel in dual-channel configurations, suitable for 12-24VDC systems.
  • Easy Installation: Designed for a 22mm mounting hole in panels up to 6mm thick, utilizing color-coded contacts for button and LED wiring.
  • Longevity: Rated for 50,000 mechanical cycles and 10,000 electrical cycles.
  • Versatile Configuration: Offers 1 NO, 1 NC or 2 NO, 2 NC contact arrangements.

Manuals & videos

  • Secure checkout
  • 21-day return requests
  • Free standard shipping $100+

Product facts

CT SKU
CT-116057
Model / MPN
9059-3113
UPC / GTIN
810196330894
Package dimensions (H × W × L)
1" X 1" X 4"
Package weight
0.1 lb

Specifications

Action
ON-ON-OFF
Color
Blue/Green/Red

Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
