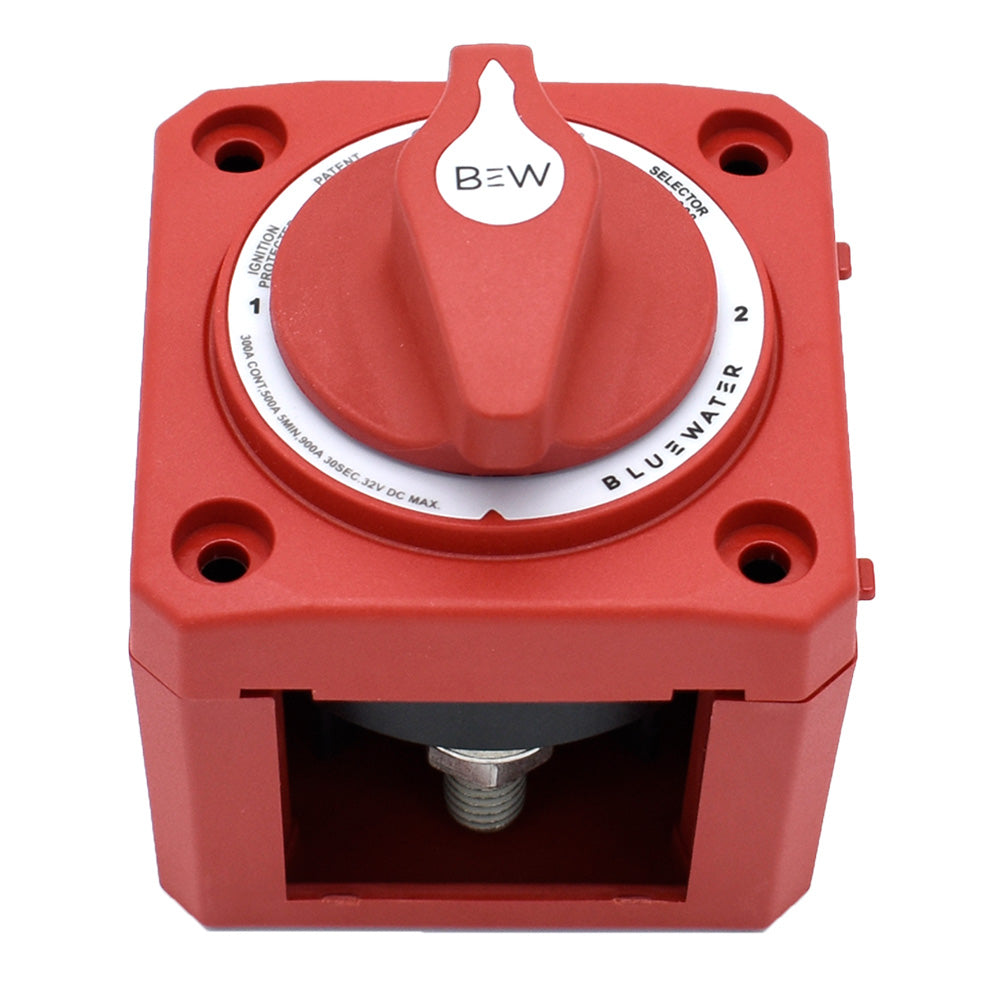

Bluewater OFF/1/2 Battery Switch, 300A DC, Surface Mount, SAE J1171 Certified

Effortlessly manage your power needs with the Bluewater OFF/1/2 Battery Switch. Designed for marine, RV, and service vehicle applications, this switch provides seamless selection between two battery sources or complete isolation in the Off position, ensuring reliable power management for your essential systems. Protect your investment and upgrade your onboard power today.

Key Benefits:

• Robust Power Handling: Features a continuous rating of 300 Amps DC, an intermittent rating of 500 Amps DC (5 min), and a cranking rating of 900 Amps DC (30 sec) to handle demanding electrical loads.
• Safe Operation: Ignition-protected and SAE J1171 Certified, ensuring safe use aboard gasoline-powered boats by preventing ignition of fuel vapors.
• Durable Construction: Built from marine-grade, non-corrosive metals and a reinforced polycarbonate housing to withstand harsh environments.
• Flexible Installation: Supports surface, front panel, or rear panel mounting for versatile integration into various applications.
• Clear Control: Offers 3 positions (OFF/1/2) for straightforward battery selection and system isolation, with tactile knob textures for easy identification by feel.
• Corrosion Resistance: Utilizes 3/8"-16 tin-plated copper studs for excellent conductivity and corrosion resistance, compatible with both 3/8" and M10 ring terminals.
• Ample Terminal Space: A 7/8" stud length accommodates multiple cable terminals, simplifying wiring configurations.
• Wide Cable Compatibility: Accommodates cable sizes up to 4/0 AWG, suitable for high-current applications.

Specifications:

• Continuous Rating: 300 Amps DC
• Intermittent Rating: 500 Amps DC (5 min)
• Cranking Rating: 900 Amps DC (30 sec)
• Maximum Voltage: 32VDC
• Ignition Protection: SAE J1171 Certified
• Positions: 3 (OFF/1/2)
• Stud Size: 3/8"-16
• Stud Length: 7/8"
• Cable Size Compatibility: Up to 4/0 AWG
• Mounting Type: Surface, Front Panel, Rear Panel
