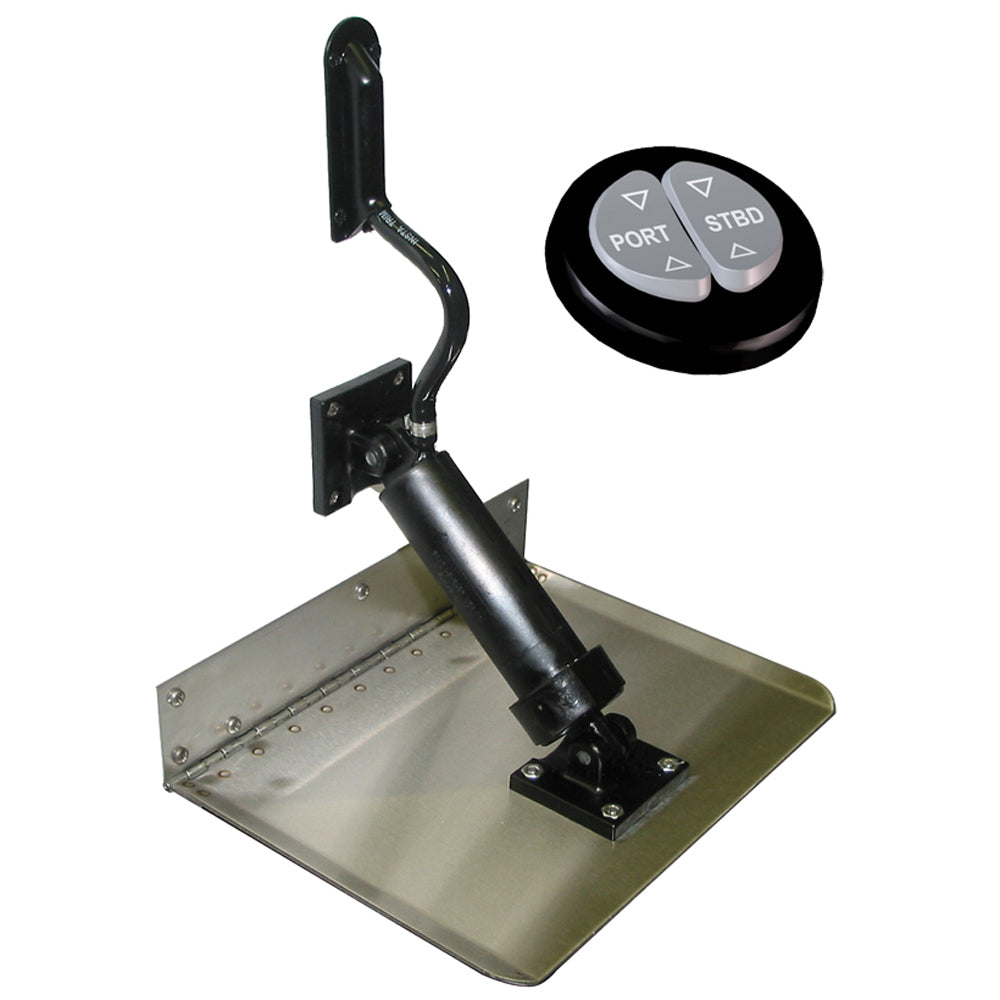

Boat Leveler Co. Insta-Trim 10" x 8" Hydraulic Trim Tab Set, Stainless Steel

Master your vessel's performance and stability with the Boat Leveler Co. Insta-Trim 10" x 8" Hydraulic Trim Tab Set. Engineered for precise control and durability, this complete system allows you to effortlessly adjust your boat's running attitude, ensuring a smoother ride, improved fuel efficiency, and enhanced handling in varying water conditions. As the original hydraulic boat leveler, Insta-Trim has been a trusted name in the marine industry for over 40 years, dedicated to delivering quality products that elevate your boating experience. Upgrade your boat's capabilities today with a system built for lasting performance.

In the Box:

• 2x 10" x 8" Stainless Steel Trim Plates
• 2x Hydraulic Cylinders with 15 ft of Hydraulic Hose
• 2x Hose Trim
• Rocker Type Dash-Mounted Controls
• 1 Pint of Insta-Trim Biodegradable Transmission Oil
• Funnel
• Mounting Hardware

Key Benefits & Features:

• Durable Construction: Crafted from robust 12-gauge 304 stainless steel, the trim tabs are guaranteed against electrolysis, ensuring strength and security for long-lasting marine use.
• Precise Hydraulic Control: The reliable hydraulic actuator system provides accurate tab positioning, with epoxy-sealed and humidity-resistant solenoids that lock tabs in any desired position, eliminating drift.
• Effortless Installation: Features 25' to 40' lengths of color-coded wiring with quick-connect fittings, designed to meet federal standards for heat, pull, and insulation for straightforward setup.
• Impact-Resistant Cylinders: Made from fiberglass-reinforced nylon, these cylinders resist UV rays and expansion, featuring two expanding seals plus an O-ring to prevent high and low-pressure leaks.
• Advanced Hydraulic Pump: Designed and engineered exclusively by Insta-Trim, the pump includes a built-in bypass factory-set at 400 PSI and circulates oil rather than stalling, ensuring consistent performance without excessive amperage draw.
• Protective Motor Cover: A high-impact ABS plastic cover (4.5" D x 6" W x 11" H) with a built-in oil reservoir mounts easily and protects the motor from washdown.
• Heavy-Duty Hose: Nylon-reinforced webbing with a protective PVC coating, rated at 2000 lb. burst pressure, ensures reliable hydraulic fluid delivery.
• Adjustable Brackets: Swivel-type brackets allow cylinders to be mounted and adjusted to any angle, incorporating knockout pins that act as shear pins if the tab strikes an object.

Compatibility & Pairings:

Designed to fit a wide range of motorboats, the Insta-Trim N108000 system is a universal solution for enhancing boat performance and stability. Pair with other Boat Leveler Co. accessories for a fully integrated trim control experience.
