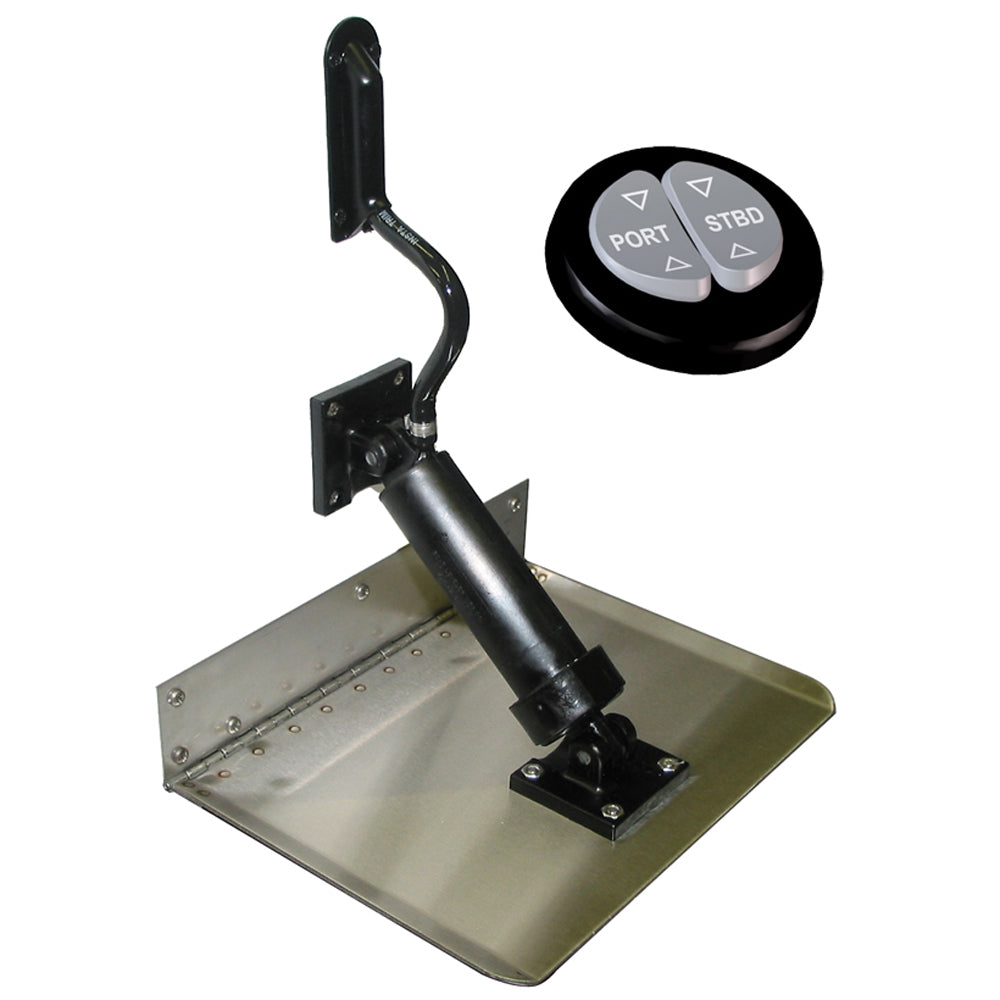

Boat Leveler Co. Insta-Trim Hydraulic Trim Tab Set, 12" x 8", Stainless Steel

Master your boat's performance and achieve a smoother ride with the Boat Leveler Co. Insta-Trim Hydraulic Trim Tab Set. As the original hydraulic boat leveler, this system provides precise control over your vessel's running angle and stability, allowing you to correct for uneven loads and optimize fuel efficiency across various sea states. Upgrade your boating experience with proven reliability and superior handling.

In the Box:

• Two (2) 12" x 8" 12 gauge 304 stainless steel trim tabs with hinges
• Hydraulic cylinders (actuators)
• Hydraulic pump with motor unit and protective cover
• Color-coded wiring (25' to 40' lengths) with quick connect fittings
• 15' of nylon-reinforced hydraulic hose
• Rocker type control switch assembly
• One pint of Insta-Trim biodegradable transmission oil
• Funnel
• Stainless steel mounting hardware

Key Benefits & Specifications:

• Durable Construction: Crafted from 12 gauge 304 stainless steel, the trim tabs are guaranteed against electrolysis, ensuring exceptional longevity in harsh marine environments.
• Precise Hydraulic Control: Features a reliable hydraulic actuator system driven by a 400 P.S.I. pump with a factory-set built-in bypass, offering fine-tuned control for optimal boat trim and preventing motor stalling.
• Easy, Compliant Installation: Includes color-coded wiring in 25' to 40' lengths with quick connect fittings, meeting federal standards for heat, pull, and insulation for straightforward setup.
• High-Pressure Hoses: Equipped with nylon-reinforced hydraulic hoses rated at 2000 lb. burst pressure, designed to prevent blow-offs and ensure secure, high-pressure operation.
• Resilient Cylinders: Impact-resistant, fiberglass-reinforced nylon cylinders eliminate expansion, resist UV rays, and feature two expanding seals plus an O-ring to prevent high and low-pressure leaks. A stainless steel spring retracts the cylinder when inactive.
• Reliable Solenoids: Custom-designed, epoxy-sealed, and humidity-resistant solenoids prevent shorting, lock tabs in any position, and eliminate driftback.
• Robust Motor System: The powerhouse motor features coated wirings to resist temperature and amperage buildup, 1 3/4" stack windings, and top mounting to prevent oil leakage, with easy disassembly for maintenance.
• Adjustable Brackets: Swivel-type brackets allow cylinders to be mounted and adjusted to any angle, incorporating knockout pins that act as shear pins if the tab strikes an object.
• Protective Motor Cover: A high-impact ABS plastic cover (4 1/2" D x 6" W x 11" H) with a built-in oil reservoir protects the motor from washdown and includes a convenient front filler for easy oil level checks.
• Versatile Hinges: Insta-Trim hinges are designed to prevent most spray and allow for versatile transom or bottom mounting options.

Compatibility:

• Ideal for boats between 18 to 20 feet in length.
• Suitable for single outboard (O.B.) and inboard/outboard (I/O) boat types.
