Brand: C. Sherman Johnson

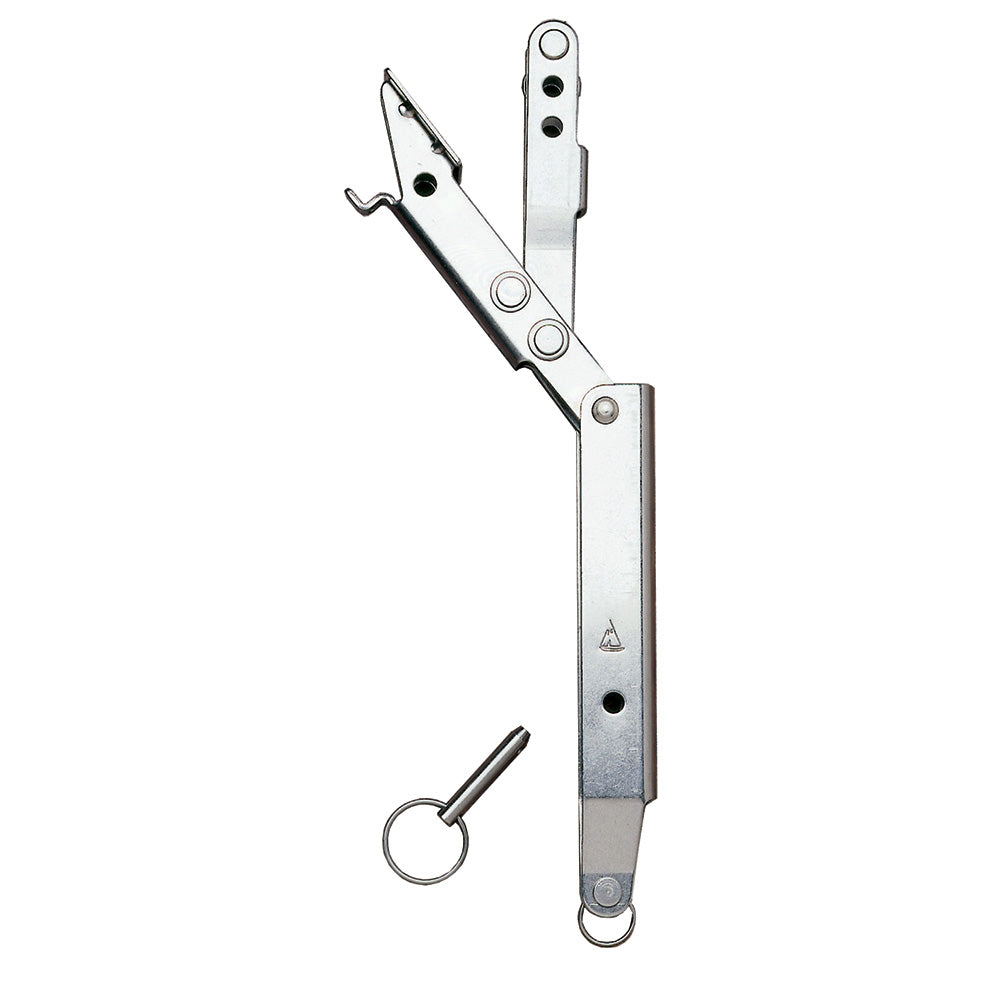

C. Sherman Johnson Quick Release Lever, 1/4 in. Pin, Model 14-205
C. Sherman Johnson Quick Release Lever, 1/4 in. Pin, Model 14-205
Last one
About this product
C. Sherman Johnson Quick Release Lever model 14-205 is a Hyfield-type sailing fitting for rigging applications on multihulls, monohulls, catamaran shrouds, and forestays. It uses a 1/4 in. pin and supports wire up to 1/8 in.
- Approximate breaking strength: 2,500 lb.
- Safe working load: 1,000 lb.
- Lever take-up: 2-1/8 in. to an over-center position
- Quick-release pin for positive locking
- Positive stop helps prevent fingers from being caught between the fitting and wire when opened under load
- Large push pad surface helps close the lever under load
- Extender arm with 3 holes; available extender pin sizes are 1/4 in. or 5/16 in.
- Maximum wire size: up to 1/8 in. wire
- Recommended applications include catamaran shrouds and forestays on trailerable boats up to 26 ft.
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-119975
- Model / MPN
- 14-205
- Package dimensions (H × W × L)
- 1" X 1" X 9"
- Package weight
- 0.7 lb
- Country of origin
- CHINA
Specifications
- Type
- C. Sherman Johnson Quick Release Lever - 1/4" Pin
- Maximum Wire Size
- Up to 1/8 in. wire
