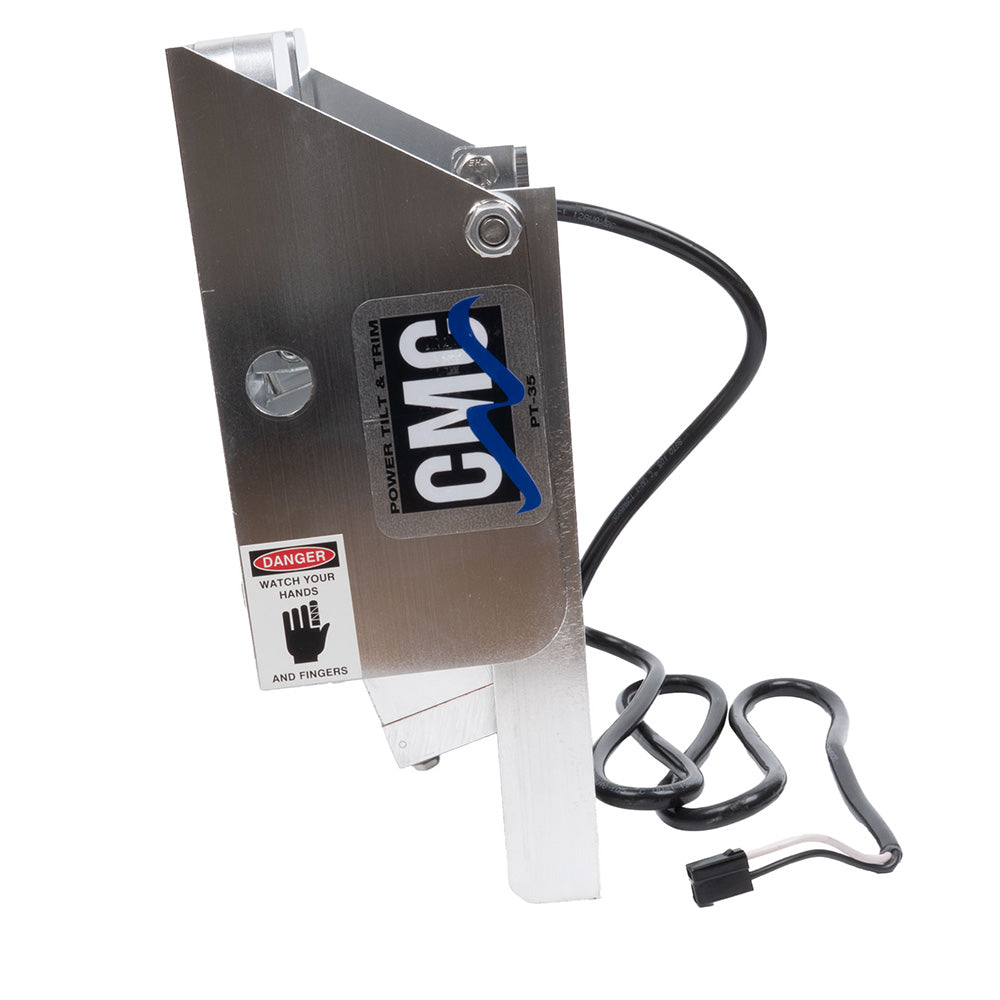

CMC Marine Products PT-35 Tilt & Trim, Up to 35hp, 5.5" Setback

Elevate your boating experience and optimize performance with the CMC PT-35 Tilt & Trim system. Engineered for outboard motors up to 35 horsepower, this robust unit provides essential adjustability for improved stability, handling, and fuel efficiency. The generous 5.5-inch setback and 84 degrees of trim and tilt allow you to fine-tune your boat's attitude for any water condition, reducing back strain and enhancing your time on the water. Upgrade your small boat or skiff with the reliability and convenience of power trim and tilt.

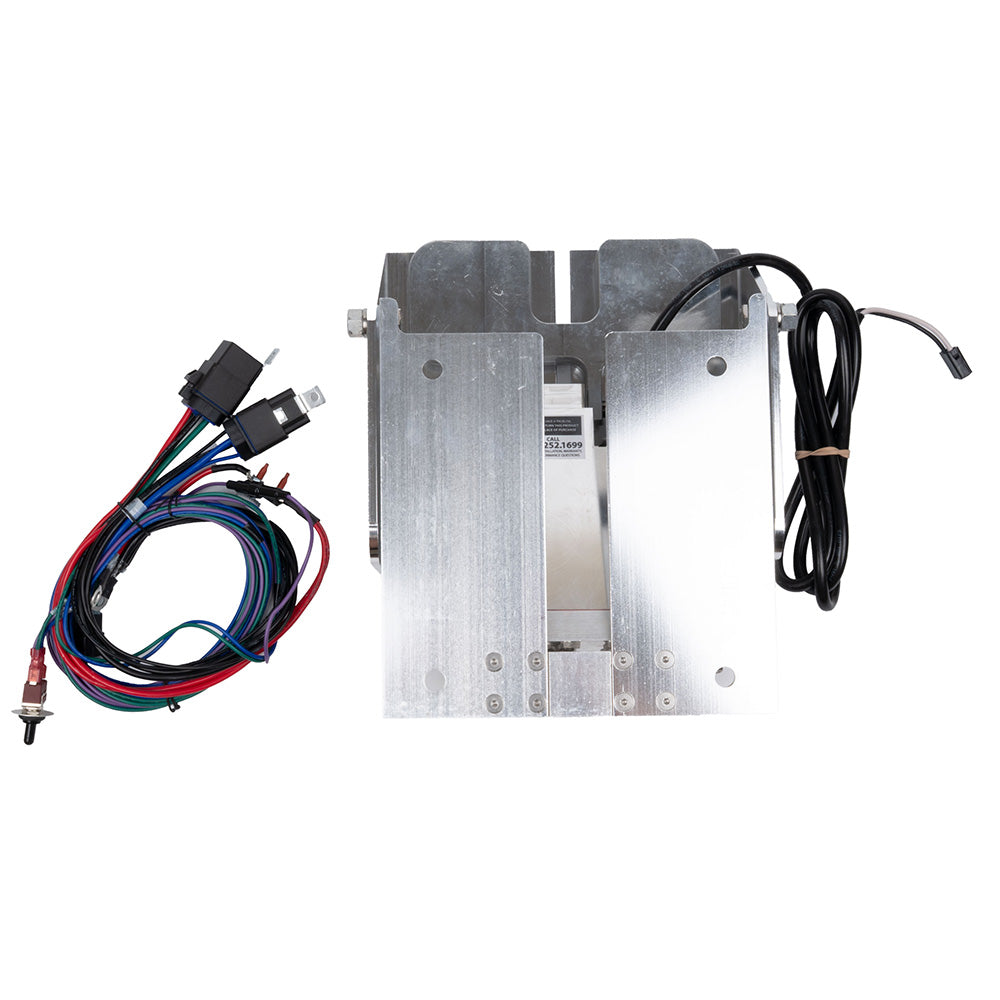

In the Box:

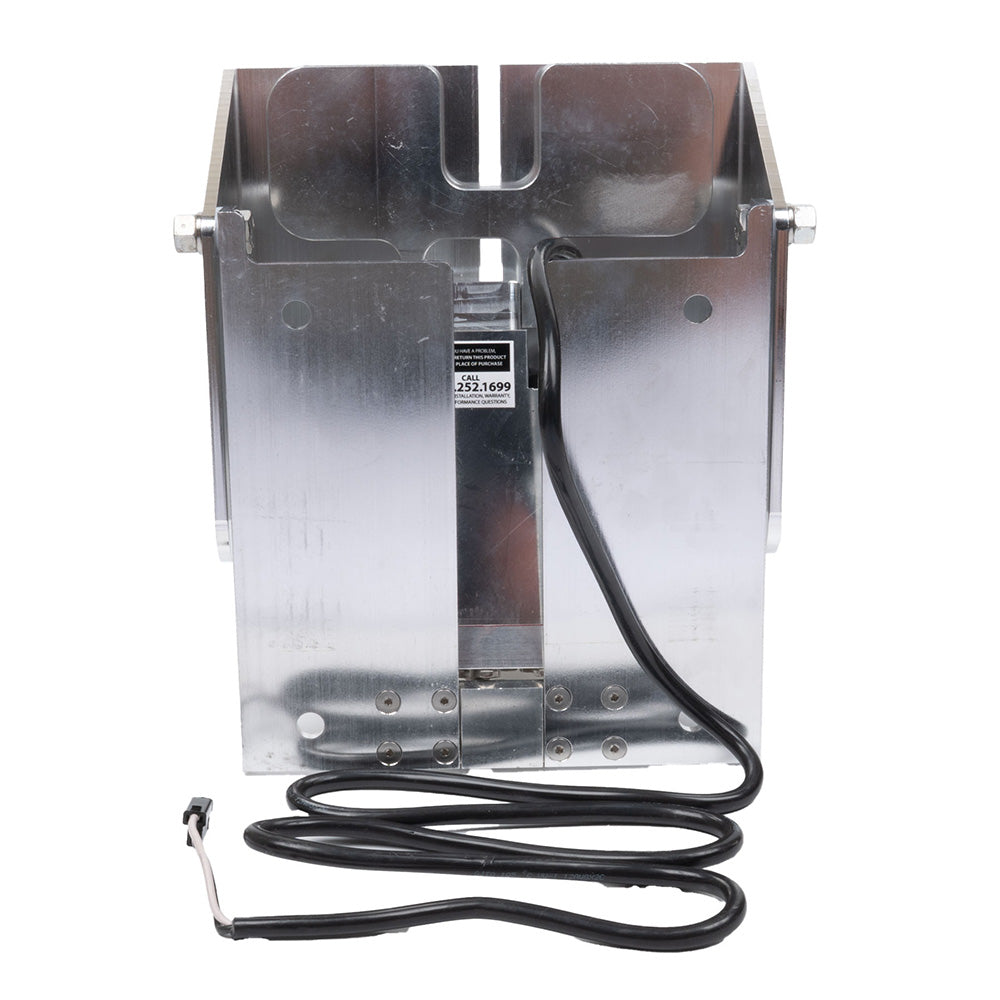

• CMC PT-35 Tilt & Trim Plate Assembly (Part 52100)

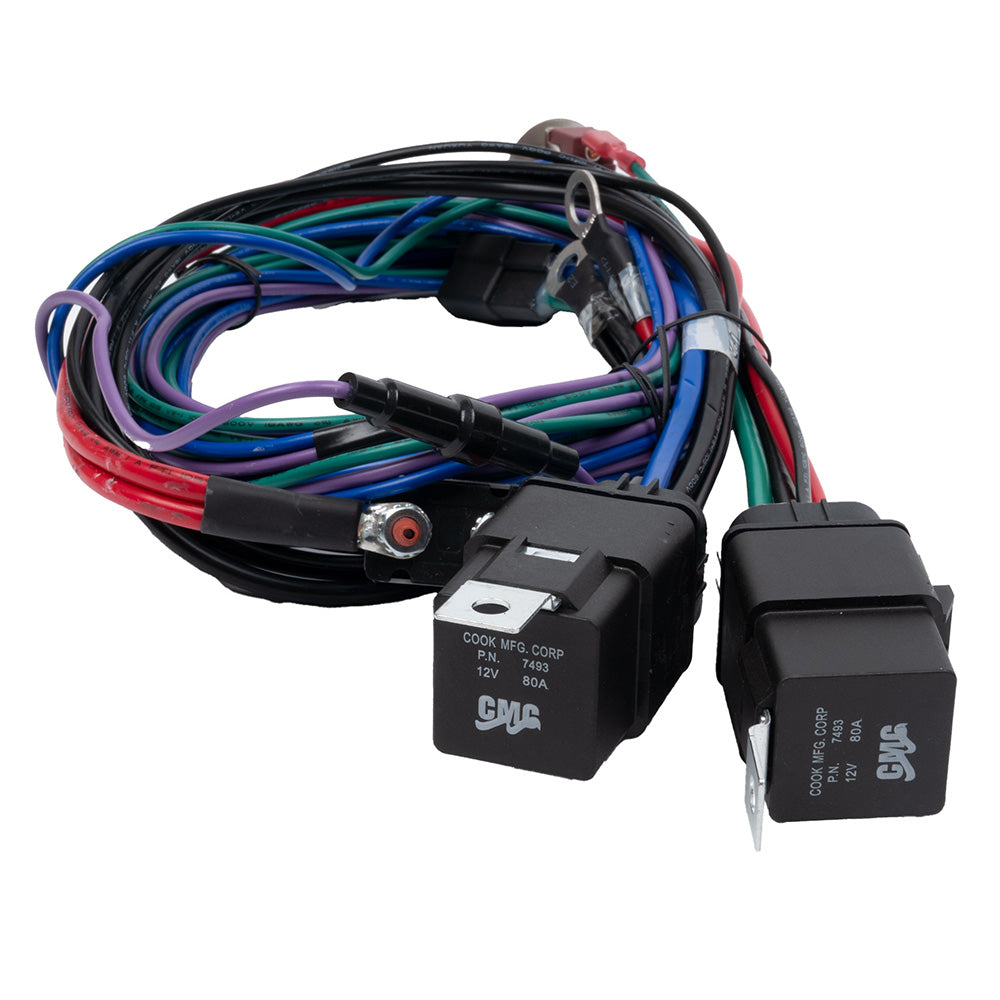

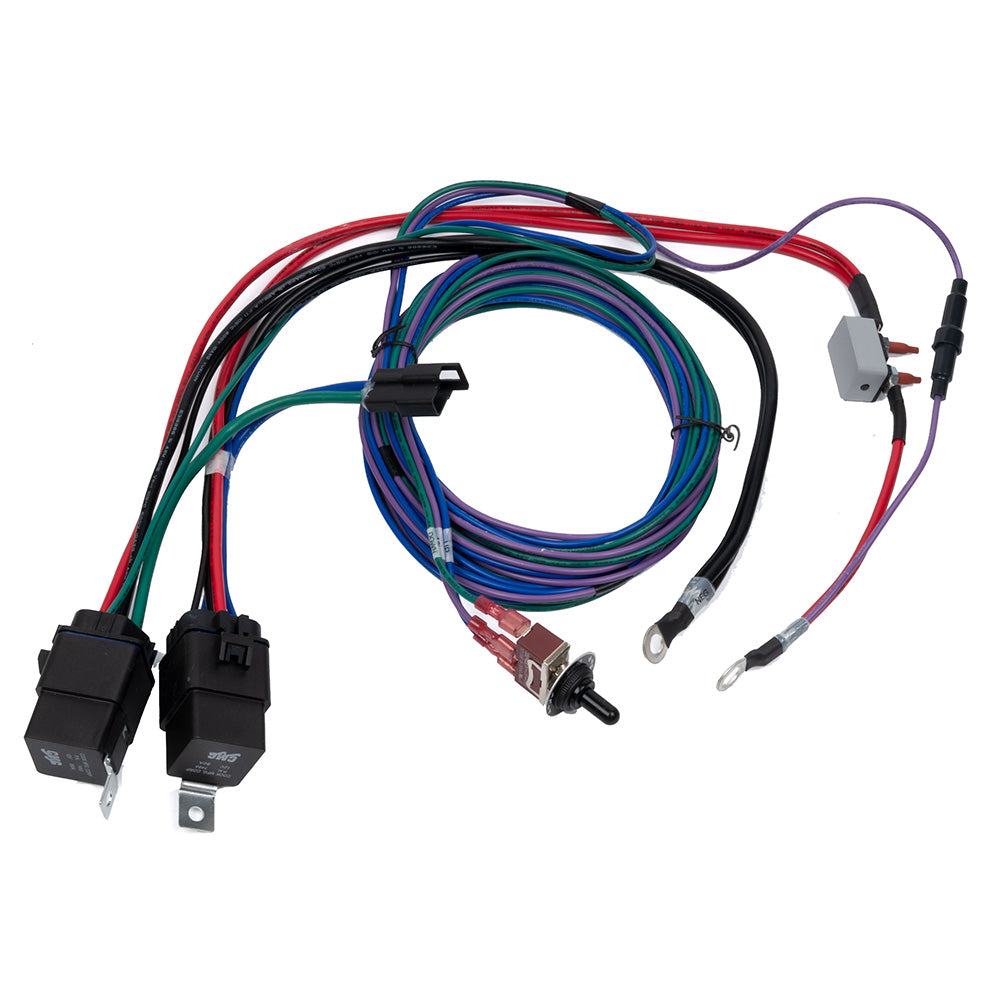

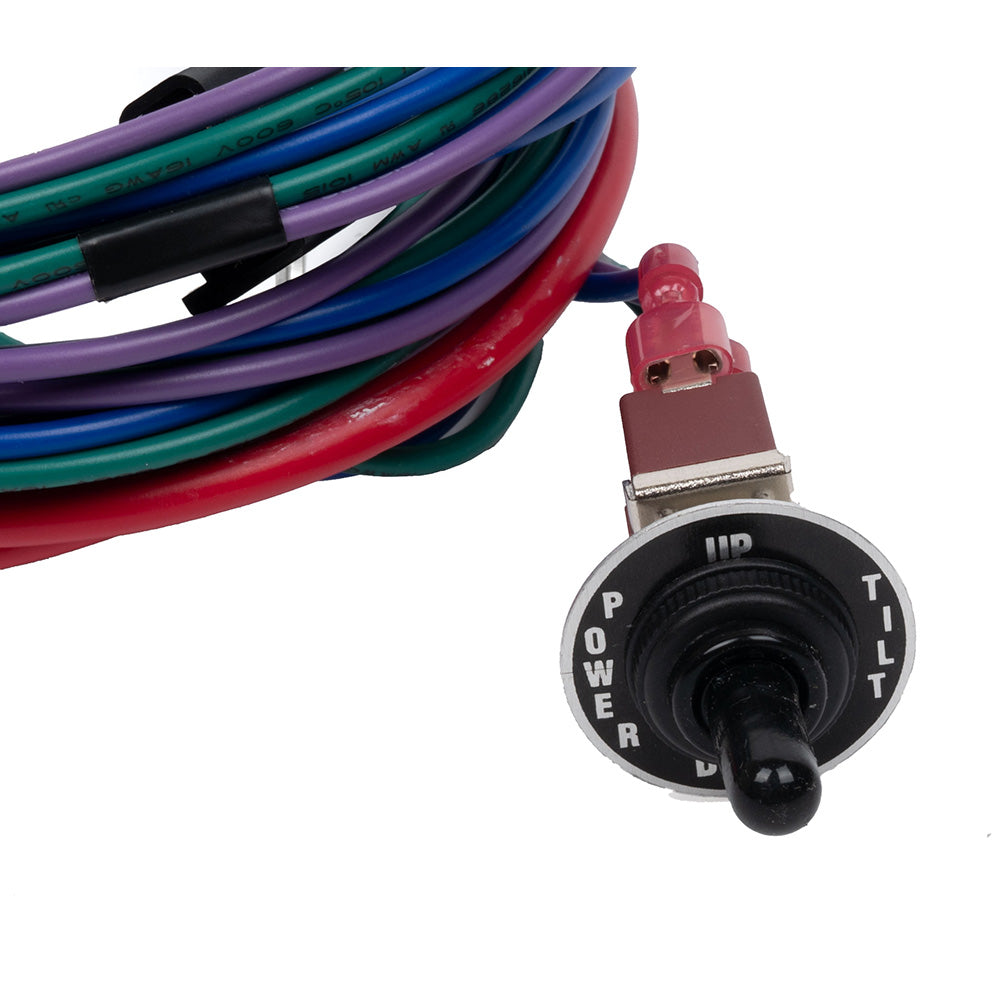

• Electric-hydraulic actuator with integrated wiring harness and toggle switch
• Mounting hardware and stainless steel fasteners
• Rubber gaskets for hull mounting
• Installation instructions and hydraulic fluid fill/bleed plug

Key Benefits:

• Optimized for Smaller Outboards: Specifically rated for motors up to 35 HP, ensuring efficient operation and maximum performance.
• Enhanced Stability & Performance: Features a 5.5-inch setback that improves boat stability, reduces prop ventilation, and increases top-end speed.
• Extensive Adjustability: Offers a full 84 degrees of trim and tilt range, allowing for precise control in shallow water, better planing, and optimal running angles.

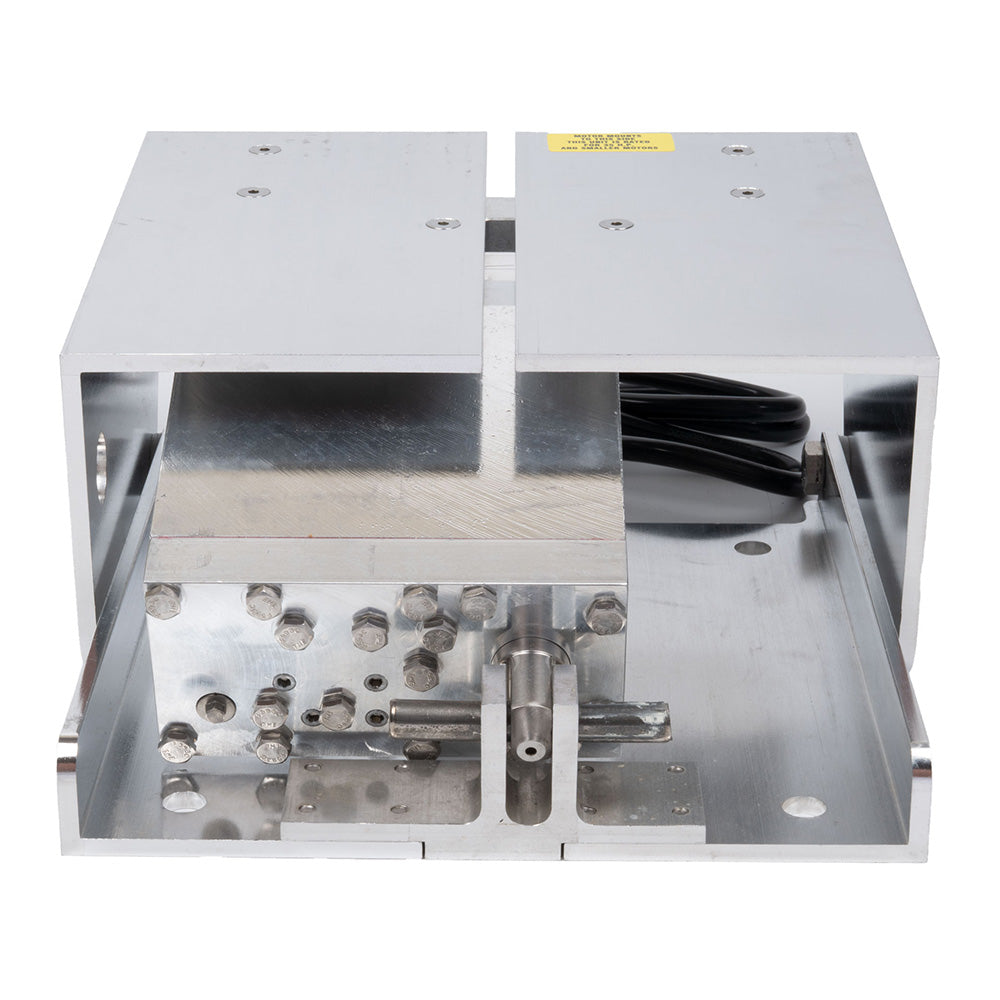

• Powerful Electric-Hydraulic Actuator: Delivers a strong 7853 lbs. of thrust for smooth, responsive, and reliable adjustment of your outboard's position.
• Durable Marine Construction: Built from heavy-duty 1/4" 6061 T6 extruded aluminum with corrosion-resistant stainless steel fasteners for long-lasting performance in marine environments.
• Accommodates Most Motors: Designed to fit clamp-on or bolt-on style outboards without the need for an adapter, simplifying installation.
• Lightweight Design: Weighing only 24 lbs., it adds minimal weight to your transom while providing significant operational advantages.
• Reduced Strain & Increased Safety: Power tilt and trim makes adjusting your motor effortless, protecting your prop from damage in shallow water and eliminating manual strain.

Specifications:

• Power Rating: Up to 35 HP
• Setback: 5.5 inches
• Trim and Tilt Range: 84 degrees
• Actuator Thrust: 7853 lbs.
• Construction: 1/4" 6061 T6 Extruded Aluminum
• Fasteners: Stainless Steel

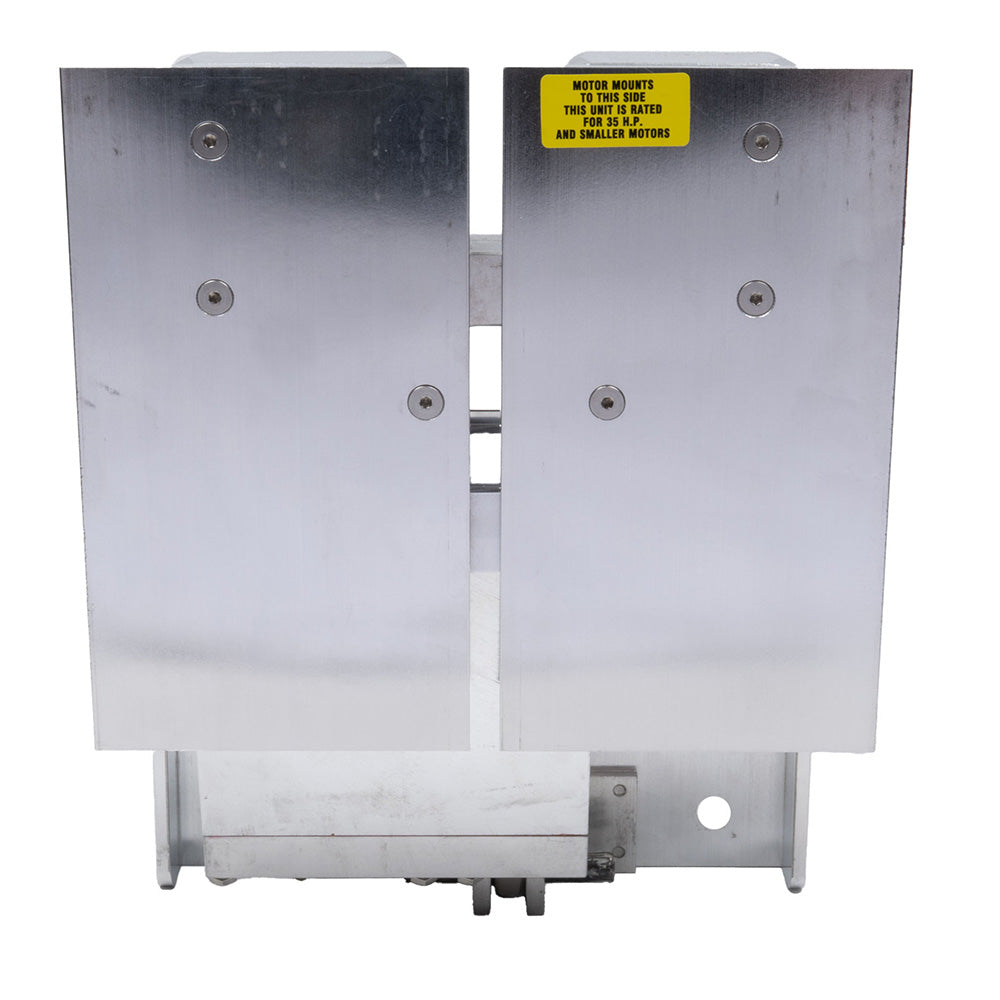

• Motor Mounting Area Width: 11 inches (Note: Please verify your motor's mounting dimensions as mounting bolts are not included)
• Weight: 24 lbs

Compatibility:

• Designed to accommodate clamp-on or bolt-on outboard motors without requiring an adapter.
• Ensure your motor's clamp mounting feet or mounting bolts do not exceed the 11-inch internal width of the mounting area.
