• Commodore On/Off Battery Disconnect Switch - 300A, Model CM-202S
  • Commodore On/Off Battery Disconnect Switch - 300A, Model CM-202S
1 2

Brand: Commodore

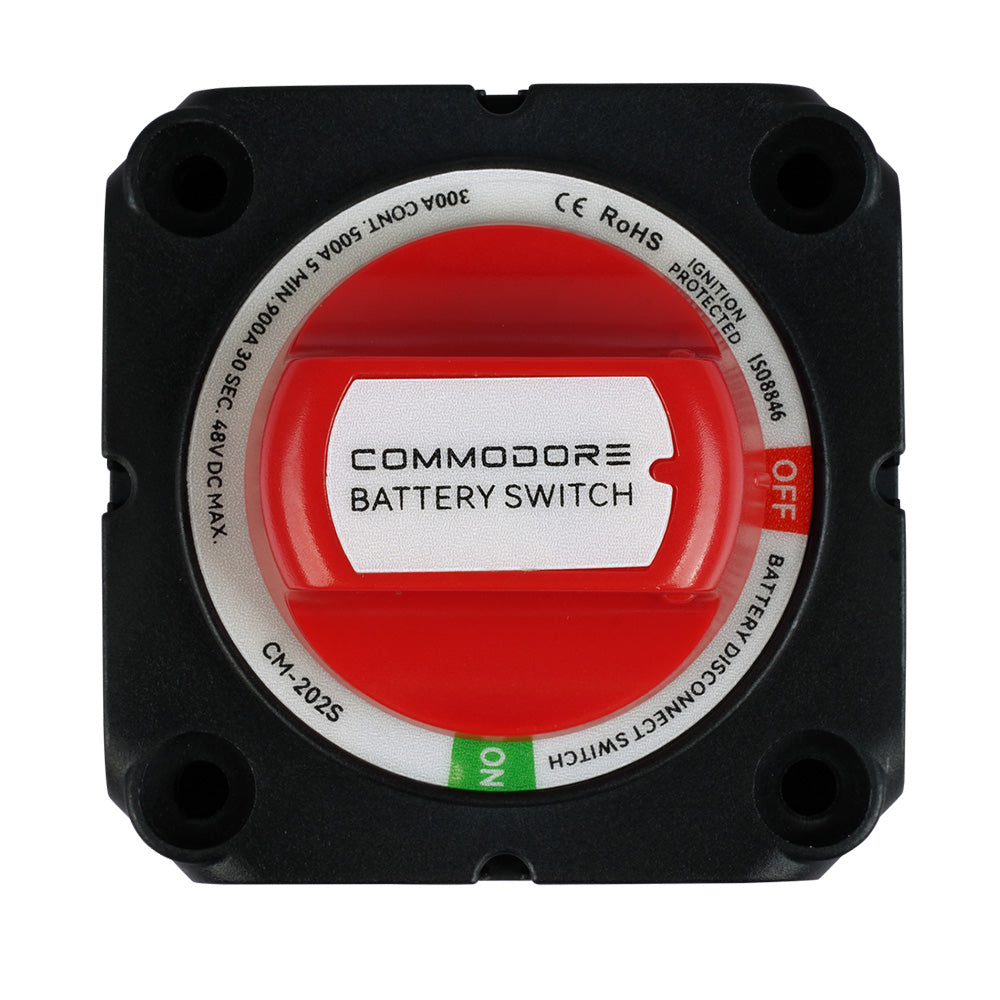

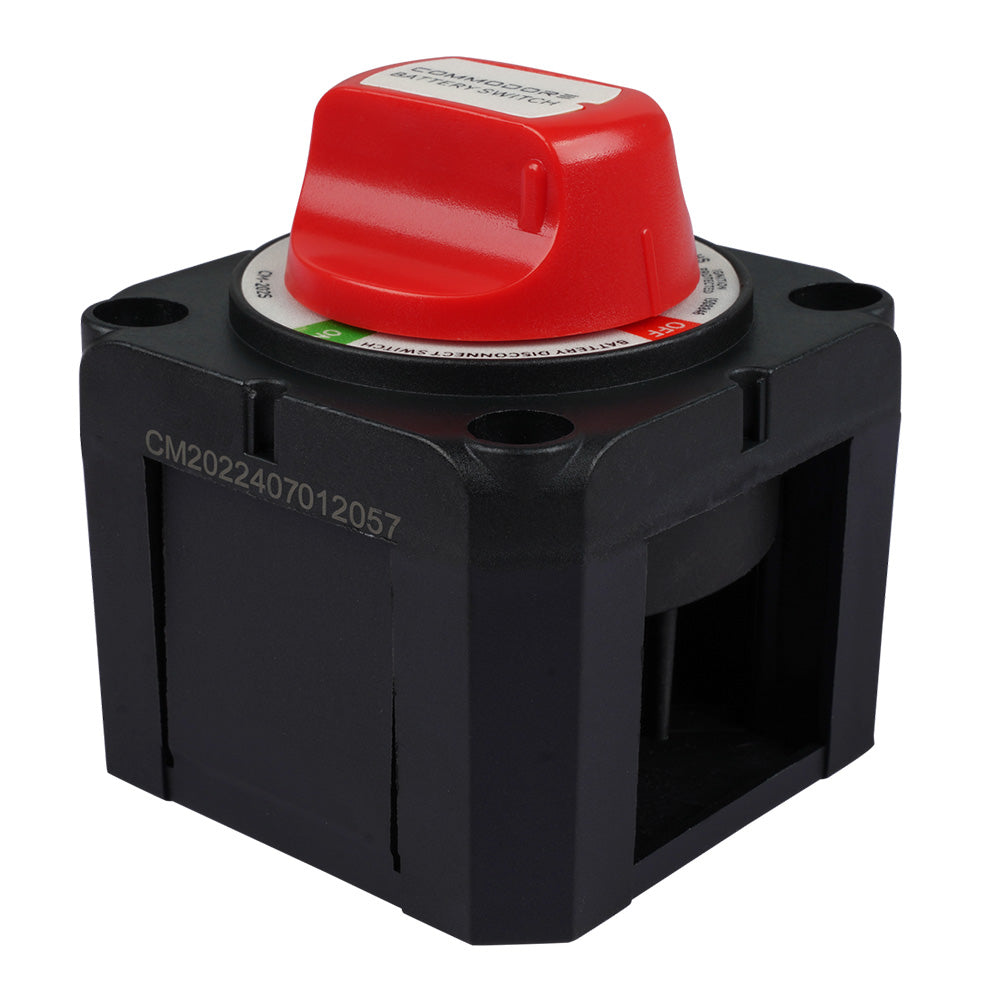

Commodore On/Off Battery Disconnect Switch - 300A, Model CM-202S

Commodore On/Off Battery Disconnect Switch - 300A, Model CM-202S

$24.02
$24.02
Sale Sold out
Shipping calculated at checkout.

8 available

About this product

The Commodore On/Off Battery Disconnect Switch (CM-202S) provides a secure, high-capacity solution for managing marine and RV electrical systems. This single-circuit switch is rated for 300A continuous use and features durable, tin-plated copper studs for optimal conductivity and corrosion resistance in harsh environments.

Key Features and Specifications:

  • Performance ratings: 300A continuous, 500A intermittent (5 min), and 900A cranking (30 sec).
  • Voltage capacity: Up to 48 VDC.
  • Safety and Compliance: IP66 water-resistant, ISO 8846 Ignition Protected, and compliant with ABYC C-7, UL 1107, and CSA C22.2 No.4 standards.
  • Versatile installation: Designed for surface or flush mounting with snap-off side pieces for flexible wiring access.
  • Connection details: 3/8"-16 (M10) terminal studs with a recommended torque of 120 in-lb (13.56 Nm).
  • Design: Single battery input with 2 switch positions and no battery combine or alternator field disconnect.
  • Physical specs: Weighs 0.65 lbs and requires #10 screws for mounting; cable clearance is 1.12 in.
  • Required cabling: 4/0 AWG (120mm2) cable is required to meet the stated ratings.

Manuals & videos

  • Secure checkout
  • 21-day return requests
  • Free standard shipping $100+

Product facts

CT SKU
CT-116297
Model / MPN
CM-202S
UPC / GTIN
817683023154
Package dimensions (H × W × L)
3" X 3" X 4"
Package weight
0.57 lb
Country of origin
CHINA

Specifications

Continuous Amperage
300
Positions
2

Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
