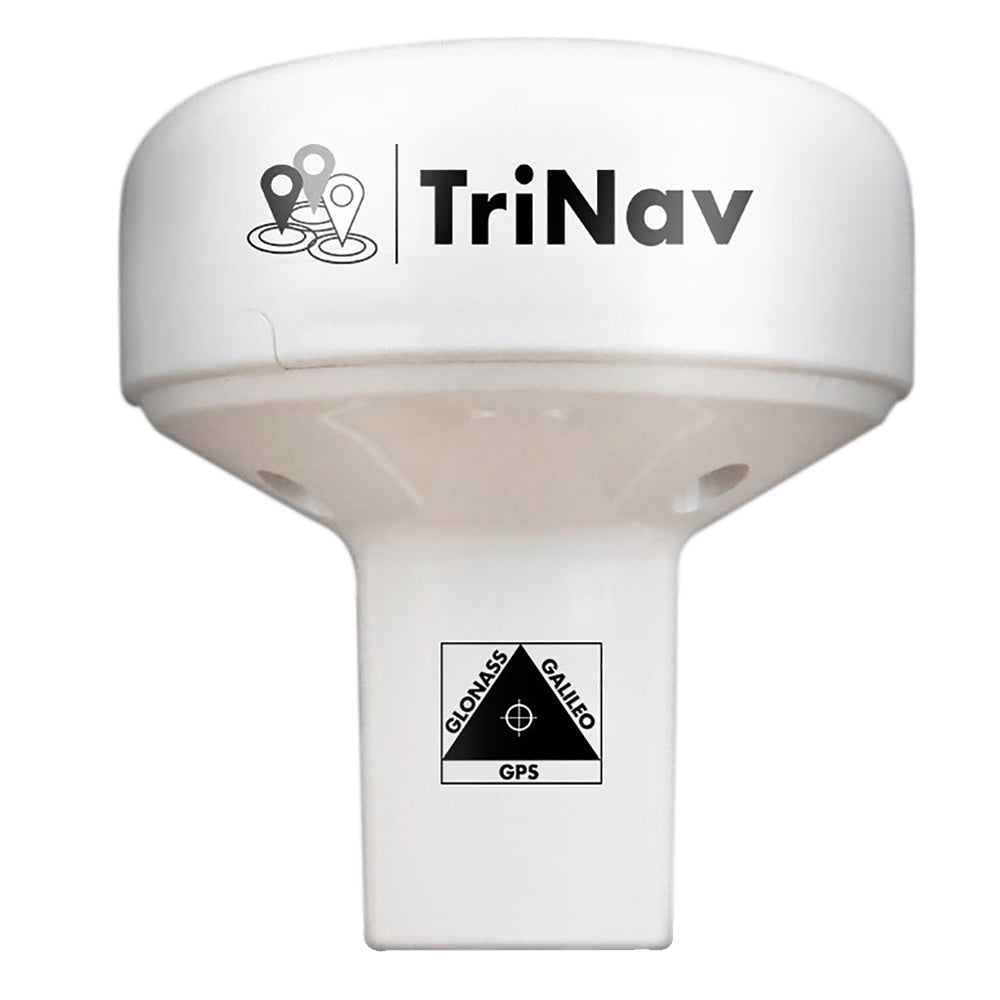

Digital Yacht GPS160 TriNav GPS Sensor with NMEA 0183 Output

The Digital Yacht GPS160 is a high-performance 72-channel positioning sensor designed to provide precise location data by simultaneously utilizing GPS, Galileo, and Glonass satellite constellations. Featuring TriNav technology, this sensor delivers sub-1m accuracy and includes advanced anti-spoofing algorithms for reliable performance in demanding marine environments.

• Supports GPS, Glonass, and Galileo GNSS systems
• NMEA 0183 output with user-selectable baud rates (4800, 38400, and 115200)
• Configurable update rate up to 18Hz
• Low power consumption: less than 20mA at 12V DC
• Includes support for an external Man Overboard (MOB) switch, which generates synthetic AIS MOB messages on the NMEA output
• Compatible with professional ECDIS systems using DTM, GBS, GNS, GRS, GSA, and GST sentence structures
• Supports installation via included puck mount or standard 1" x 14 TPI threaded mounts
• Model number: ZDIGGPS160

The device is field-configurable for single-GNSS operation and various output settings via internal DIP switches. While this specific model provides NMEA 0183 connectivity, the GPS160 is also compatible with NMEA 2000 networks when paired with an iKonvert interface.
