Digital Yacht iSeaSense Wireless Speed, Depth, and Temperature Pack (ZDIGISSPK1)

The Digital Yacht iSeaSense Wireless Speed, Depth, and Temperature Pack provides a complete marine instrumentation solution that enables you to view boat data on tablets, smartphones, and computers without the need for additional apps. By utilizing a web-based interface, this system displays real-time information via any standard browser, offering a flexible and intuitive alternative to traditional marine displays.

Key System Components:

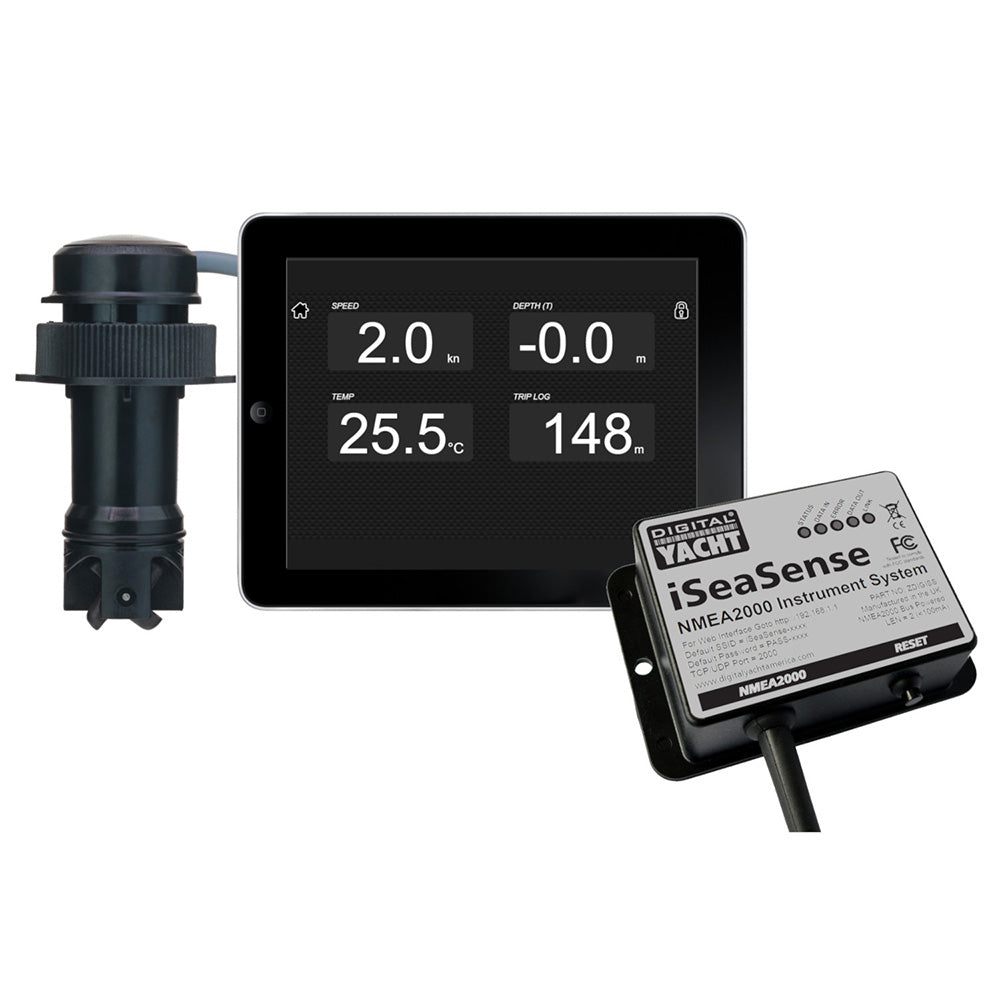

• Includes the iSeaSense wireless server and a high-performance transducer for measuring depth, speed, water temperature, and boat pitch and heel.
• Complete NMEA 2000 backbone cabling kit included for straightforward installation and system expansion.
• Integrated web server provides graphical and numeric instrument pages with fast 5Hz update rates.
• Compatible with iOS, Android, PC, Linux, and Mac, as well as e-ink displays.
• Supports connections for up to 3 devices directly for instrument viewing, plus additional TCP/IP and UDP data output for up to 7 devices for use with third-party navigation apps.

Transducer Specifications:

• Operates at 235KHz to prevent interference with standard fish finders.
• Maximum depth rating of 100 meters.
• Supports hull deadrise angles up to 22 degrees.
• Speed range: 0.3 to 45 knots.
• Standard 2-inch thru-hull mounting.
• Includes a 6-meter NMEA 2000 cable.

The system features an advanced calibration algorithm that adjusts speed data based on boat heel and transducer location, ensuring high accuracy. The included NMEA 2000 network interface is self-powered by the backbone, simplifying the electrical setup on board.
