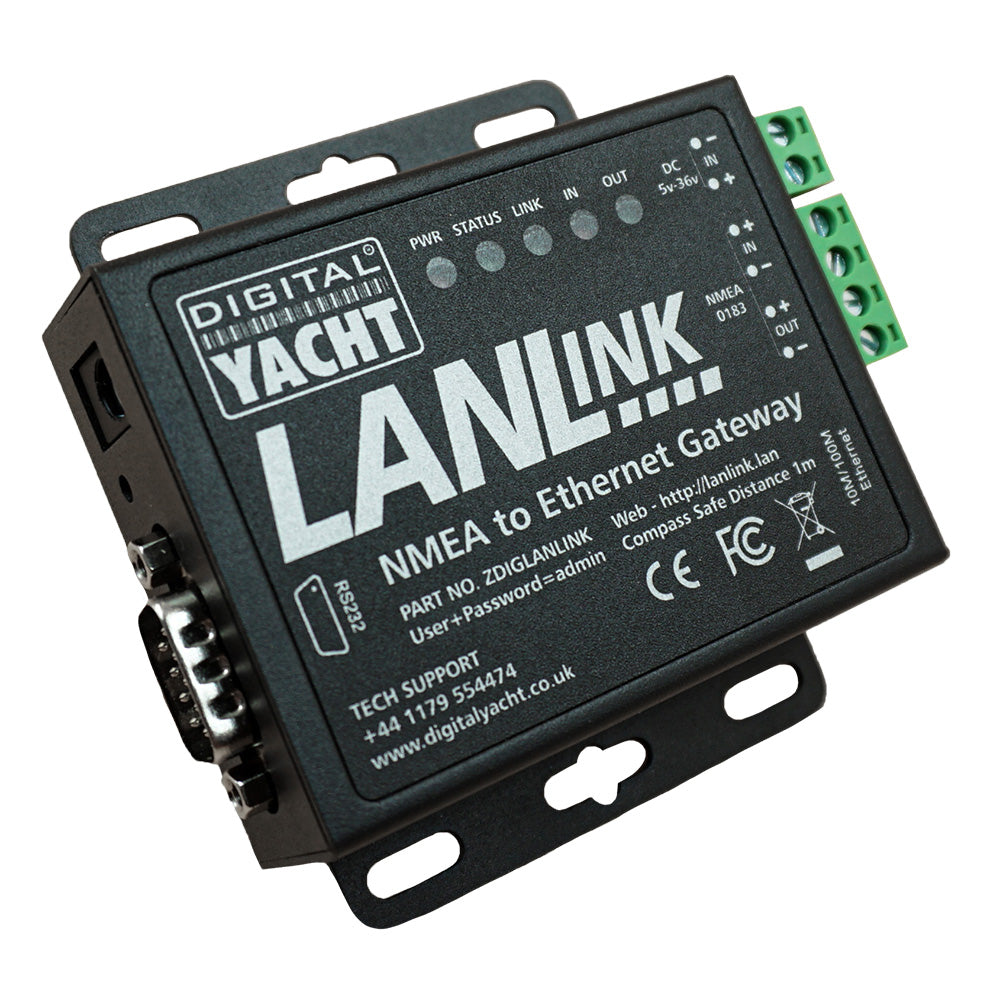

Digital Yacht LANLink NMEA 0183 to Ethernet Gateway, Marine Data Integration

Seamlessly integrate your critical marine navigation data into your onboard network with the Digital Yacht LANLink NMEA 0183 to Ethernet Gateway. This robust device converts traditional NMEA 0183 data, enabling modern chartplotters, tablets, and smartphones to access vital information like GPS, AIS, and instrument data over your vessel's Ethernet or Wi-Fi network. Designed for ease of use and reliability, the LANLink ensures your navigation systems are always connected. Upgrade your vessel's digital capabilities and navigate with enhanced awareness.

Key Benefits & Features:

• NMEA 0183 to Ethernet Conversion: Transforms traditional NMEA 0183 signals into IP data, facilitating seamless integration with modern marine electronics and applications.
• Low Power Consumption: Operates efficiently with a 10-35V DC input range, drawing approximately 50mA at 12V DC, making it ideal for continuous use on marine battery systems.
• Multi-Device Connectivity: Supports up to 5 simultaneous TCP/IP connections, allowing multiple devices like MFDs, laptops, tablets, and smartphones to access real-time navigation data concurrently.
• Configurable Baud Rates: Features configurable NMEA baud rates of 4800 or 38400, ensuring broad compatibility with a wide array of NMEA 0183 instruments and sensors.
• Bi-Directional Communication: Enables both sending and receiving of NMEA 0183 data over the network, enhancing the versatility of your marine data system.
• Intuitive Web User Interface: Simplifies setup and configuration from any connected device with a web browser, eliminating the need for complex software installations.
• Flexible Network Modes: Supports both TCP/IP and UDP connection modes, offering adaptable networking options to suit various onboard network architectures.
• Robust Operating Temperature: Engineered to perform reliably across a wide temperature range from -25°C to +70°C, ensuring durability in diverse marine environments.
• Compact & Durable Design: Features compact dimensions of 95mm x 86mm, facilitating easy installation in confined spaces, and includes an Ethernet RJ45 10/100MB network port.
• Diagnostic LED Indicators: Provides at-a-glance operational status for power, data in/out, network link, and server status, aiding in quick diagnostics.
• Opto-Isolated Inputs: Equipped with opto-isolated NMEA 0183 inputs for enhanced reliability and effective noise reduction, protecting your sensitive electronics.

Compatibility & Pairings:

The LANLink gateway seamlessly integrates with popular marine navigation applications including TZ iBoat, iNavX, Navionics, NavLink, iSailor, Imray, Weather4D, and SailGrib.
