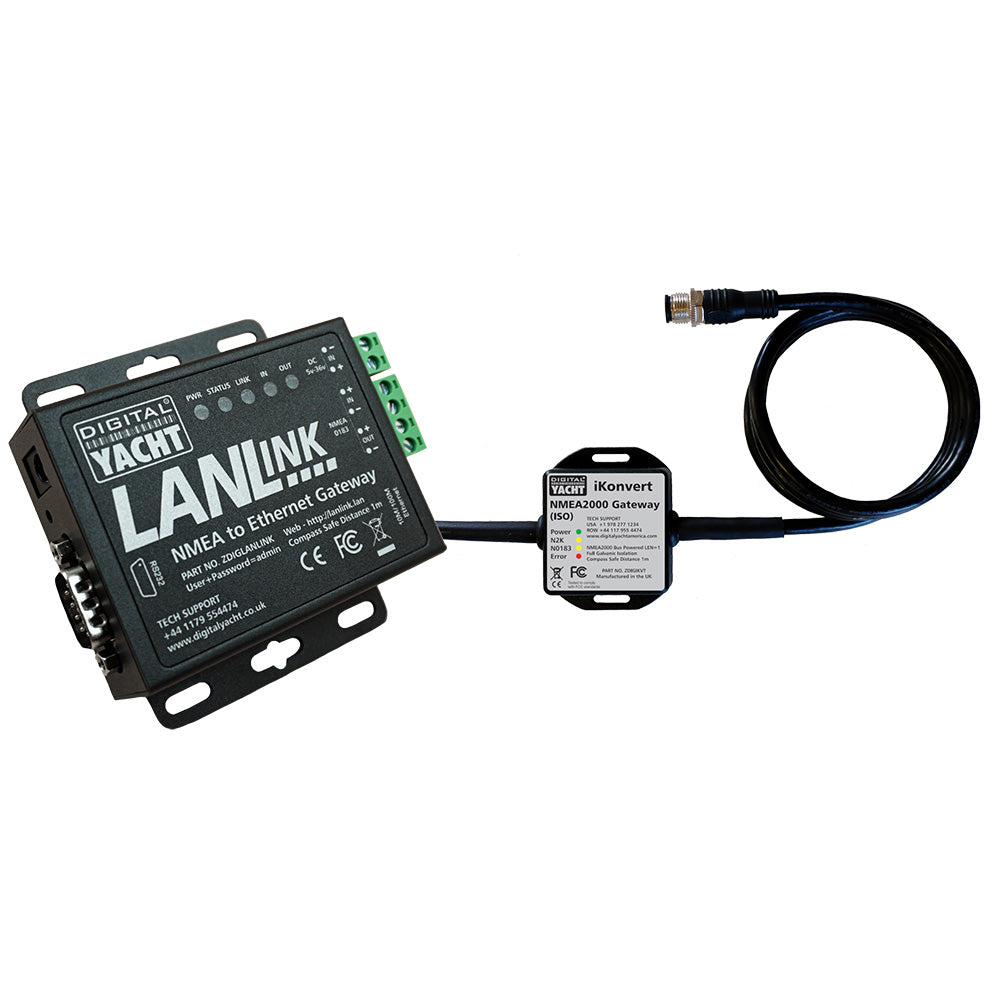

Digital Yacht LANLink NMEA 2000 to Ethernet Gateway

The Digital Yacht LANLink NMEA 2000 to Ethernet Gateway integrates your boat's NMEA 2000 data into an onboard wireless router network, allowing connected devices and marine applications to access critical instrument, GPS, and AIS data. This unit is bi-directional and provides a straightforward way to stream NMEA data to apps including TZ iBoat, iNavX, NavLink, iSailor, Imray, and Weather 4D.

Key Features:

• Ships with an iKonvert NMEA Certified gateway for connection to the NMEA 2000 backbone.
• Supports TCP/IP (up to 5 connected devices) or UDP connection modes.
• Web-based user interface for configuration, diagnostics, and setup via browser.
• Low power consumption of approximately 50mA at 12V DC.
• Features LED indicators for power, network link, server status, and data traffic.
• Includes an RS232 port for PC-based application connectivity.

Technical Specifications:

• Operating Voltage: 10-35V DC.
• Network Connectivity: Ethernet RJ45 10/100MB port.
• IP Configuration: Supports static or DHCP addressing.
• Operating Temperature: -25 to +70 deg C.
• Dimensions: 95mm x 86mm.
• Installation: Connects to a router or device via standard Cat 5/6 patch cable.
