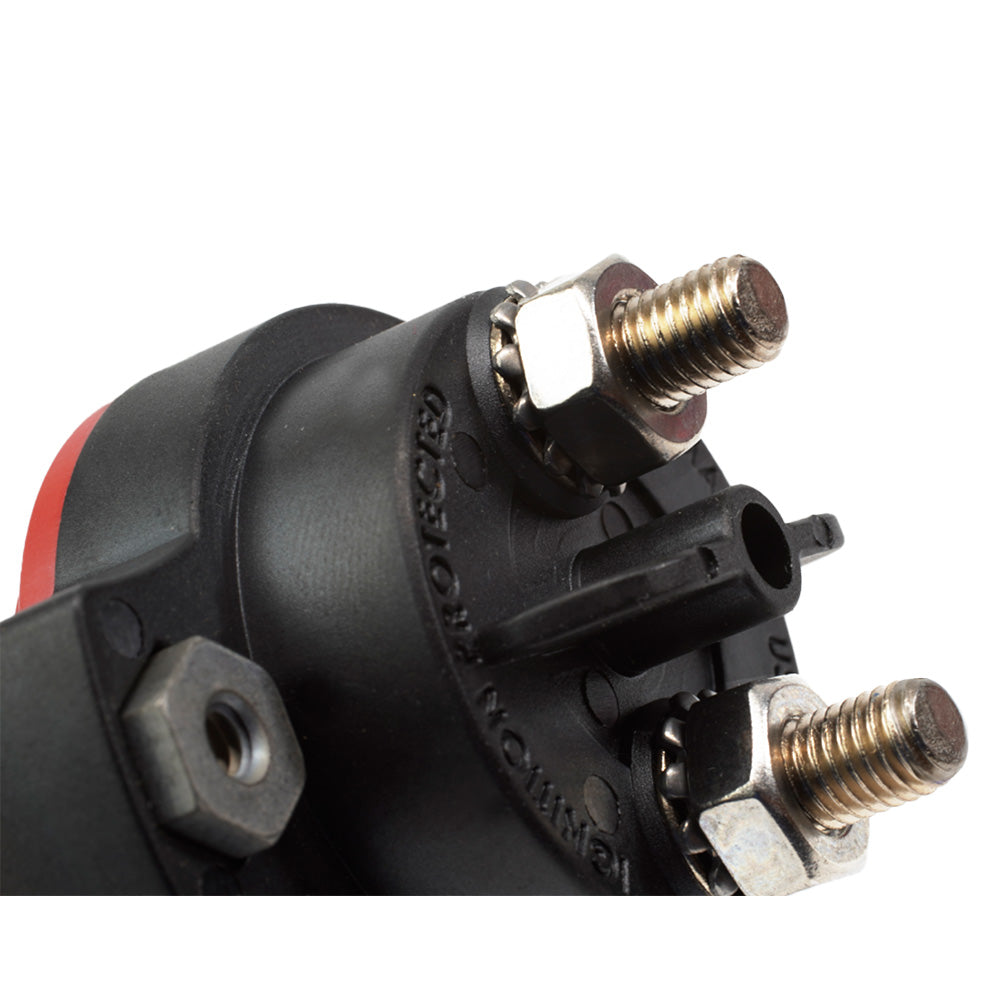

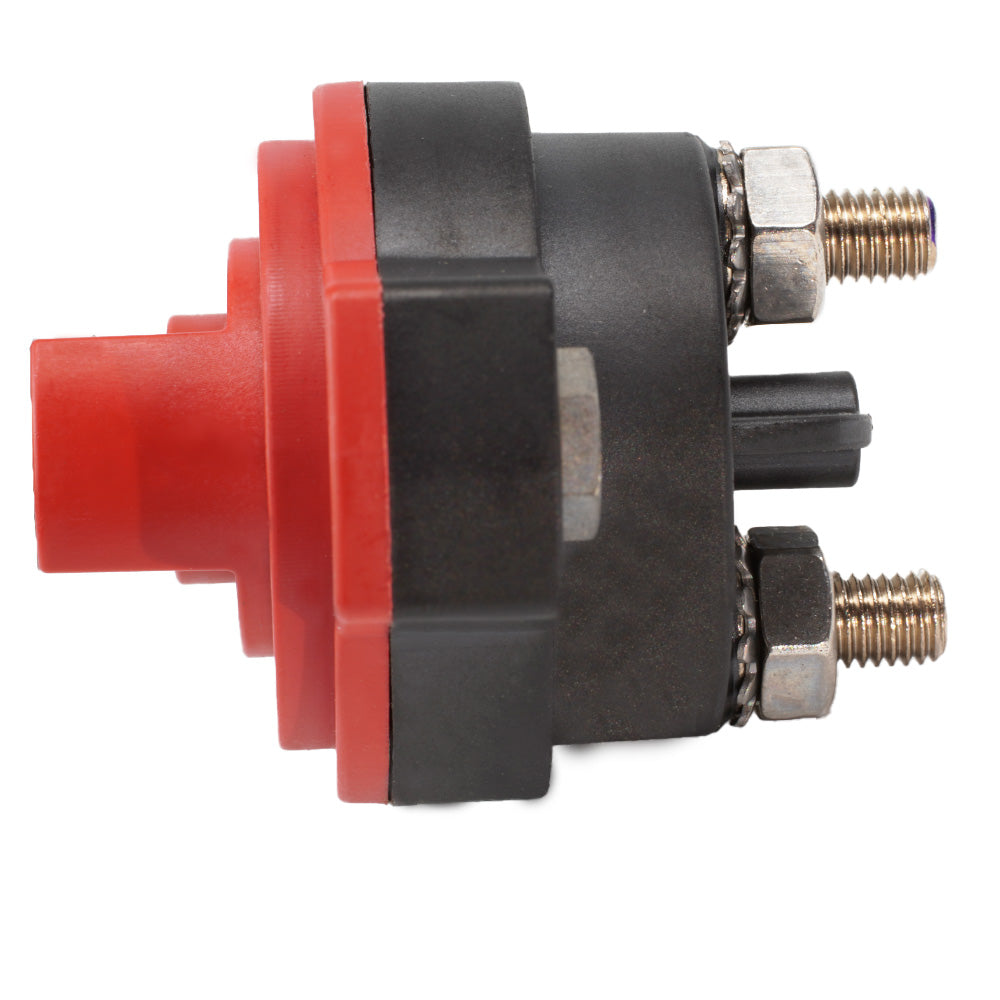

Egis Mobile Electric Panel Mount Mini Breaker Disconnect Switch, 40A, 42Vdc

Protect and control your marine or mobile electrical systems with the Egis Mobile Electric 4701-40 Panel Mount Mini Breaker Disconnect Switch. This robust 2-in-1 solution combines essential circuit protection against short-circuit events and over-current loads with the convenience of a manual ON/OFF disconnect switch. Proudly made in the USA and designed for harsh environments, it ensures reliable operation for your critical circuits. Upgrade to Egis for superior electrical safety and control.

Key Benefits & Features:

• Dual Functionality: Integrates automatic circuit protection with a manual ON/OFF rotary switch, ideal for isolating load circuits and performing maintenance.
• High Capacity Protection: Features a 40A continuous current rating, 42Vdc maximum voltage rating, and a high interrupt current of 3,000A at 14VDC to safely protect circuits connected to large battery banks.
• Versatile Application: Perfectly suited for 12, 24, and 36V DC systems, making it an ideal choice for trolling motor circuit switching and various marine or vehicle electrical systems.
• Extreme Durability: IP66 sealed construction provides superior protection against dust and water intrusion, while stainless steel self-locking hardware offers corrosion and vibration resistance.
• Ignition Protected: Engineered for safety in confined spaces with potential explosive gases, allowing for secure installation in engine compartments.
• Long-Lasting Performance: Delivers high electrical and manual switching endurance of up to 4,000 cycles, with 2,000 cycles at full current.
• Certified Quality: CE Marked and proudly Made in the USA, ensuring adherence to high manufacturing standards.
• Peace of Mind: Backed by a limited 4-year warranty for assured reliability.

Specifications:

• Ampere Rating: 40A
• Voltage Rating: 42 VDC
• Reset Type: Manual and Switchable
• Terminal Connection: 1/4 Inch-28 Stud
• Ingress Protection: IP66
• Interrupt Current: 3,000A @ 14VDC
• Cycle Switching Endurance: Up to 4,000 cycles (2,000 at full current)
