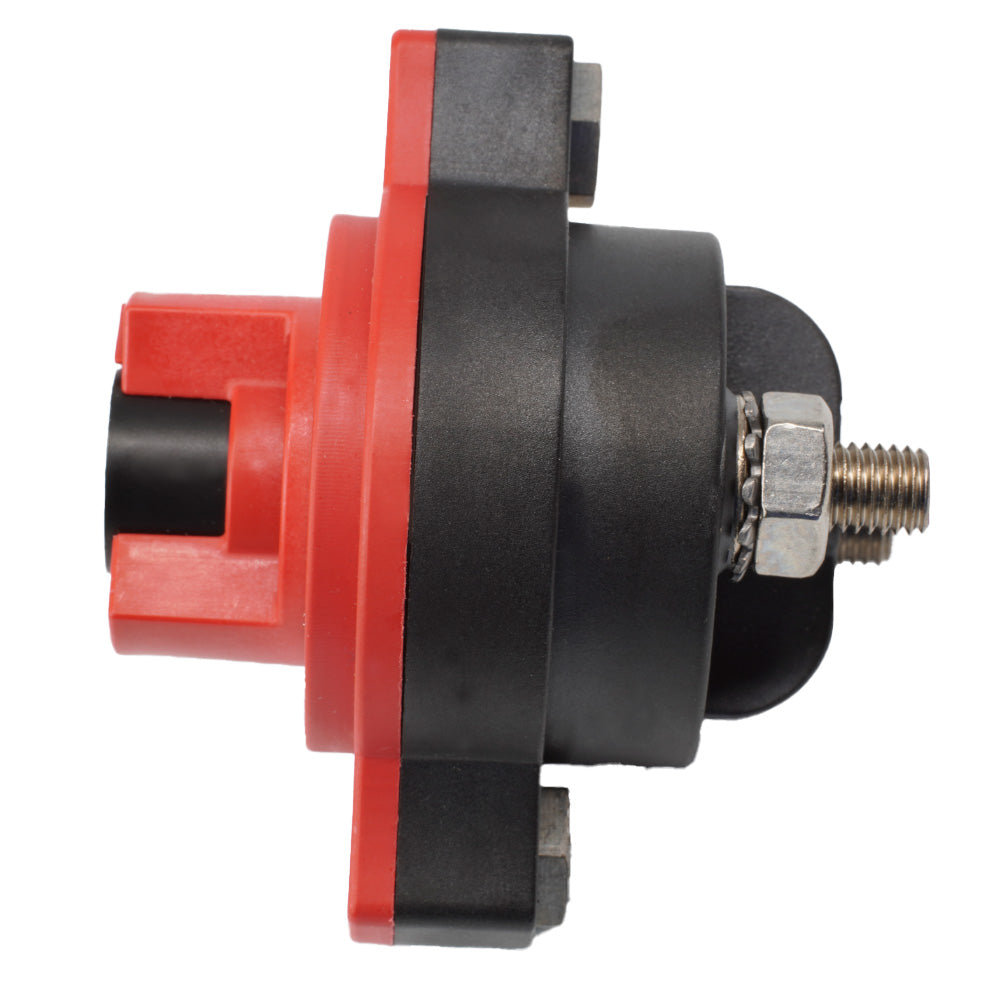

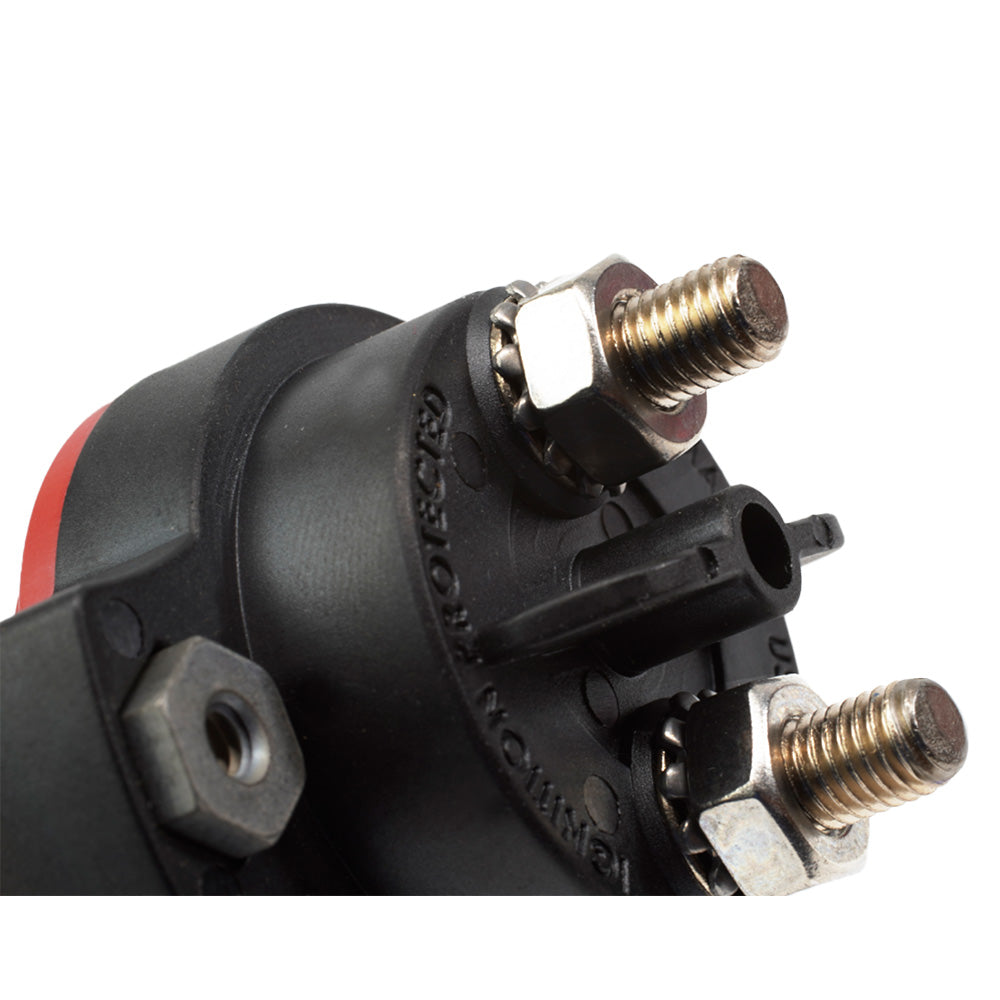

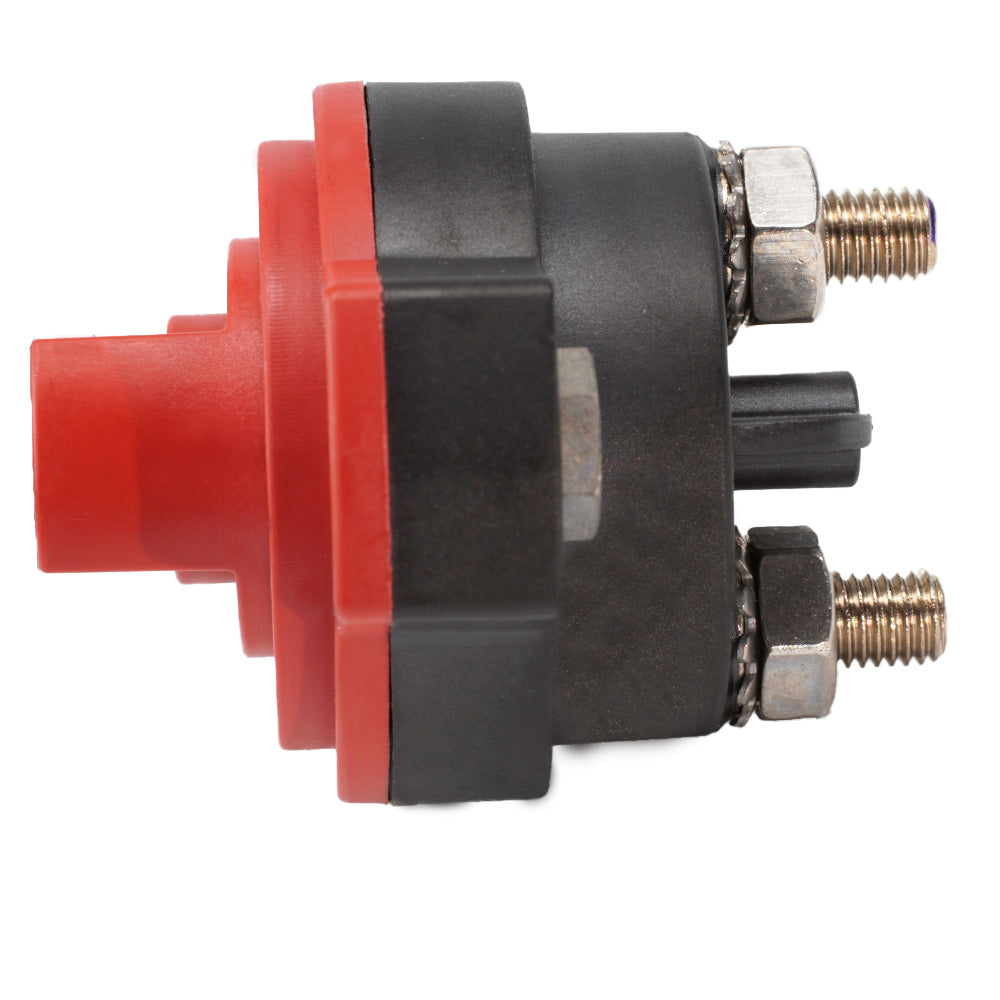

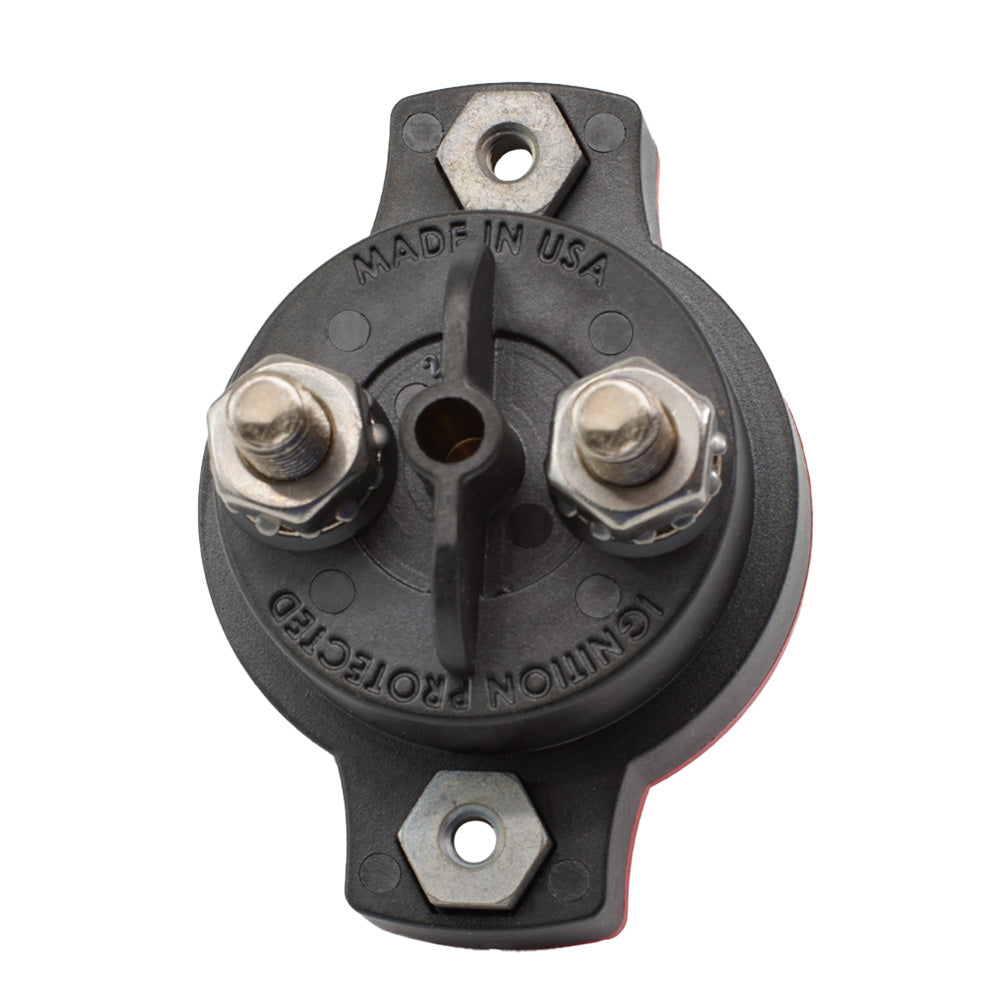

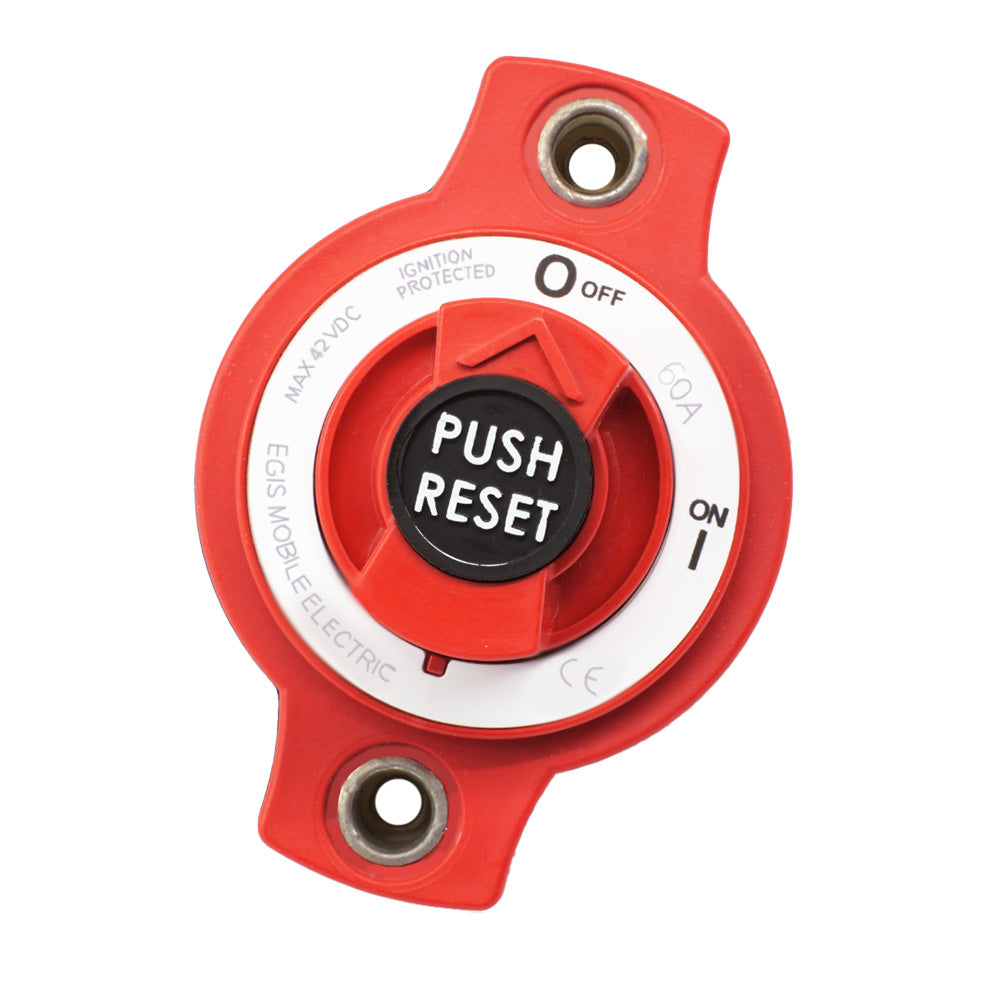

Egis 4701-60 60A IP66 Mini Circuit Breaker, Ignition Protected

Ensure robust electrical system protection and control with the Egis 4701-60 Mini Circuit Breaker. This versatile 2-in-1 unit seamlessly combines automatic circuit protection with manual on/off switching, ideal for demanding applications such as trolling motors and other marine or mobile DC systems. Proudly made in the USA and backed by a 4-year warranty, this breaker offers reliable performance and peace of mind in harsh environments. Upgrade your electrical setup today for superior safety and functionality.

In the Box:

• Egis 4701-60 60A Panel Mount Mini Circuit Breaker Unit
• Stainless steel mounting hardware

Key Benefits:

• Dual Functionality: Integrates both automatic circuit protection against over-currents and short circuits with manual on/off switching for versatile control.
• High Current Capacity: Features a 60A continuous current rating to handle significant electrical loads.
• Broad Voltage Support: Rated for up to 42 Vdc, making it suitable for common 12V, 24V, and 36V DC systems.
• Superior Protection: Boasts a high interrupt current of 3,000 Amps at 14 VDC to safely protect circuits connected to high-power battery banks.
• Durable & Reliable: Offers 3,000 cycles of switching endurance for long-term mechanical and electrical reliability.
• Harsh Environment Ready: IP66 rated, meaning it is dust-tight and protected against powerful water jets.
• Ignition Protected: Designed for safe installation in compartments where explosive gases may be present.
• Built to Last: Constructed with corrosion and vibration-resistant stainless steel hardware for harsh marine and mobile applications.
• Quality Manufacturing: Proudly made in the USA.
• Extended Support: Comes with a 4-year manufacturer warranty for added confidence.

Specifications:

• Continuous Current: 60 Amps
• Max Voltage: 42 Vdc
• Interrupt Current @ 14 VDC: 3,000 Amps
• Cycle Switching Endurance: 3,000 cycles
• Ingress Protection Rating: IP66
• Origin: Made in the USA
• Warranty: 4-Year Manufacturer Warranty

Compatibility & Pairings:

This circuit breaker is an excellent choice for trolling motors, RVs, boats, and other mobile DC power systems requiring reliable circuit protection and disconnect capabilities.
