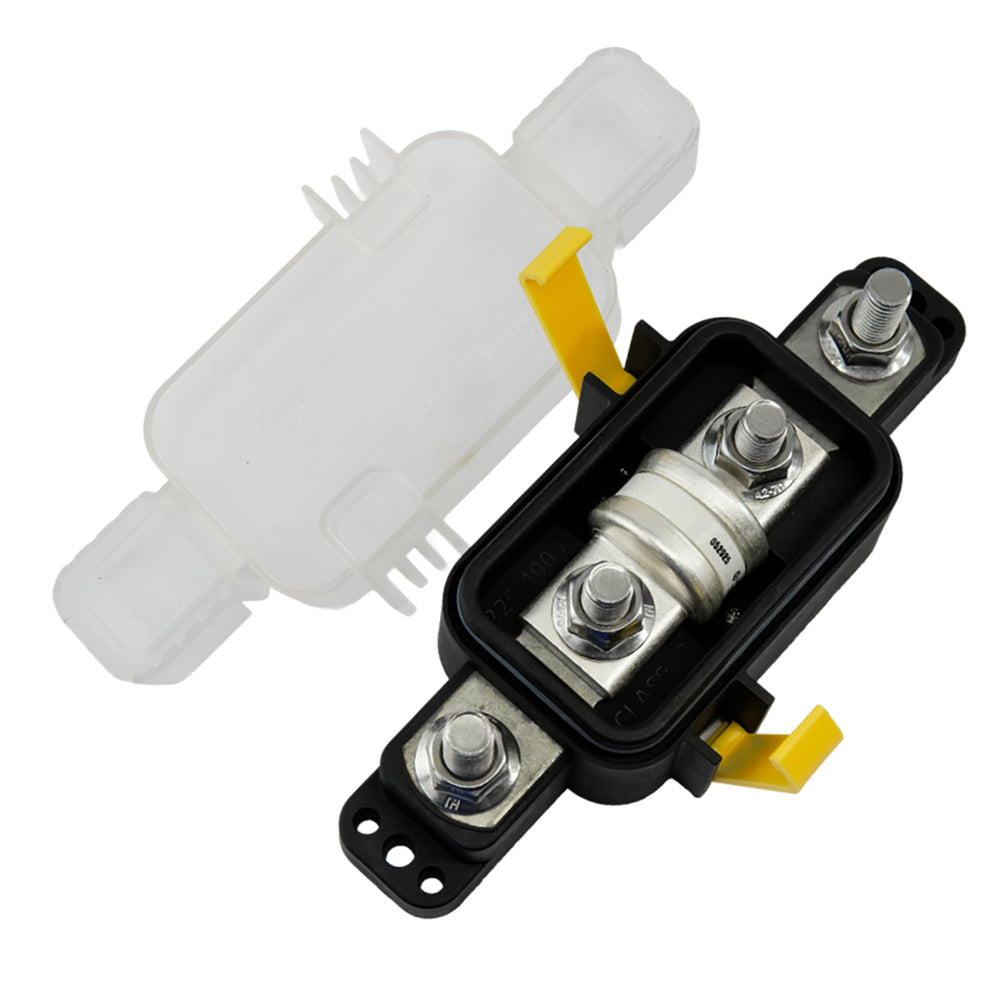

Egis Mobile Electric Class T Fuse Block, 225-400A Sealed – Ignition Protected

Egis Mobile Electric Class T Fuse Block, 225-400A Sealed – Ignition Protected

SKUCT-119881

$52.43
$52.43
Sale Sold out
Shipping calculated at checkout.
Shipping rewards at $100 U.S. orders of $100 or more get free standard shipping, plus $10 off Expedited and Overnight.

Use the Tug & Tow SKUInclude this SKU when you contact us about fit, availability, or reorders.
Delivery shown at checkoutShipping options, final costs, and delivery estimates appear before payment.
Check fit before orderingReview dimensions, part numbers, model details, and compatibility notes.
Confirm the details before checkoutFit can depend on your boat, RV, trailer, vehicle, or equipment. Contact us before ordering if compatibility is critical.Ask a product question

Product details

Review the details before ordering.

Ensure the utmost safety and reliability for your critical electrical systems with the Egis Mobile Electric Class T Fuse Block. Engineered for demanding environments, this sealed fuse block provides robust protection, making it an essential component for marine, RV, and specialty vehicle applications. Its ignition-protected design allows for safe installation in hazardous gaseous environments, while a 4-year warranty underscores its built-in durability and performance. Upgrade your power distribution with confidence today.

Key Features:
  • High Amperage Capacity: Rated for 225-400A and up to 80 VDC, compatible with Class T fuses for high-speed short circuit protection, especially recommended by inverter manufacturers.
  • Ignition Protected: Designed for safe installation in potentially hazardous gaseous environments, such as those found on LPG vehicles or gas boats.
  • Superior Ingress Protection: Boasts IP66, IP67, and IP6K9K ratings, providing comprehensive sealing against water, dust, and chemicals for reliable operation in harsh conditions.
  • Optimized Cable Connections: Features separate M8 stud connections with serrated flange nuts, allowing heavier gauge cables and terminals to be connected securely without stressing the fuse tab itself.
  • Durable Construction: Built with glass-filled nylon and a tin-plated copper busbar for superior electrical performance, minimal voltage drop, and exceptional longevity.
  • Robust Hardware: Equipped with stainless steel self-locking hardware, ensuring secure and long-term connection reliability.
  • Integrated Design: Compatible with Egis FLEX system interconnected busbars, facilitating a seamless and scalable electrical setup.
  • Protective Cover: Includes a clear polycarbonate cover with breakaway tabs to shield terminal studs and cables from inadvertent shorts.
Specifications:
  • Maximum Amperage: 225-400A
  • Maximum Voltage: 80 VDC
  • Ingress Protection: IP66, IP67, IP6K9K
  • Busbar Material: Tin-Plated Copper
  • Mounting Holes: 4x #10 (M5) & 2x 1/4" (M6)
  • Mounting Screw Max Torque: 50 in-lbs (5.5 N-m)

Note: Fuses are sold separately.
