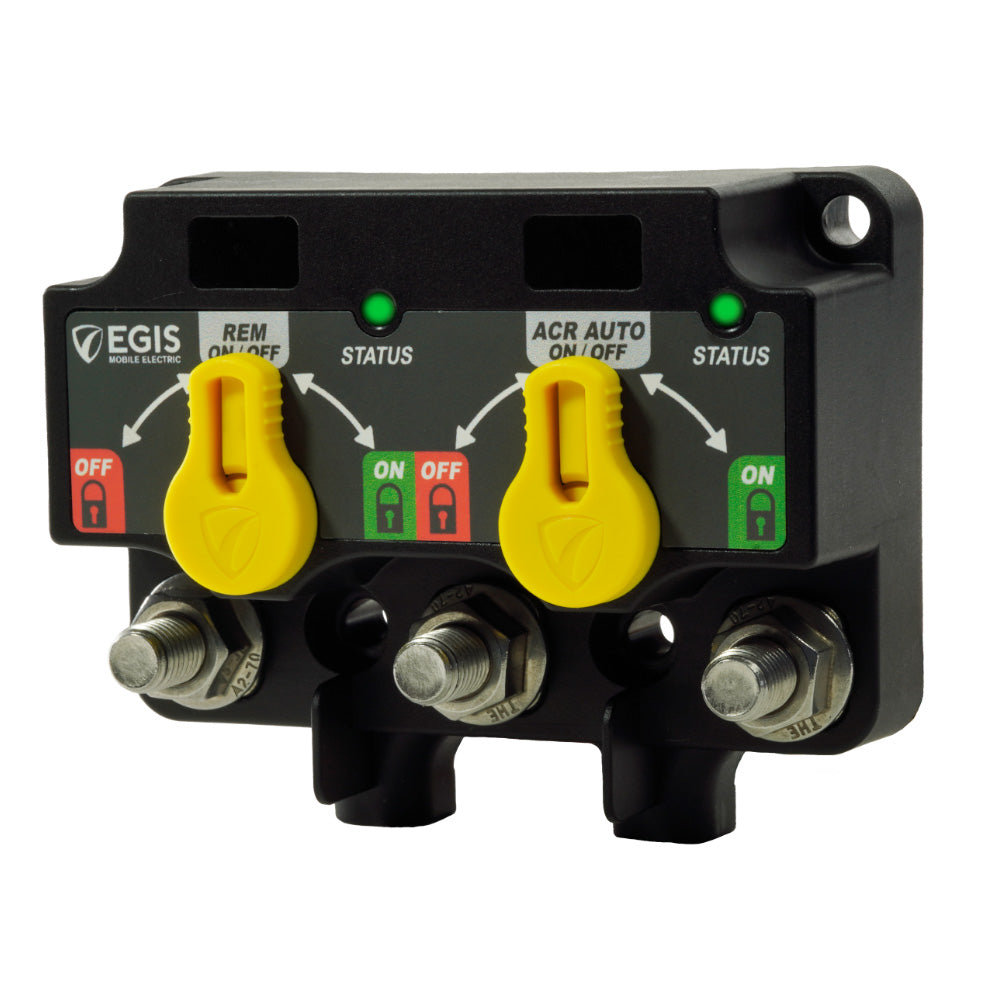

Egis Mobile Electric Dual XD Flex 2 Relay Module, 8820-1550

The Egis Mobile Electric Dual XD Flex 2 is a compact, high-performance relay module designed to replace two individual high-amp relays with a single, space-saving unit. Featuring bi-stable solenoid technology, this module offers significant weight and space reductions while maintaining robust, sealed construction suitable for versatile mounting locations.

Key Features:

• Sealed to IP67/IP6K9K standards for durability in high-temperature environments.
• Equipped with manual override knobs for clear, intuitive control and state awareness.
• Programmable via dip switches for flexible configuration.
• Plug-and-play compatible with common legacy bi-stable relays using DTM/ATM connectors.
• Engineered with stainless steel cable lug studs and 1/4-20 / M6 mounting hardware compatibility.
• Low off-state current consumption, up to 90-95% less than comparable solutions.
• Reduces system complexity by eliminating external link cables and associated vibration risks.

This module supports complex multi-battery switching and charge management functions, including dual battery load switching and automatic charging relay (ACR) integration for 2-3 battery systems. It is expandable using standard link and cross-link busbar accessories. Model number: 8820-1550.
