Brand: Egis Mobile Electric

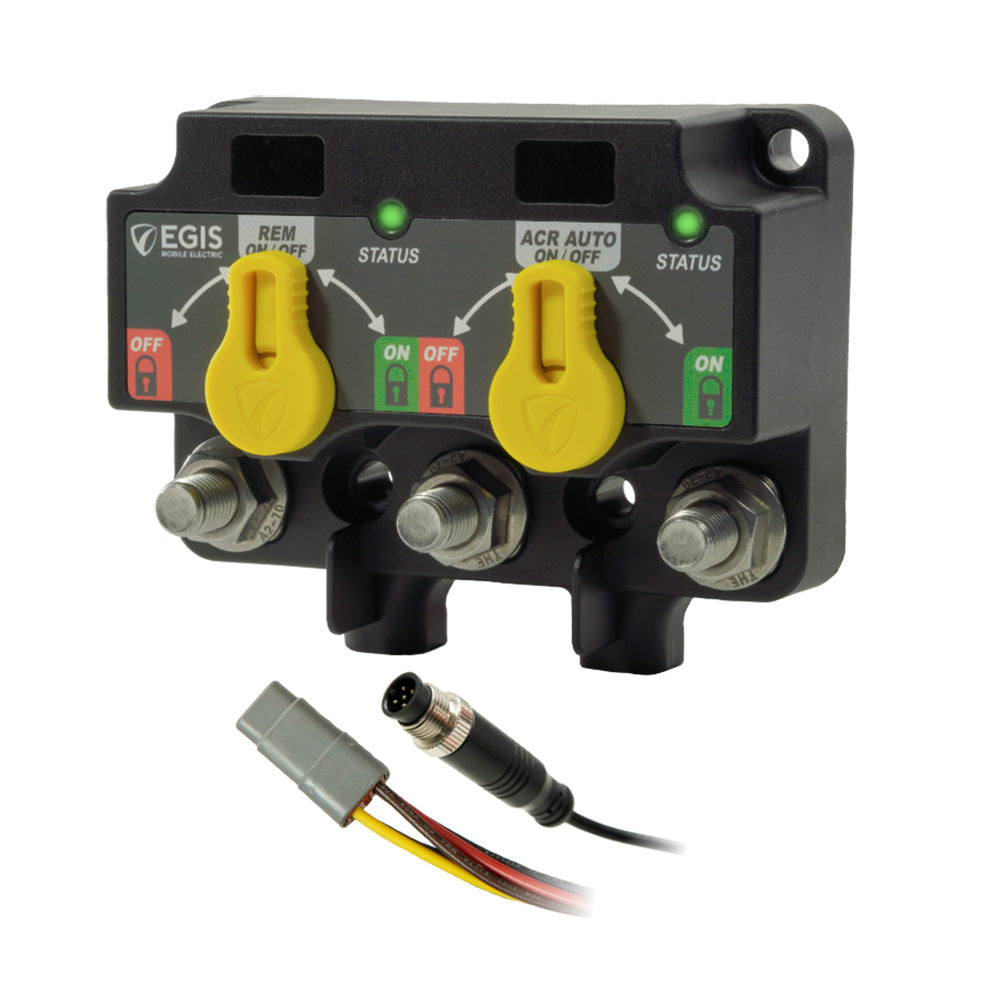

Egis Mobile Electric Dual XD NMEA 2000 ACR/Relay with Manual Knobs
Egis Mobile Electric Dual XD NMEA 2000 ACR/Relay with Manual Knobs
2 available
The Egis Mobile Electric Dual XD is a high-performance, 8-position relay and Automatic Charging Relay (ACR) system designed for marine electrical management. Featuring NMEA 2000 integration, this unit allows for remote monitoring and control of switch status and battery voltage. Its bi-stable solenoid design provides reliable power management while significantly reducing mounting space and overall system weight.
Key Features:
- Sealed to IP67/IP6K9K standards for durability in diverse mounting environments.
- Supports 500A continuous current and 1600A cranking per switch.
- Includes intuitive manual override knobs for simplified state control and awareness.
- Programmable via dip switches for flexible configuration during installation.
- Designed with stainless steel cable lug studs and 1/4-20 / M6 mounting hardware compatibility.
- Low off-state current consumption compared to conventional systems.
- Prevents battery depletion by isolating batteries when no charging source is detected.
- Expandable with available Link and Cross-Link busbars for multi-battery system configurations.
Specifications:
- Part Number: 9821-8350
- Type: Electric
- Control Interface: NMEA 2000 and discrete analog inputs
Product facts
- CT SKU
- CT-116493
- UPC / GTIN
- 850067590194
- Package weight
- 2.0 lb
