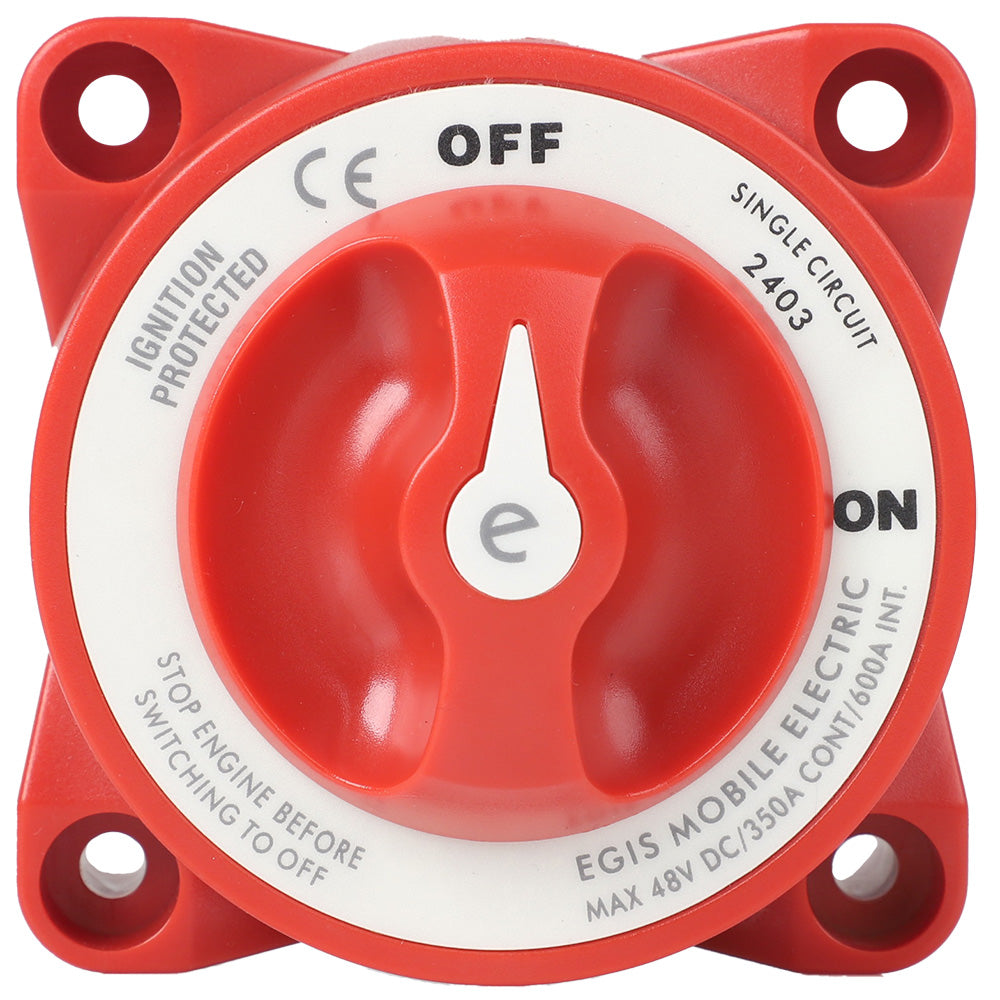

Egis Mobile Electric E-Series 350A Battery Switch, On/Off - 2403

The Egis Mobile Electric E-Series 350A Battery Switch (2403) is a robust on/off switch designed for reliable circuit control in demanding environments. Built to withstand harsh conditions, this unit features a sealed construction that prevents dust and water intrusion, ensuring long-term durability for electrical installations.

• Ignition Protected: Certified to SAE J1171 and ISO 8846 standards for safe use in closed compartments with potential explosive gases.
• Secure Installation: Includes stainless steel hardware and serrated flange lock nuts to resist terminal loosening caused by high-vibration environments.
• Flexible Mounting: Features versatile mounting configurations suitable for a variety of installation types.
• Voltage Ratings: Supports up to 48 Vdc for single circuit configurations or 32 Vdc for selector/dual circuit setups.
• Terminals and Hardware: Equipped with 3/8"-16 stud size; supports 3/8" (M10) ring terminals. Terminal stud torque is 140 in-lbs (15.8 N-m).
• Mounting Requirements: Requires a 3-5/8" diameter hole for bulkhead or panel mounting using #1/4" (M6) screws.
• Performance Specs: Live switching rating of 25 Amps; requires 4/0 AWG cable to meet full 350A rating.
