• Egis Mobile Electric M-Series 300A Battery Switch, Off/On Knob Actuator
1 1
1 product view Open images for a closer look Compare photos with product details

Egis Mobile Electric

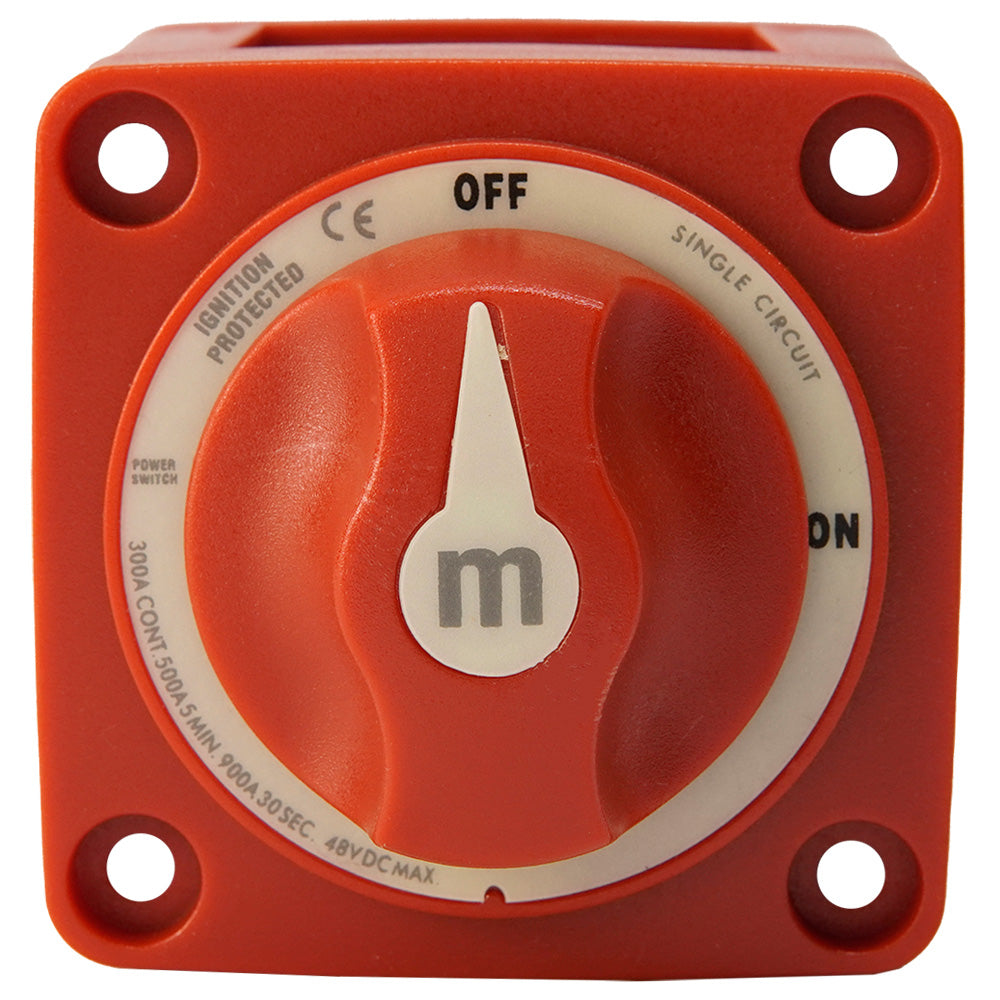

Egis Mobile Electric M-Series 300A Battery Switch, Off/On Knob Actuator

Egis Mobile Electric M-Series 300A Battery Switch, Off/On Knob Actuator

SKUCT-119914

$31.10
$31.10
Sale Sold out
Shipping calculated at checkout.
Shipping rewards at $100 U.S. orders of $100 or more get free standard shipping, plus $10 off Expedited and Overnight.

Use the Tug & Tow SKUInclude this SKU when you contact us about fit, availability, or reorders.
Delivery shown at checkoutShipping options, final costs, and delivery estimates appear before payment.
Check fit before orderingReview dimensions, part numbers, model details, and compatibility notes.
Confirm the details before checkoutFit can depend on your boat, RV, trailer, vehicle, or equipment. Contact us before ordering if compatibility is critical.Ask a product question

Product details

Review the details before ordering.

Ensure robust power control and enhance safety with the Egis M-Series 300A Battery Switch. Engineered for demanding marine, RV, and automotive applications, this compact switch reliably disconnects your battery, preventing unwanted power draw and providing critical circuit protection. Its ignition-protected design, combined with durable construction, makes it a trusted component for any electrical system. Upgrade your system's reliability and safeguard your power with Egis.

Key Features & Benefits:

  • High-Amperage Capacity: Manages a continuous 300 Amps, providing reliable power distribution and handling engine cranking loads.
  • Marine-Grade Protection: Sealed against dust and water intrusion, ensuring reliable circuit protection and long-term performance in harsh environments.
  • Ignition Protected: Rated to SAE J1171 / ISO 8846 and compliant with ABYC E-11 / USCG 183.410(a), making it safe for installation in enclosed compartments with potential explosive gases.
  • Durable Construction: Features stainless steel hardware, serrated flange nuts, and high-temperature materials for exceptional resilience against vibration and corrosion.
  • Secure Connections: Serrated flange lock nuts improve resistance to cable terminal loosening, maintaining stable connections in high-vibration settings.
  • Flexible Installation: Supports surface, front-panel, or through-panel mounting configurations to suit various electrical system layouts.
  • Tactile Operation: The easy-to-turn knob provides positive tactile and visual confirmation of the switch's Off/On position.

Specifications:

  • Continuous Current Rating: 300 Amps
  • Maximum Voltage (Single Circuit): 48 Vdc
  • Live Switching Rating: 25 Amps
  • Stud Size and Thread: 3/8"-16
  • Terminal Stud Torque: 120 in-lbs (13.6 N-m)
  • Ring Terminal Size Acceptance: 3/8" (M10)
  • Mounting Holes: #10 Screw
  • Bulkhead / Panel Mounting Hole Size: 2-5/8" / 2-5/16"
  • Recommended Cable Size to Meet Rating: 4/0 AWG
  • Dimensions (Compact Footprint): 2.87" x 2.87" x 3.32"H (approx.)

Recommended Pairings: For a complete and secure electrical system, pair with high-quality battery cables, terminal bus bars, and appropriate crimping tools.
