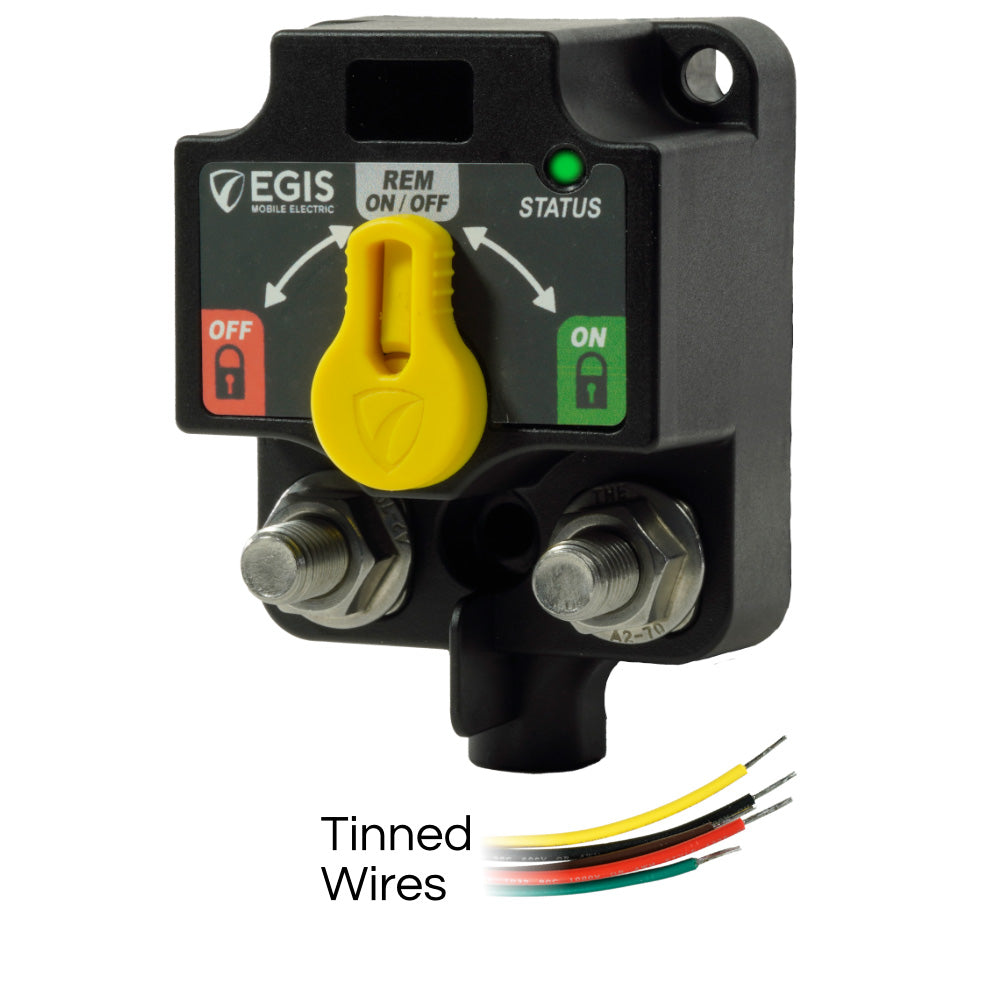

Egis Mobile Electric XD Flex 2 Single Remote Battery Switch, 500A Continuous

Gain superior control over your marine or vehicle electrical systems with the Egis Mobile Electric XD Flex 2 Single Remote Battery Switch. Engineered for demanding applications, this high-performance switch offers robust power management with a compact, bullet-proof design and intelligent features. Its versatile functionality allows for configuration as a remote battery disconnect, voltage sensing relay, or low voltage disconnect, making it an essential component for optimizing battery health and system reliability. Upgrade your power control today for unmatched durability and performance.

• Egis XD Flex 2 Single Remote Battery Switch
• Protective Terminal Cover
• 40-Circuit Weatherproof Label Sheet

• Clear Status Indication: Features an easy-to-see front-facing LED indicator, with a remote LED to replicate device status, ensuring quick visual confirmation.
• Flexible Manual Override: Offers a 3-position manual override knob, allowing you to force the relay open or closed, with an optional lock to secure its state for servicing or emergencies.
• Enhanced Safety: Includes a robust protective cover to prevent terminal shorts and integrated label recesses for easy circuit identification.
• Corrosion-Resistant Construction: Built with quality stainless steel studs and self-locking flanged nuts to withstand harsh marine or vehicle environments.
• Moisture Protection: An integrated Gore-Tex vent regulates internal device pressure, eliminating moisture entry across seals and ensuring a long product life.
• Customizable Functionality: Easily programmable via dip switches for custom configurations, adapting to various applications as a remote battery disconnect, voltage sensing relay, or low voltage disconnect.
• Space-Saving Design: Provides a 35-75% reduction in mounting space and product weight compared to competitive solutions, optimizing installation flexibility in tight areas.
• High Current Capacity: Delivers a 500A continuous current rating and a 1500A max cranking current, handling demanding power loads with ease.
• Extreme Durability: Features bullet-proof construction sealed to IP67/IP6K9K, allowing for reliable mounting anywhere in high-temperature environments.
• Ultra-Low Power Draw: Boasts an industry-low 1.3 mA off-state current draw, significantly reducing battery drain when inactive.

• Legacy System Compatibility: Wire-for-wire compatible with Blue Sea ML-series solenoids and remote battery switch products for seamless upgrades.
• Expandable System: Supports 2 or 3 battery systems and can be expanded with link and cross-link busbars to additional single, dual, or triple XD relays.
