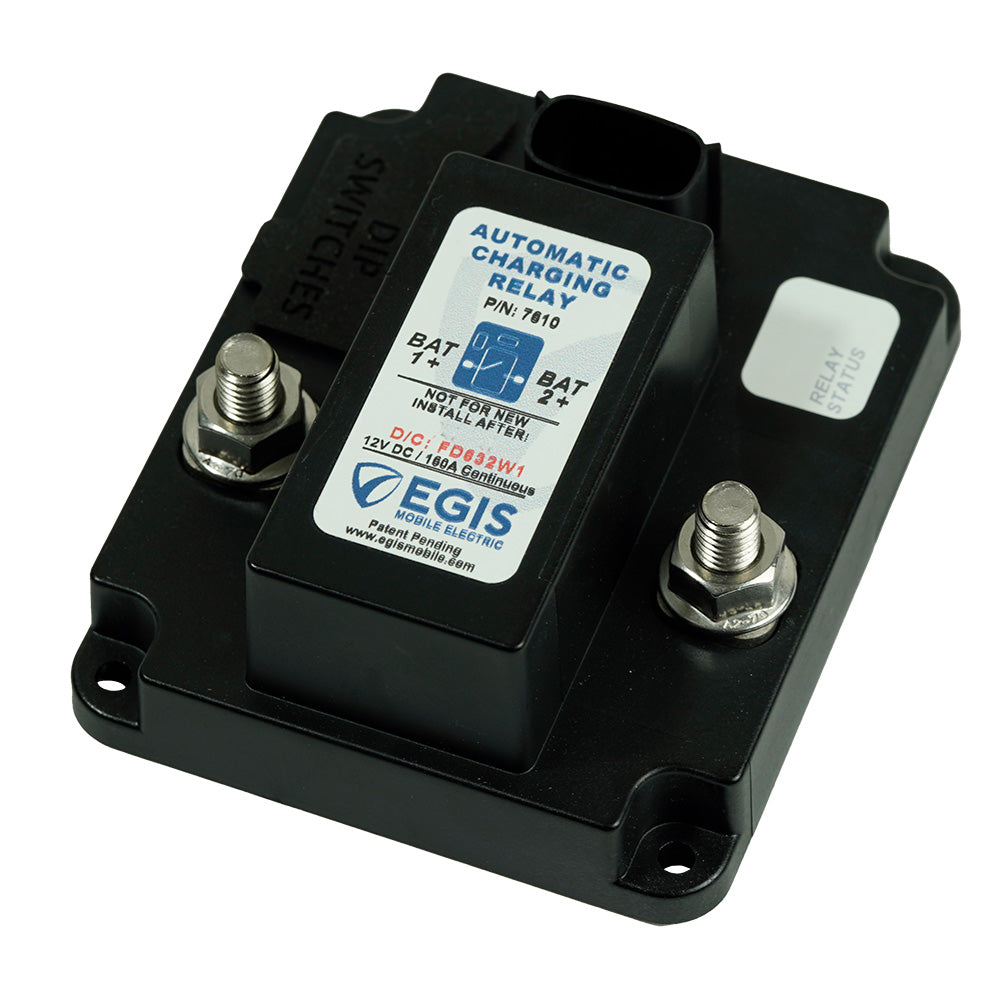

Egis Programmable Automatic Charging Relay (ACR), 160A, 12V

Ensure your marine or RV electrical system stays powered and your engine starts reliably with the Egis Mobile Electric Programmable Automatic Charging Relay (ACR). This intelligent relay automatically shares charging current between two batteries when a charge source is active and isolates them when no source is present, preventing dead batteries and protecting your electrical system from cascading faults. Designed for rugged environments, its sealed construction and low power draw offer superior performance and longevity. Upgrade your battery management system today.

Key Benefits & Specifications:

• Programmable Voltage Settings: Accessible top-side DIP switches allow for customized voltage thresholds to match specific battery needs and charging sources.
• Ultra-Low Power Draw: Consumes only 1.3 mA in its off-state, minimizing battery drain during periods of inactivity to prevent unexpected dead starts.
• 160A Continuous Current Rating: Handles demanding power loads for robust system operation.
• 12-18 VDC Voltage Range: Ensures compatibility with a wide variety of vehicle and vessel electrical systems.
• 240A Interrupt Current Rating: Safely manages surge currents to protect the system.
• Automatic Battery Management: Prevents dead start batteries by sharing charge between two batteries and isolating them when no charge source is present.
• System Fault Protection: Optional lock-out feature protects the electrical system from cascading faults by preventing closure if a battery has a shorted cell.
• Integrated LED Diagnostics: Provides at-a-glance system status, including pending relay status, under/over voltage, and thermal warnings.
• Start Assist Input: Enables manual battery connection via a remote switch to ensure maximum cranking amps are available when needed.
• Durable Construction: Features a sealed unit design with stainless steel hardware for exceptional durability and corrosion resistance, allowing reliable mounting in any environment.
• Thermal Overload Shutdown Protection: Safeguards the unit and connected systems from overheating by automatically shutting down.
• Versatile Connection Options: Comes standard with a sealed Molex MX-150 connector harness, and includes Deutsch DT/AT style and wire leads for flexible installation.
• Simplified Integration: Designed for easy integration with RT Fuse Blocks using optional EasyLink bus bars to streamline connections and save space.
