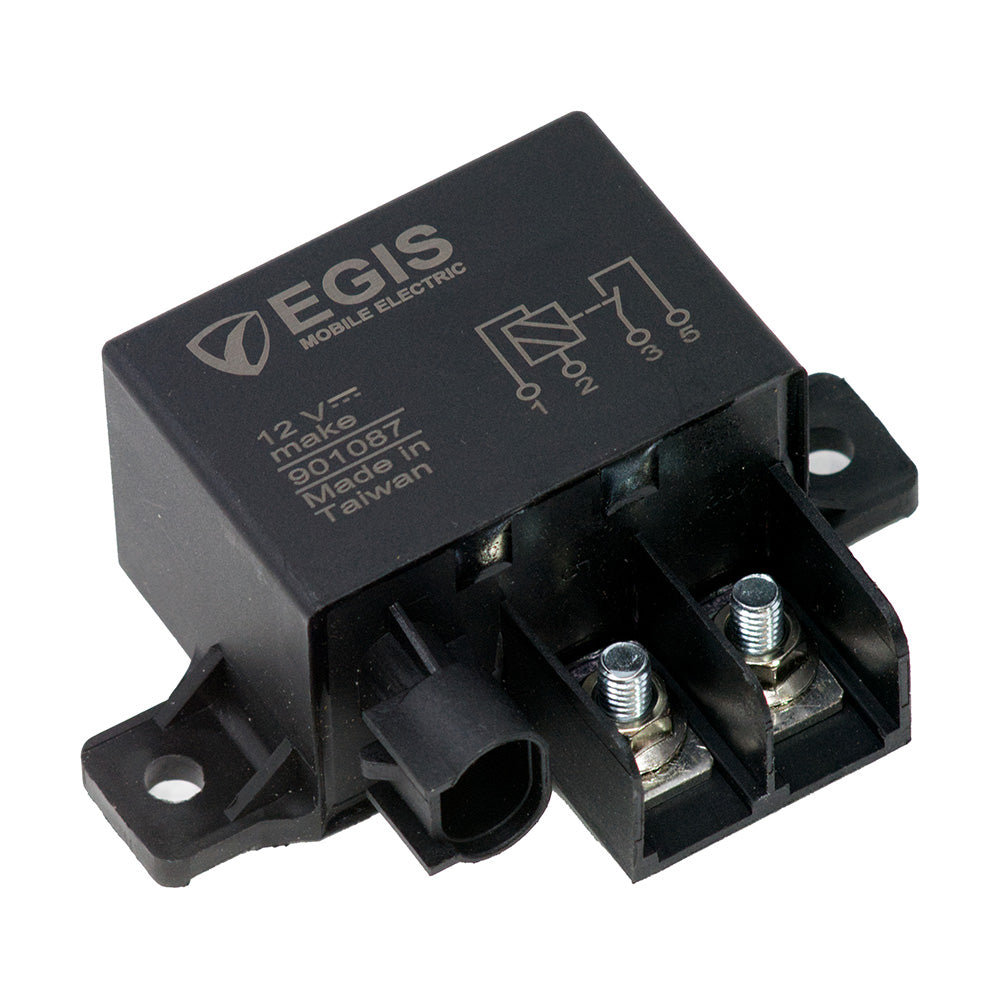

Egis Mobile Electric 901087 Relay, 12V 150A with Resistor – IP67 Rated

Ensure robust electrical control in demanding environments with the Egis Mobile Electric 901087 Relay. This high-performance 12V 150A relay is engineered for automotive, industrial, and marine applications, providing a reliable drop-in replacement for industry-standard Tyco/Amp models. Its sealed, IP67-rated enclosure and integrated resistor offer superior protection against harsh conditions, guaranteeing long-lasting functionality. Upgrade your electrical system with a relay built for durability and precision.

Key Features & Benefits:

• High-Current Capability: Handles a continuous current of 180 Amps at 85°C and intermittent currents up to 240 Amps at 85°C, designed for demanding power management.
• Integrated Protection: Features a built-in resistor for added circuit protection and stability.
• Environmental Resilience: Housed in a sealed enclosure with an integrated Delphi Metripak connector and IP67 waterproof rating, ensuring reliable operation in high ambient temperatures and wet environments.
• Wide Compatibility: An automotive-rated, industry-standard drop-in replacement, compatible with many Tyco/Amp applications.
• Optimized Performance: Boasts a minimum operate voltage of 7.2 VDC and a switching current of 300 Amps at 13.5 VDC, ensuring efficient electrical control.
• Globally Compliant: REACH and RoHS compliant, demonstrating a commitment to environmental standards.
• Quality Construction: Proudly made in Taiwan, ensuring high-quality manufacturing.

Specifications:

• Voltage Rating: 12VDC
• Max Current: 150A
• Continuous Current @85°C: 180 Amps
• Intermittent Current @85°C: 240 Amps
• Minimum Operate Voltage: 7.2 VDC
• On-State Current Draw @12V: 325 mA
• Release Voltage: 2.2 VDC
• Switching Current @13.5 VDC: 300 Amps
• Waterproof Rating: IP67
• Coil Termination: M6 Screw
• Country of Origin: Taiwan
