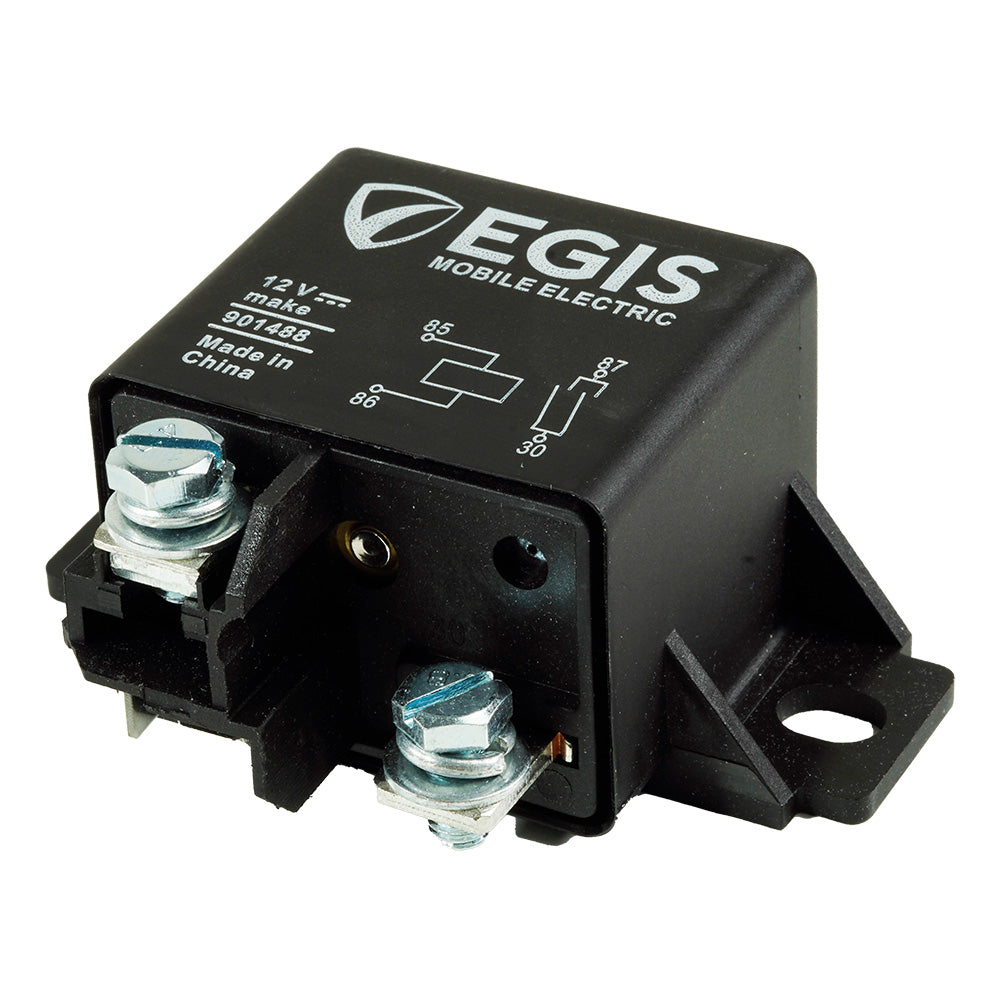

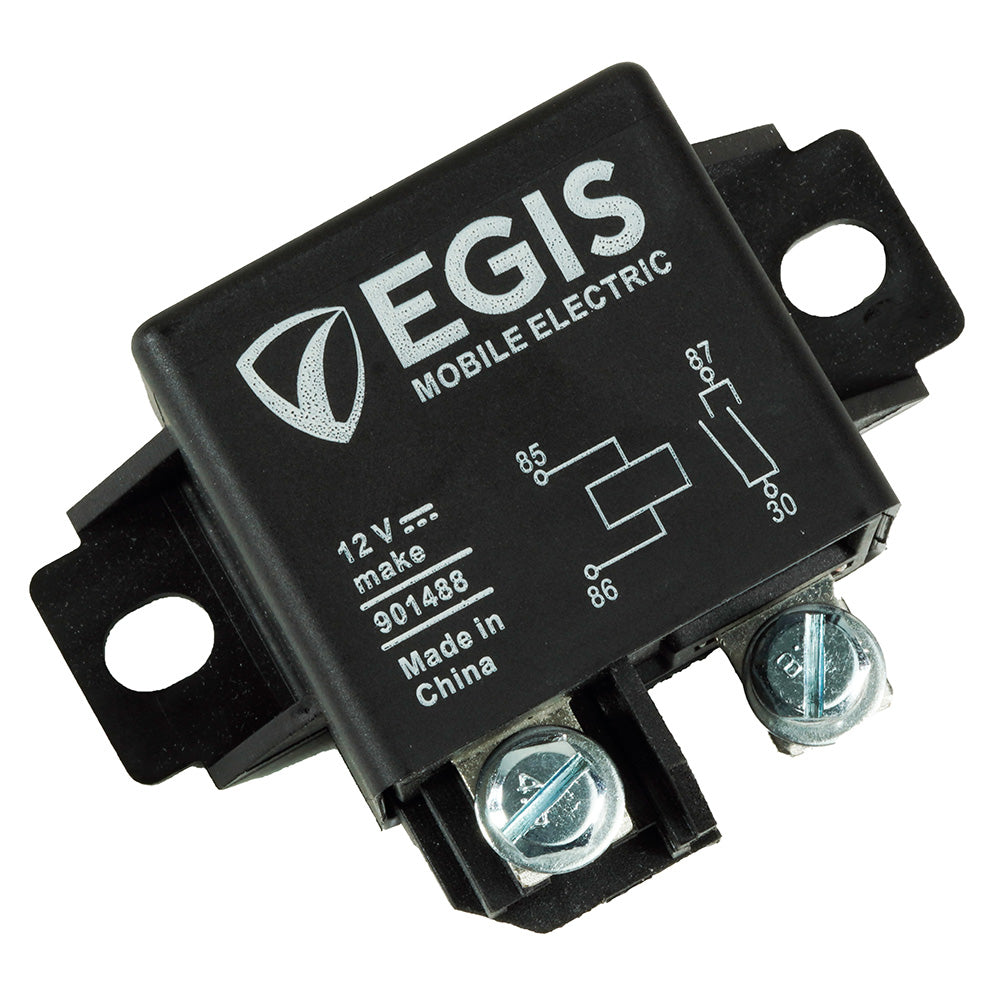

Egis Mobile Electric 901488 Power Relay, 12VDC, 75A, IP54 Rated

Ensure reliable electrical performance in demanding applications with the Egis Mobile Electric 901488 Power Relay. Engineered for the rigors of automotive and high-draw equipment, this robust 12VDC, 75A relay features bifurcated contacts that reduce contact bounce and enhance long-term reliability. Its automotive-grade construction with IP54 ingress protection guarantees secure operation in harsh environments. Upgrade your electrical system with confidence today.

Key Benefits & Specifications:

• High Continuous Current: Rated for a maximum continuous current of 75 Amps at 23°C, ensuring stable power delivery for critical systems.
• Intermittent Surge Capacity: Handles intermittent surges up to 150 Amps for 3 seconds, ideal for temporary high start-up current applications.
• Wide Operating Voltage: Functions efficiently across an 8.8-16VDC range.
• Extreme Temperature Resilience: Operates reliably in ambient temperatures from -50°C to 125°C (-58°F to 257°F), perfect for engine bays and low-ventilation areas.
• Exceptional Electrical Endurance: Boasts a long electrical endurance of 100,000 cycles, providing extended service life.
• Enhanced Contact Reliability: Features bifurcated SPST (Single Pole, Single Throw) contacts that significantly reduce contact bounce for more efficient electrical switching and superior reliability.
• Environmental Protection: IP54 rated for ingress protection, guarding against dust and splashing water.
• Robust Construction: Built with automotive-grade materials and reinforced mounting tabs for bullet-proof construction, ensuring secure mounting and enhanced vibration/shock protection.
• Versatile Mounting: Dual mounting holes accommodate ¼-20"/M6 1.25 bolts or screws up to #14 for flexible installation.
• Secure Terminals: Includes zinc-plated M5-size input/output terminal screws with held-in-place nuts and offset flat blade connectors to keep connections secure and prevent accidental shorts.

Recommended Applications: Ideal for demanding automotive electrical systems, marine installations, and temporary high-current equipment start-up draw applications.
