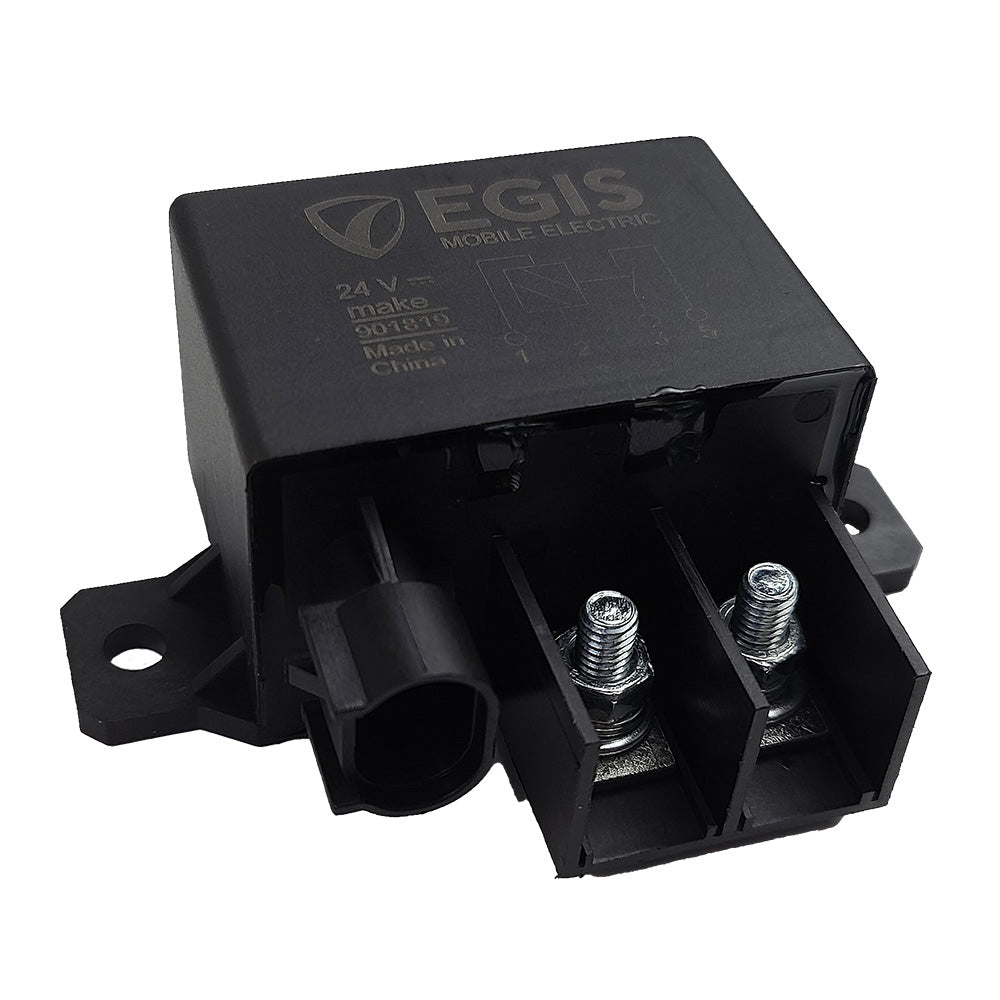

Egis Mobile Electric 24V 150A Relay with Resistor (901819)

This Egis Mobile Electric relay is a 24V, 150A automotive-rated component designed as an industry-standard drop-in replacement for Tyco/Amp relays. It is engineered for high-current applications in demanding environments, including high-temperature areas like engine bays, and features an integrated resistor to protect sensitive control circuitry from flyback voltage.

Key Features:

• Maximum continuous current rating of 180A at 23°C, with an intermittent current rating of 300A for up to 3 seconds.
• Operating voltage range of 17.6-32VDC.
• IP67-rated sealed housing and automotive-grade Delphi Metripak connectors provide protection against moisture, dust, and environmental intrusion.
• Built for longevity with an electrical endurance rating of 1,000,000 cycles and enhanced resistance to shock and vibration.
• Ambient temperature rating of -40°C to 125°C.
• Includes reinforced mounting tabs compatible with 1/4"-20 or M6 1.25 hardware and shielded dual M6x1.0 terminals.
