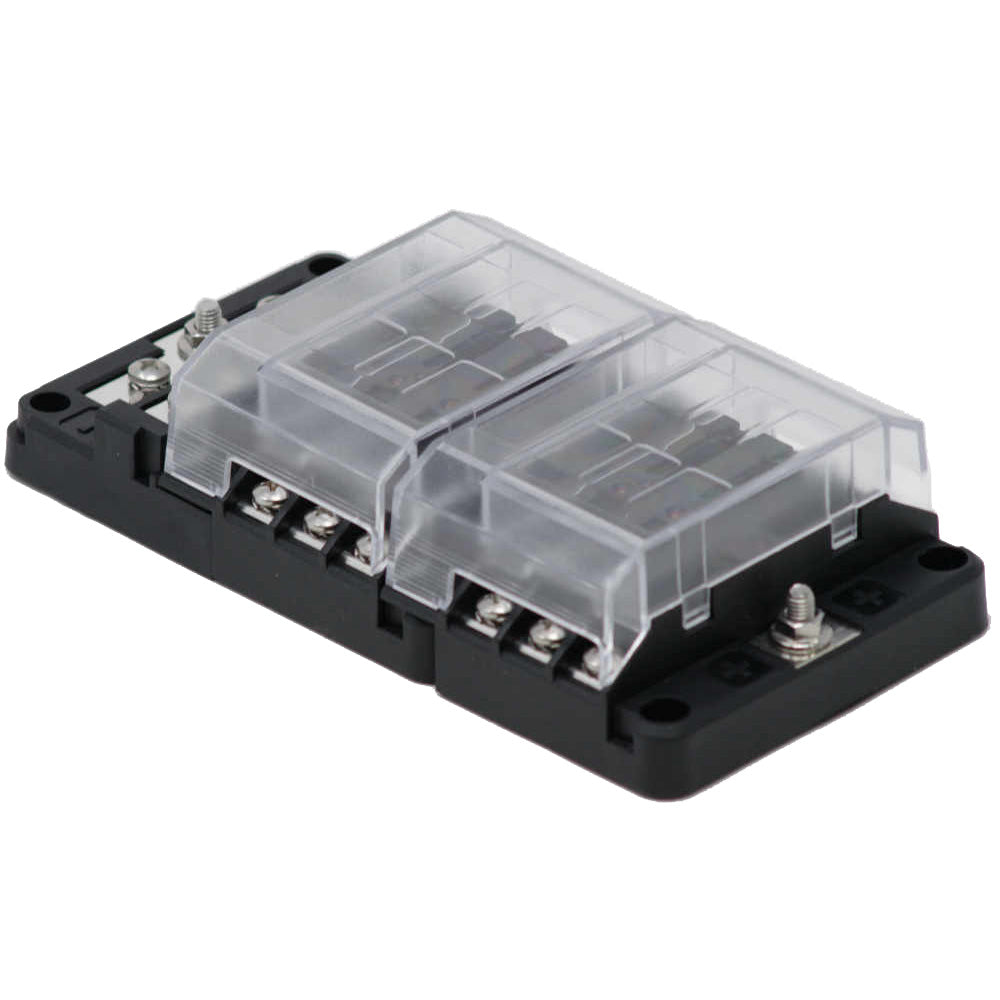

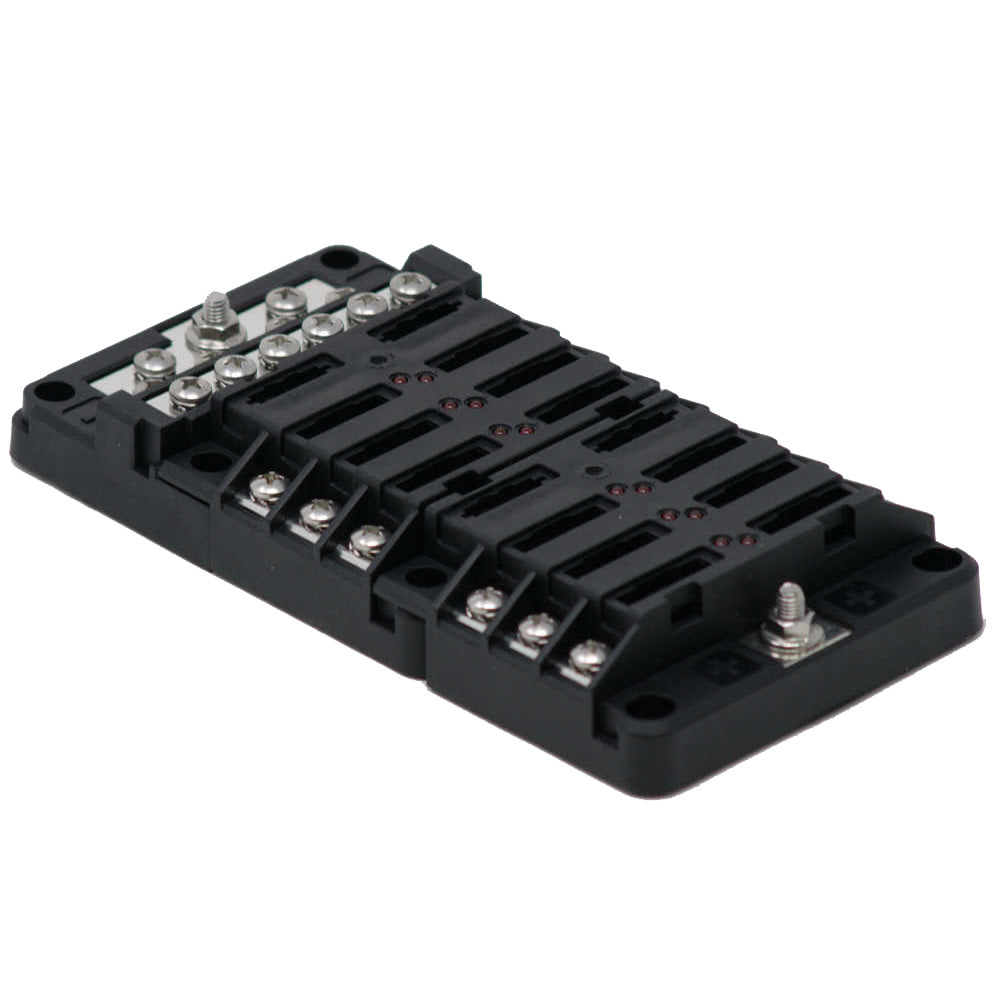

Egis Mobile Electric RT 12-Position Fuse Block with Ground and LED Indication

The Egis Mobile Electric RT 12-Position Fuse Block provides a modular solution for circuit protection, featuring integrated ground and LED blown-fuse diagnostics. Built for demanding environments, this unit utilizes stainless steel self-locking hardware and high-temperature materials for reliable installation in various vehicle and marine applications.

Key Features:

• 12 independent fuse positions compatible with ATO, ATC, and ATF style fuses.
• Integrated LED indicators for each circuit to quickly identify blown fuses and simplify system troubleshooting.
• Includes a 12-position ground return block that can be separated from the main fuse block for versatile installation.
• Modular design allows for seven unique configurations.
• Protects branch circuits accepting fuses from 1 to 40 Amps.
• Features stainless steel, non-ferrous, corrosion-resistant hardware.
• Includes two spare fuse locations per 6 circuits.
• Designed with recesses for terminal protection to prevent short circuits.
• Supports SAE circuit protection standards.

Technical Specifications:

• Voltage Range: 0-36 VDC
• Maximum Total Block Current: 10 Amps
• Maximum Current Per Circuit: 30 Amps
• Maximum Output Wire Size: #10 AWG
