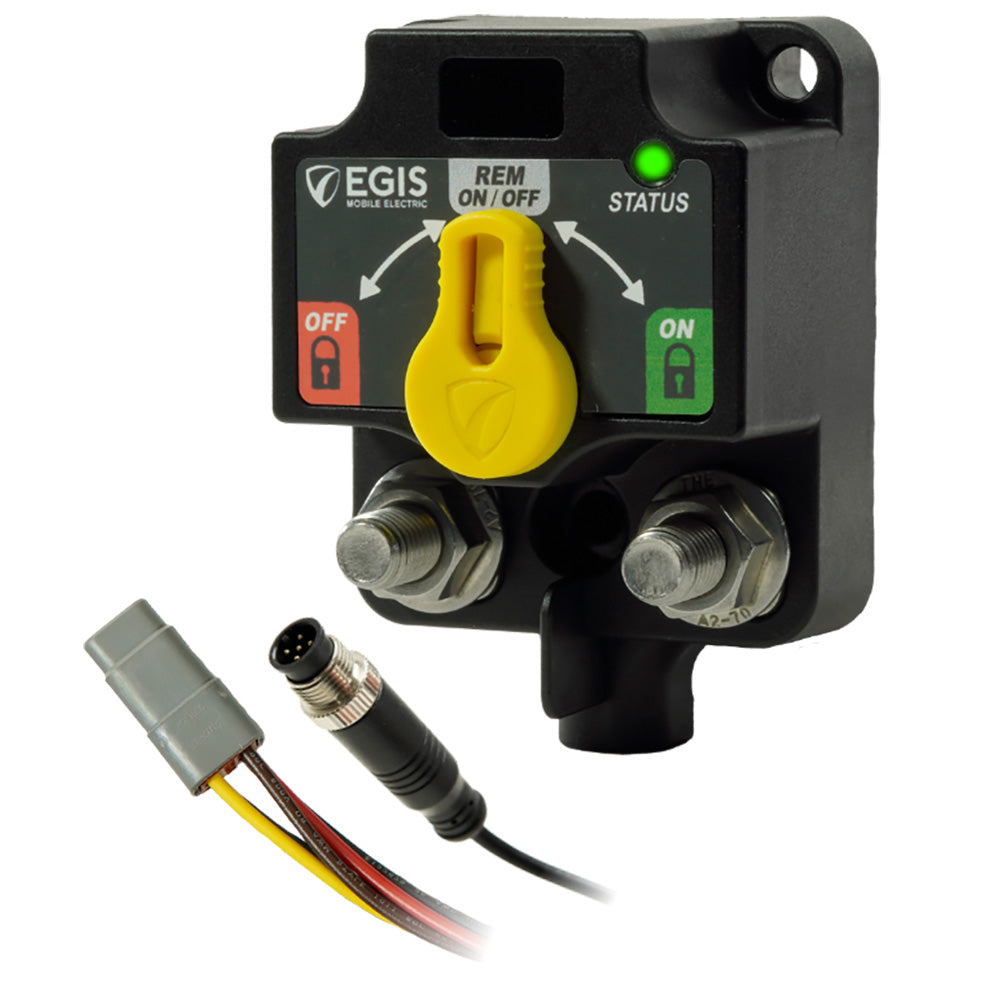

Egis Mobile Electric Single XD NMEA 2000 Relay with Knobs, 4-Position DT

Gain advanced command over your vessel's power systems with the Egis Mobile Electric Single XD NMEA 2000 Relay. Engineered for the demanding marine environment, this robust 4-position double-throw (DT) relay provides seamless integration with your NMEA 2000 network, allowing for intuitive digital control and monitoring. Its 'bullet-proof' construction ensures durability, while optional manual override knobs offer hands-on flexibility. Upgrade your marine electrical management for enhanced reliability and efficiency today.

Key Benefits & Features:

• Extreme Durability: Sealed to IP67/IP6K9K, with high-temperature electronics and materials, allowing flexible installation anywhere on your vessel.
• Robust Power Handling: Capable of managing 500A continuous and 1600A cranking current per switch, supporting all standard marine electrical systems.
• Seamless NMEA 2000 Integration: Enables digital control of switches, real-time monitoring of switch status, and battery voltage readings via your NMEA 2000 network.
• Space and Weight Optimization: Advanced bi-stable solenoid design significantly reduces mounting space and product weight by 35-75% compared to conventional solutions.
• Versatile Control Options: Features intuitive manual control with knobs and simple programmability via dip switches, offering significant flexibility for OEMs and installers.
• Ultra-Low Off-State Current: Achieves 90-95% less off-state current compared to competitive products, minimizing parasitic drain and extending battery life.
• Prevents Dead Start Batteries: Manages shared charging between two batteries and isolates them when no charge sources are present, ensuring reliable engine starts.
• Expandable System: Compatible with Link and Cross-Link Busbars to easily expand to additional Dual, Triple, or Single XD Relays, supporting 2 or 3 battery systems.
• Wide Voltage Compatibility: Supports both 12V and 24V DC systems, making it suitable for a broad range of marine and mobile applications.

Recommended Pairings: Integrate seamlessly with NMEA 2000 compatible multifunction displays for a complete digital switching and monitoring solution.
