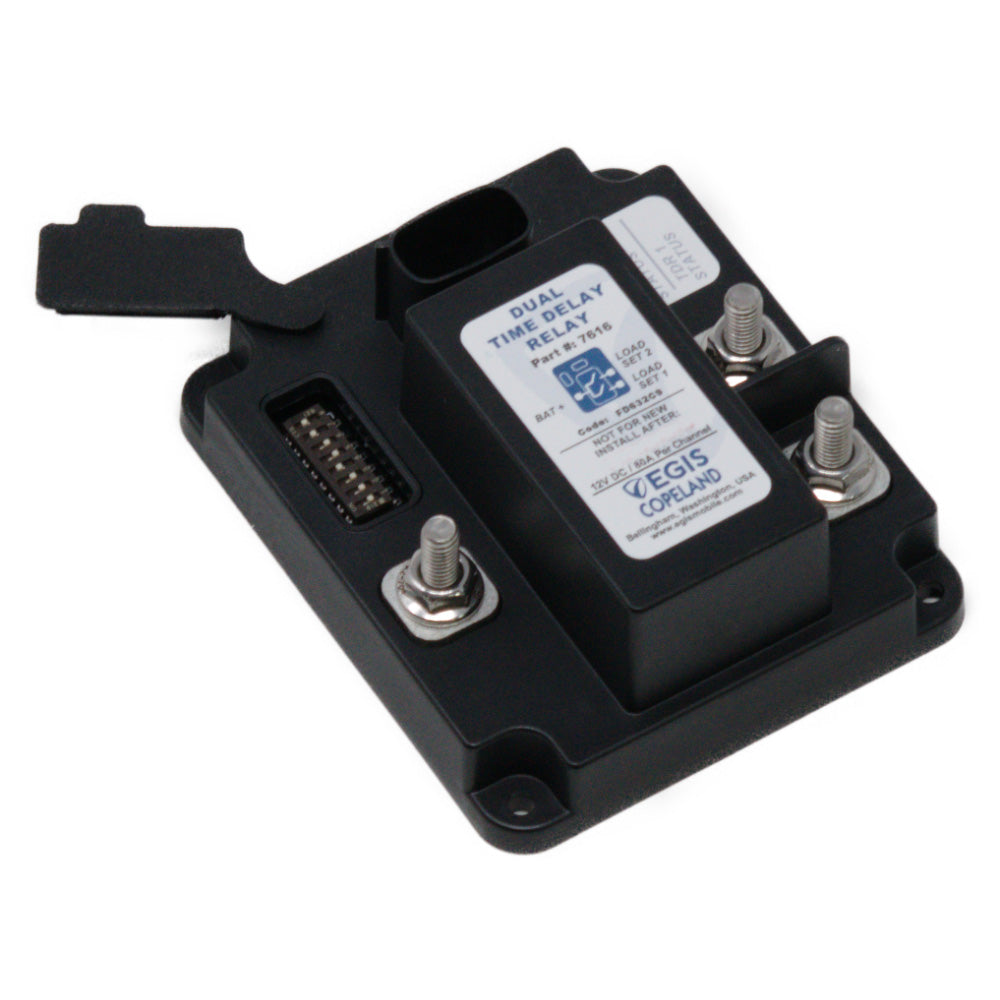

Egis Mobile Electric TDR Series Dual Output Time Delay Relay, 12V 2x80A (7616)

The Egis Mobile Electric TDR Series Dual Output Time Delay Relay is a 12V system designed to manage vehicle equipment loads and prevent battery drain. This relay maximizes operational readiness by allowing controlled shutdown of electronics after the engine stops.

Key Features:

• Dual 80A continuous outputs (160A total) with 120A intermittent capacity per output
• Adjustable OFF time delay from 0 seconds to 4 hours via top-side dip switches
• Low off-state current draw of 1.3 to 1.5 mA
• Waterproof to IP66 and IP6K9K standards and ignition protected to ISO 8846
• Operating voltage: 8-18 Vdc; Operating temperature: -40 to 85°C
• Integrated thermal overload protection and under/over voltage load protection
• Stainless steel, corrosion-resistant self-locking hardware
• Uses Molex MX-150 connector for reliable assembly
• Includes 4-year manufacturer warranty
• Regulatory note: Contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm (Proposition 65)
