Brand: Egis Mobile Electric

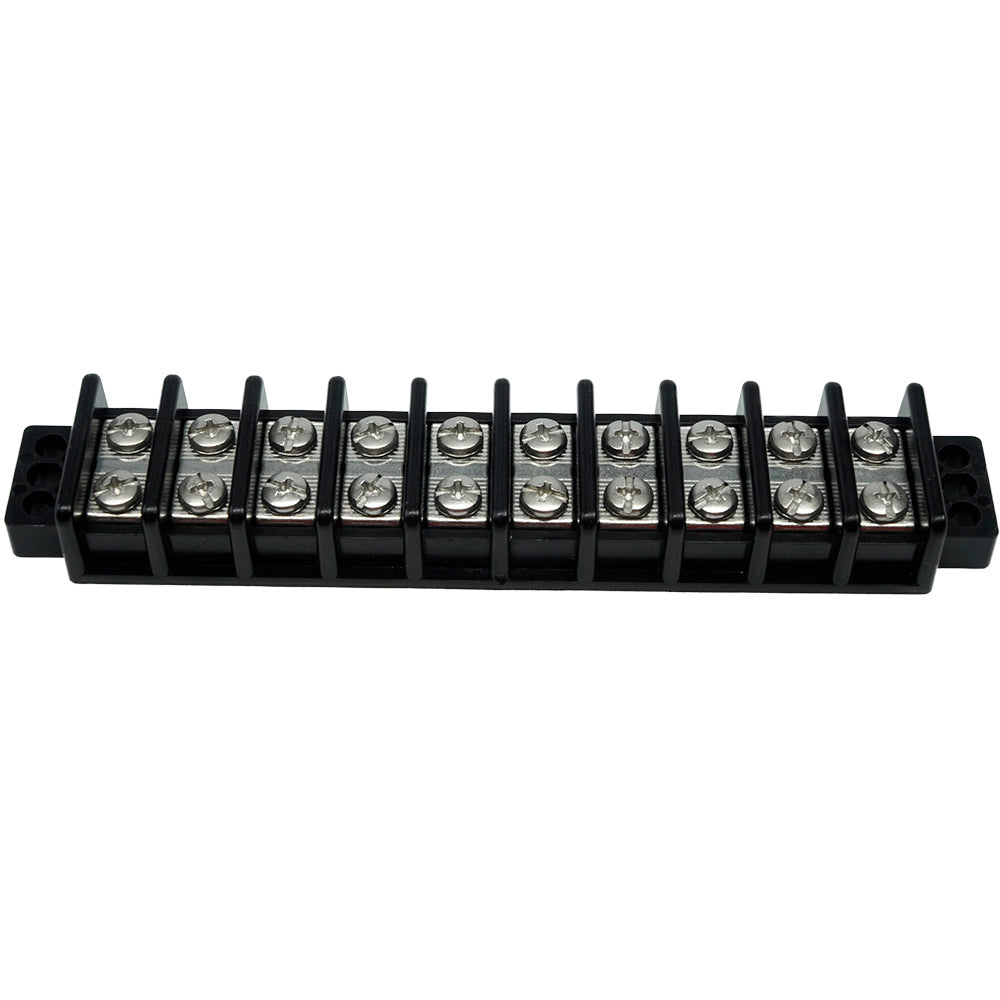

Egis Mobile Electric 10-Circuit Terminal Block, 30 Amp
Egis Mobile Electric 10-Circuit Terminal Block, 30 Amp
10+ available
This Egis Mobile Electric terminal block provides a robust electrical distribution solution featuring 10 matching connection pairs for marine and high-reliability applications. Each pair includes an input and output screw connected to separate copper alloy bus bars, protected by high-insulation walls to prevent shorting.
- Capacity: 30 Amps continuous current rating.
- Voltage Compatibility: Rated for up to 125V AC/DC, supporting 12V, 24V, 36V, and 48V DC systems, as well as 120V/240V AC applications.
- Construction: Built with tin-plated copper alloy conductors, stainless steel hardware, and high-temperature, heat-resistant insulation.
- Design Features: Anti-rotation ribs on conductor strips minimize wire terminal rotation under strain, and high insulation walls shield ring terminal splices from adjacent circuits or ground.
- Specifications: 250V maximum voltage rating, 2000V AC dielectric strength.
- Certifications: CE marked and RoHS compliant.
- Warranty: Includes a 4-year manufacturer warranty.
- Model: 2230-10.
Product facts
- CT SKU
- CT-117985
- UPC / GTIN
- 850053879722
- Package weight
- 0.25 lb
