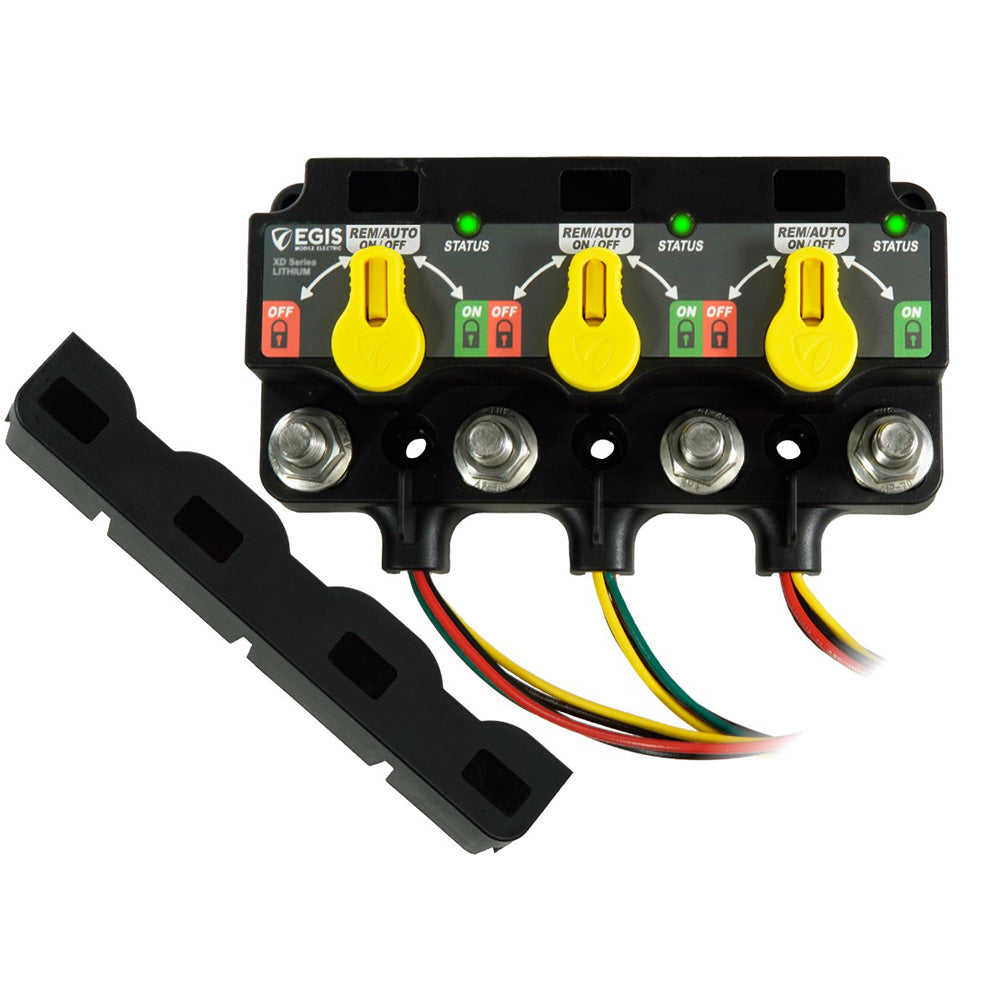

Egis Mobile Electric Triple XD Flex Relay with Knobs, 500A Continuous

Revolutionize your mobile electrical system with the Egis Mobile Electric Triple XD Flex Relay. This advanced module combines three high-amp relays into a single, compact unit, drastically reducing installation space and simplifying wiring for 12V or 24V DC lithium battery setups. Engineered for versatility and reliability, it offers programmable control over your battery system, acting as remote on-off switches or an Automatic Charge Relay. Upgrade to Egis for bullet-proof construction, ultra-low power consumption, and intuitive management of your power needs.

Key Benefits & Features:

• Triple Programmable Relays: Configure each of the three integrated relays independently for versatile system control, optimizing your lithium battery setup.
• High-Current Capability: Delivers 500A continuous current and up to 1500A max cranking current, handling demanding power applications with ease.
• Ultra-Low Power Draw: Consumes only 1.3mA in off-state, minimizing parasitic drain on your batteries for extended life.
• Robust & Weatherproof Design: Sealed to IP67/IP6K9K standards with high-temperature electronics and stainless steel hardware, allowing flexible mounting anywhere, even in harsh marine or automotive environments.
• Space-Saving Integration: Replaces three individual relays, reducing mounting space and weight by 35-75% and eliminating the need for external link cable connections.
• Intuitive Manual Override: Features manual control knobs with lock-on or lock-off positions for safe servicing and enhanced operational awareness.
• Simple Configuration: Easy dip switch programming enables quick and flexible customization of relay functions for OEMs and installers.
• Wide Voltage Compatibility: Operates across an 8-36V DC range, supporting both 12V and 24V DC systems.
• 4-Year Industry-Leading Warranty: Backed by a comprehensive warranty for long-term peace of mind and reliability.

Compatibility & Pairings:

Designed primarily for 12V and 24V DC lithium battery systems, this relay's fully adjustable voltage set points support various battery types. It is expandable with link and cross-link busbars to integrate with additional single, dual, or triple XD relays, supporting complex multi-battery systems.
