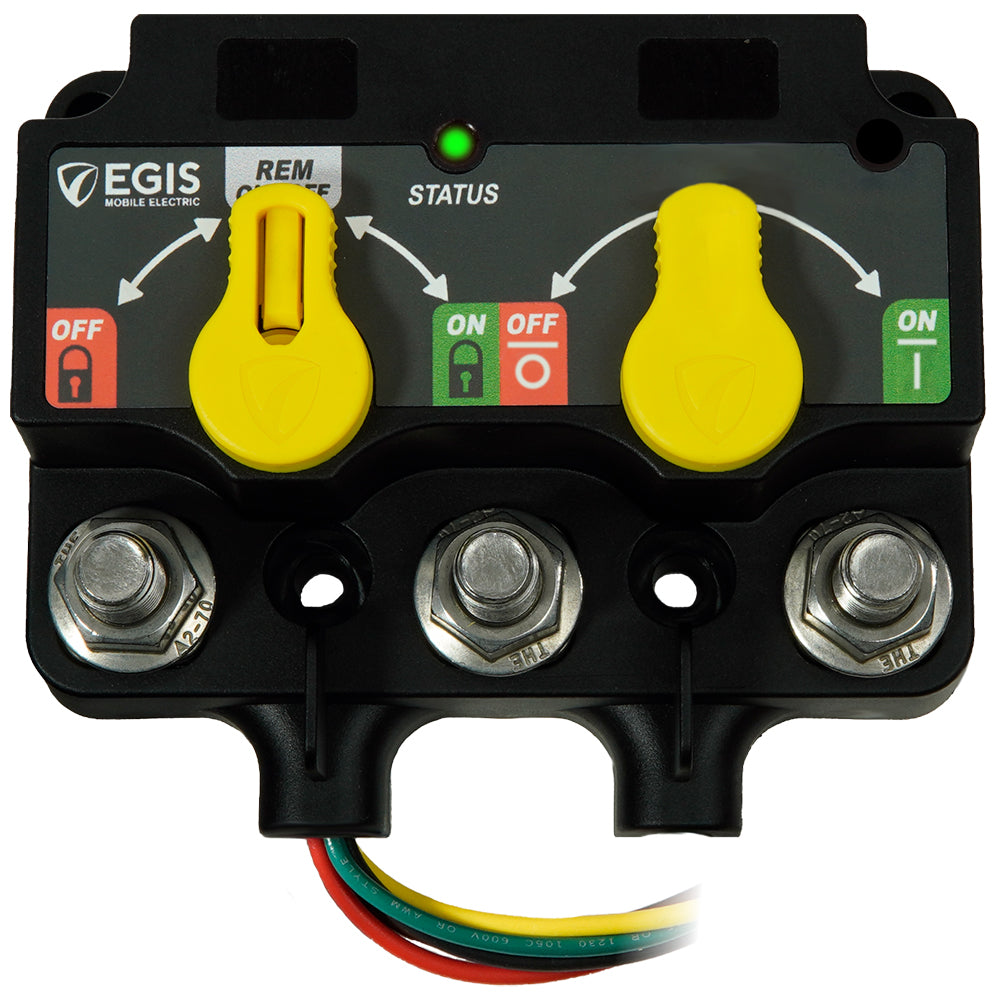

Egis Mobile Electric XD Series Dual Flex 2 ACR-Mech Relay with Manual Knobs

The Egis Mobile Electric XD Series Dual Flex 2 is a compact, high-performance relay module designed to replace multiple individual high-amp relays in 2-3 battery systems. This unit integrates automatic charging relay (ACR) functions and load switching into a single, space-efficient device, significantly reducing mounting space, weight, and installation complexity by eliminating external link cables.

Key Features:

• Replaces two individual high-amp relays with a single module.
• Integrated 3-position manual override knobs allow for individual relay control, with the ability to lock them in the open or closed position.
• Features front-facing LED status display with remote LED compatibility.
• Built with IP67/IP6K9K-rated sealed construction and integrated Gortex venting for moisture and pressure regulation in harsh environments.
• Simple dip-switch programmability for flexible configuration.
• Includes a 40-circuit weatherproof label sheet, protective terminal cover, and corrosion-resistant stainless steel hardware.
• Plug-and-play compatible with legacy bi-stable relays using DTM/ATM connectors.
• Supports 8-36 VDC systems with a 500A total continuous current rating and 1500A max cranking current.

The unit features stainless steel cable lug studs and large mounting holes compatible with 1/4-20 / M6 hardware. Manufacturer part number: 8720-1390.
