Brand: Egis Mobile Electric

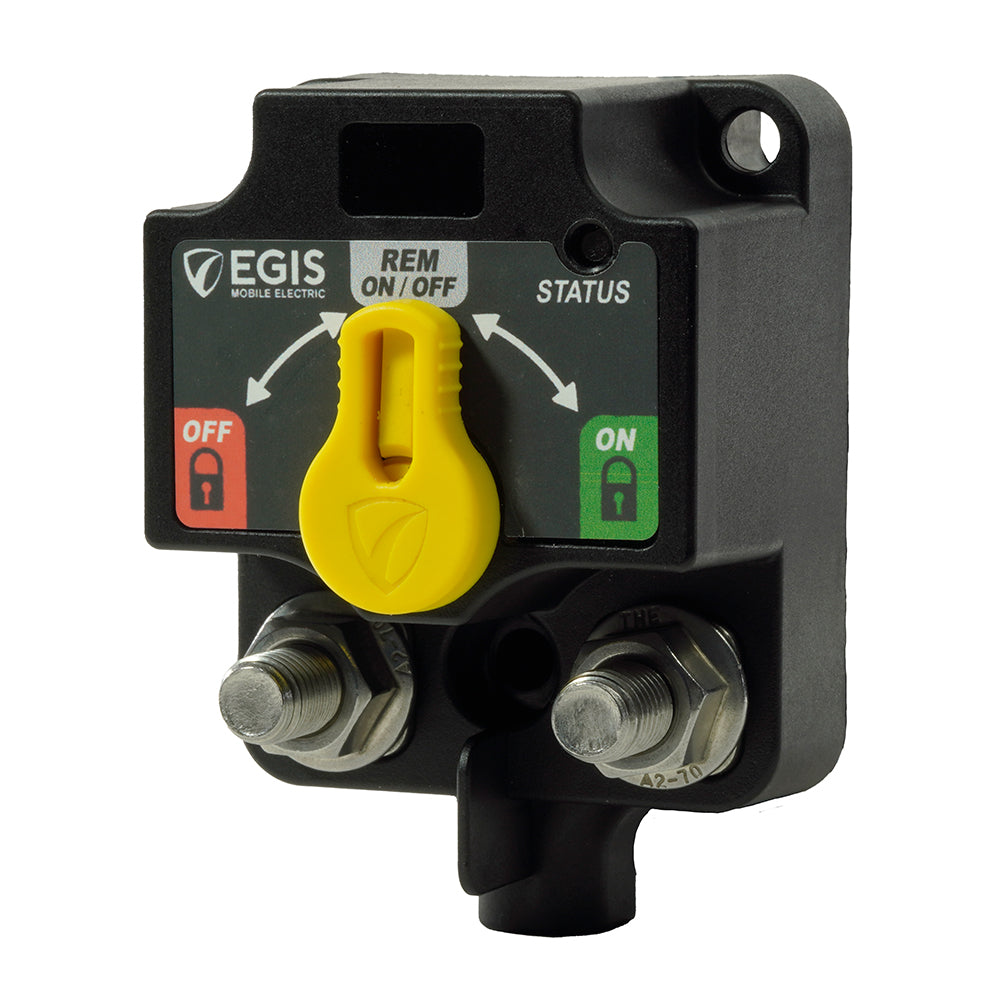

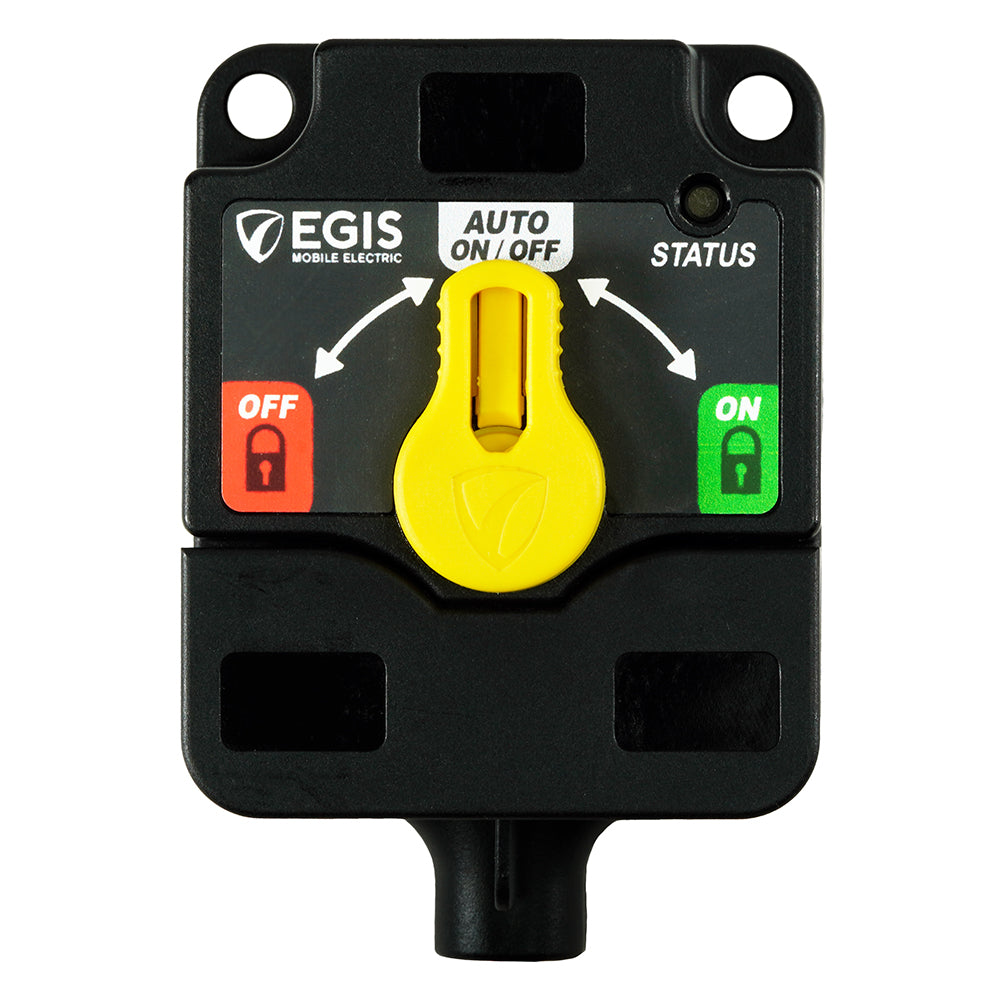

Egis Mobile Electric XD Series Single 500 Amp Heavy-Duty Battery Switch / Mechanical Contactor, 8710-1900
Egis Mobile Electric XD Series Single 500 Amp Heavy-Duty Battery Switch / Mechanical Contactor, 8710-1900
9 available
About this product
The Egis Mobile Electric XD Series Single 500 Amp Heavy-Duty Battery Switch / Mechanical Contactor provides high-current switching for marine and other vehicle electrical systems, with manual control and sealed construction for demanding installation environments.
- Current ratings: 500 amps continuous and 1,500 amps maximum cranking current
- Voltage range: 8–36 VDC
- Contacts: Silver alloy contact points for high-amp, full-voltage switching
- Protection: IP67/IP6K9K sealed construction with an integrated Gore-Tex pressure-regulation vent
- Installation: Surface-mount or rear-panel installation; large mounting holes accept 1/4-20 or M6 hardware
- Terminals: M10 stainless steel cable-lug studs with self-locking flanged nuts
- Included: Protective terminal cover and a weatherproof 40-circuit label sheet with blank labels for custom applications
- Manual control: High-visibility yellow knob with on/off labeling; the knob can be left to hold the relay open or closed
- Expansion: Compatible with optional Egis 8790 Link and 8791 Cross Link Busbars for integration with XD Series FLEX, ACR, and LVD relays
- Safety: Ignition-protected for installation in gasoline-powered boats and other combustible environments
- Manufacturer part number: 8710-1900
- UPC: 850035199794
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-117936
- Model / MPN
- 8710-1900
- UPC / GTIN
- 850035199794
- Package dimensions (H × W × L)
- 3" X 5" X 6"
- Package weight
- 0.92 lb
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
Shipping & returns
Shipping & returns
Request an eligible return within 21 calendar days after delivery. Every physical return requires written approval and an RMA number and must be shipped within five business days after the RMA is issued. The customer pays return shipping for an ordinary return. Tug & Tow provides prepaid return shipping for a verified damaged, defective, short, or incorrect shipment. We do not charge a restocking fee. See Shipping & Returns for eligibility, exclusions, and details.
Fit & compatibility
Fit & compatibility
Review the product title, description, images, dimensions, part numbers, and manufacturer details before purchase. For fit-sensitive items, confirm compatibility with your boat, RV, trailer, vehicle, or equipment.
Need help choosing?
Need help choosing?
Send us the product link or SKU, plus details about your boat, RV, trailer, vehicle, or project. We will help you narrow down the right option when product fit is not obvious.
