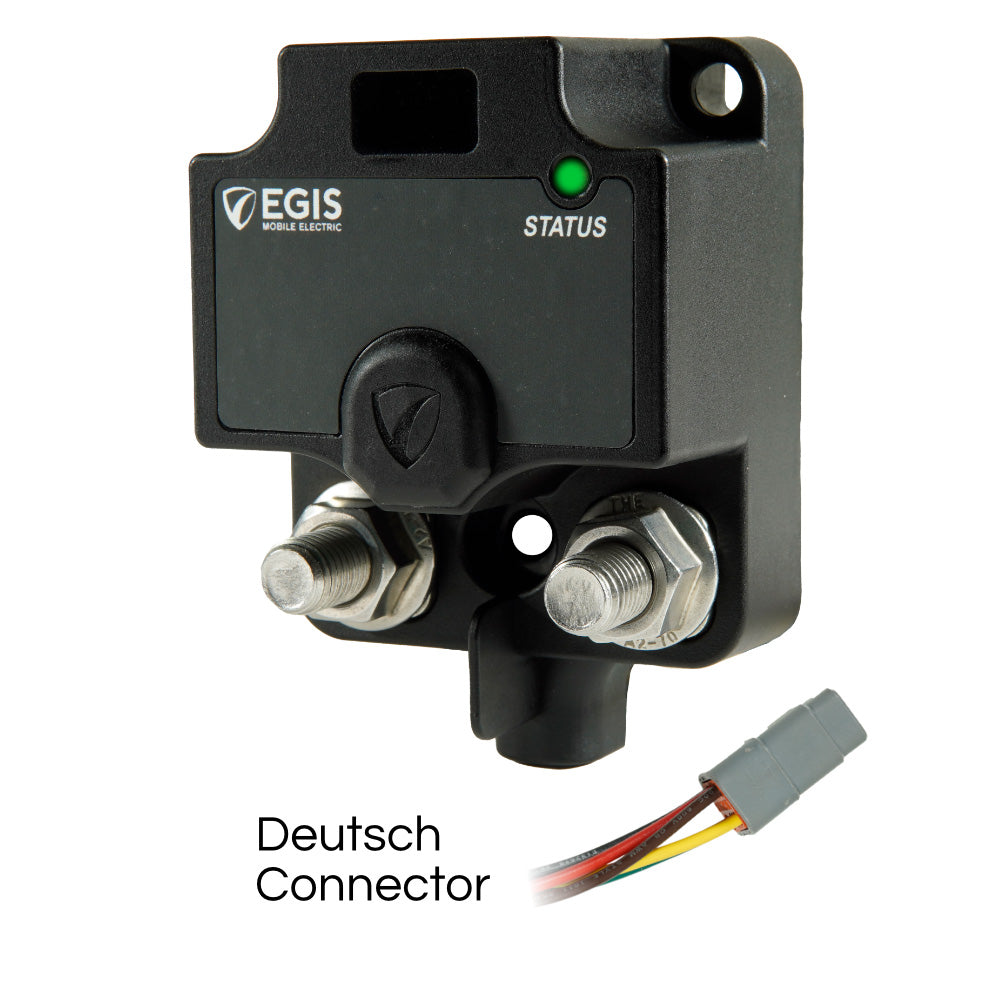

Egis Mobile Electric XD Single Flex 2 ACR-Relay, 500A, 8-36VDC

Optimize your marine or mobile electrical system with the Egis Mobile Electric XD Series Single Flex 2 ACR-Relay. Engineered for efficiency and durability, this advanced bi-stable relay significantly reduces mounting space and weight, making it ideal for compact installations. It intelligently manages battery isolation and charging across 2 or 3 battery systems, effectively eliminating dead-start batteries by sharing charge and isolating when no sources are present. With bullet-proof construction sealed to IP67/IP6K9K standards, this relay ensures reliable performance in the harshest environments. Upgrade your power management for superior reliability and integration today.

In the Box:

• Egis XD Series Single Flex 2 ACR-Relay
• Protective Terminal Cover
• 40 Circuit Weatherproof Label Sheet
• Stainless Steel Mounting Hardware

Key Benefits & Specifications:

• Compact & Lightweight Design: Achieves a 35-75% reduction in mounting space and product weight, optimizing installation flexibility.
• Extreme Durability: Robust construction sealed to IP67/IP6K9K standards, with high-temperature electronics, ensures long-term reliability in demanding marine and mobile conditions.
• High Current Capacity: Rated for 500 Amps continuous current and 1500 Amps cranking current, capable of handling significant power demands.
• Wide Voltage Compatibility: Operates reliably across an 8-36 VDC voltage range, supporting both 12V and 24V electrical systems.
• Advanced Battery Management: Supports 2 or 3 battery systems, ensuring optimal charging and isolation to prevent dead-start situations.
• Ultra-Low Power Draw: Features a minimal off-state current draw of just 1.3 mA, preserving battery life when not in use.
• Flexible Programmability: Simple dip switch programmability allows customization of relay functions to suit specific application requirements for OEMs and installers.
• Extended Lifespan: Boasts a mechanical switching life of 1,000,000 cycles for dependable, long-term operation.
• Integrated Ventilation: High-quality Gore-Tex vents regulate internal device pressure, preventing moisture entry and enhancing product longevity.
• Visual Status Indicator: An easy-to-see front-facing LED provides clear visual device status, with a remote LED replicating the local display.

Compatibility & Pairings:

• Wire-for-wire compatible with Blue Sea ML-solenoid and ML-remote battery switch products, simplifying upgrades and replacements.
• Plug-and-play compatible with legacy competitor products, featuring DTM/ATM connector pins for broad system integration.
• Expandable with link and cross-link busbars to additional single, dual, or triple XD relays for comprehensive power solutions.
